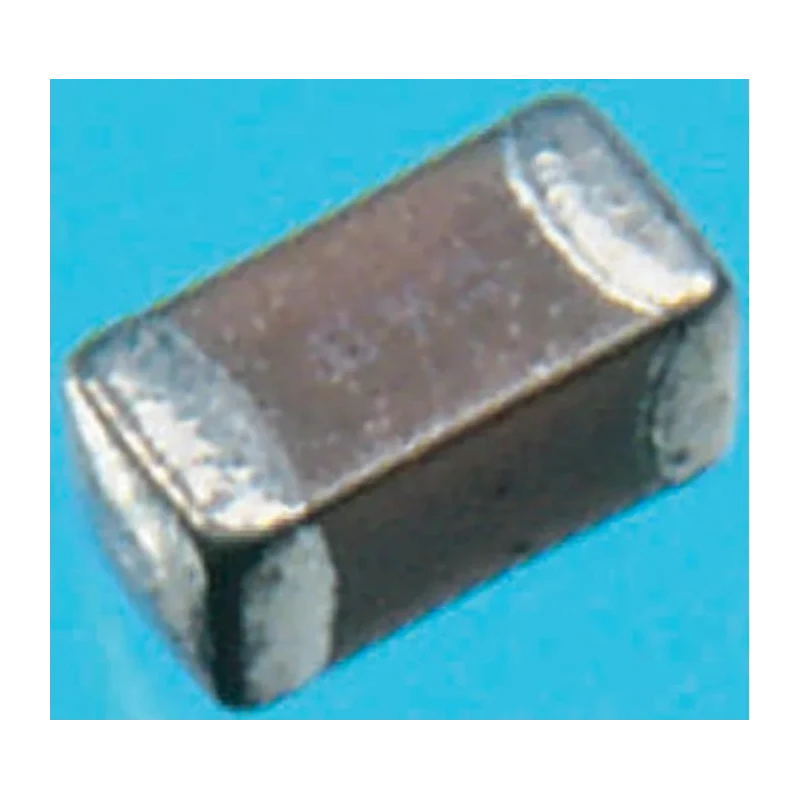

KEMET Multilayer Ceramic Capacitor 390 nF 16V dc Surface Mount X7R Dielectric ±10 % 0603 Case C Series C0603C394K4RACTU

KEMET C0603C394K4RACTU is a multilayer ceramic capacitor featuring a capacitance of 390 nF and a voltage rating of 16V dc, designed for surface mount technology (SMT) applications. Utilizing the X7R dielectric, it operates effectively within a temperature range of -55°C to 125°C, providing stable electrical characteristics for demanding environments.

The capacitor comes in a compact 0603 package with dimensions of 1.6mm (length) by 0.8mm (width) by 0.8mm (height), constructed using a stacked internal design which enhances performance and reliability. Its solder termination type and tape & reel packaging facilitate automated assembly on printed circuit boards (PCBs), optimizing manufacturing efficiency.

Compliant with industry standards such as EIA 481, EIA 624, IPC-7351, J-STD-020, and EIA 556, this component is built for automotive and industrial use cases where robustness is critical. The device exhibits low equivalent series resistance (ESR) and inductance (ESL), offering high ripple current capability and superior filtering properties.

This non-polar device minimizes installation errors and supports applications including critical timing circuits, filtering, bypassing, transient voltage suppression, pulse circuits, and energy storage within automotive under-hood and in-cabin systems.

Finished with 100% pure matte tin plating on terminations, the capacitor ensures excellent solderability and long-term reliability. Its Class I suppression classification further underscores its stable dielectric behavior.

Capacitance value of 390 nF with ±10% tolerance. Voltage rating of 16V dc and maximum operating temperature of 125°C. Compact 0603 package size with 1.6 mm length and 0.8 mm width. Stacked construction and solder termination for surface mounting.

Tape and reel packaging suitable for automated assembly. Meets major standards including EIA 481, EIA 624, IPC-7351, J-STD-020, and EIA 556. Non-polar design suitable for critical automotive and industrial circuit applications.

High ripple current capability with low ESR and ESL. 100% matte tin-plated termination finish for superior solderability. Class I dielectric and X7R dielectric material for temperature stability.

This KEMET multilayer ceramic capacitor is ideal for automotive, industrial, laboratory, electronic manufacturing, and HVAC applications requiring reliable passive components. Explore more about Multilayer Ceramic Capacitors on EnvMart for advanced electronic component solutions.
