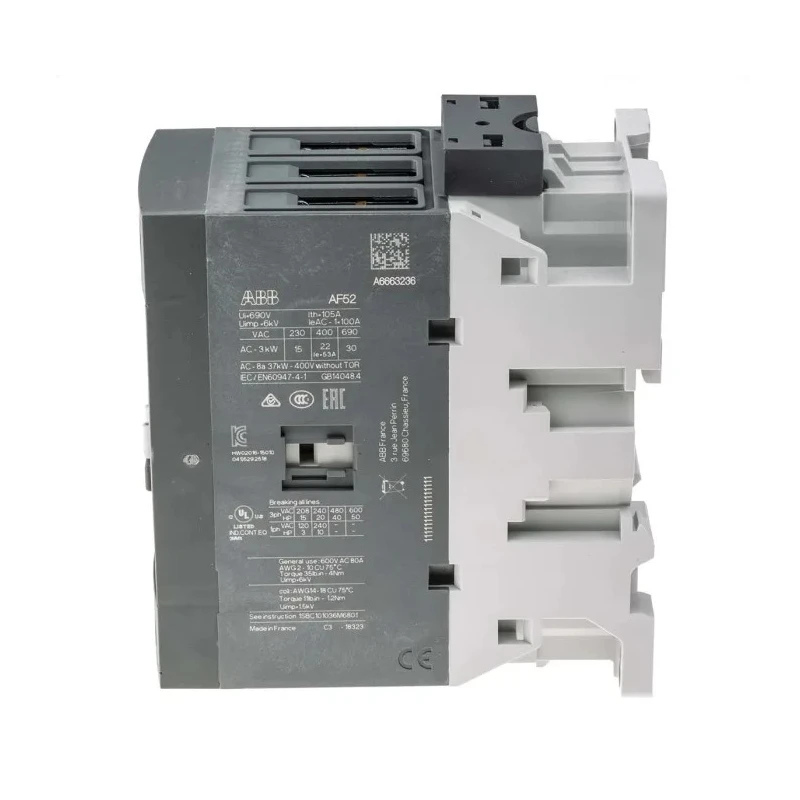

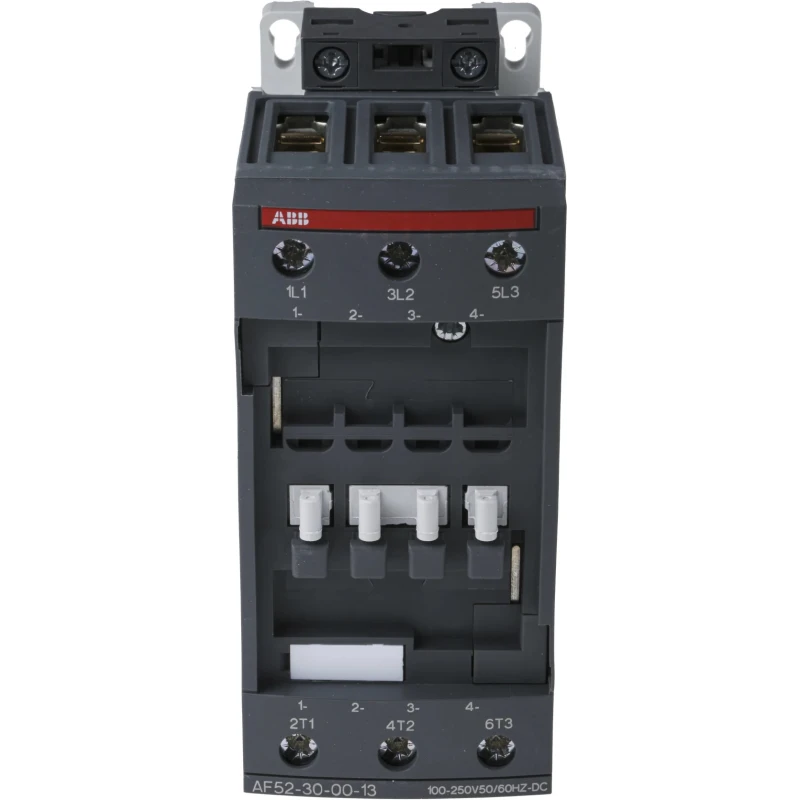

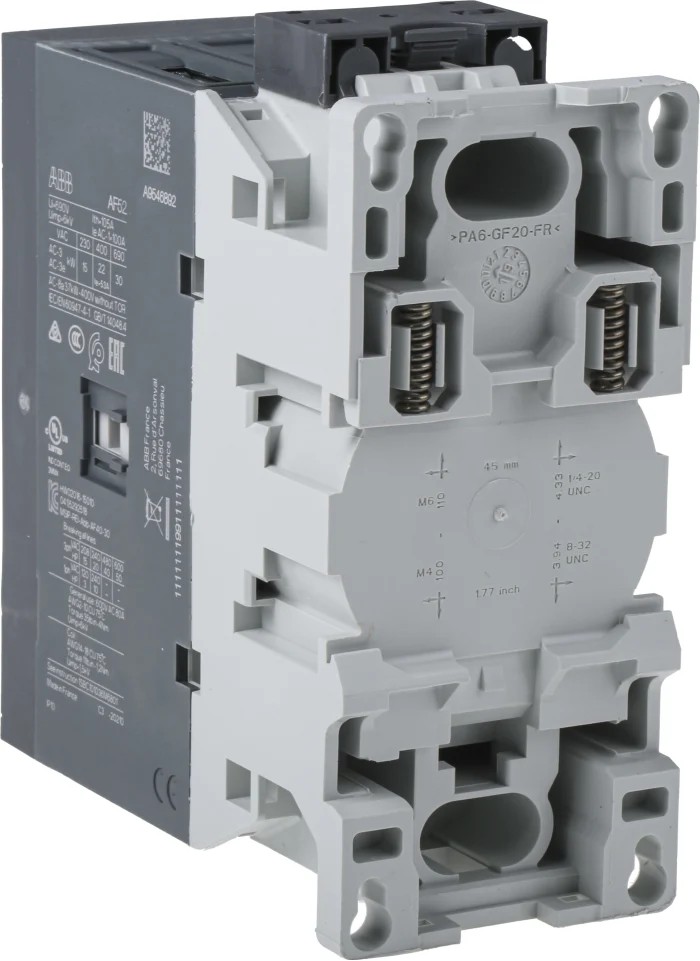

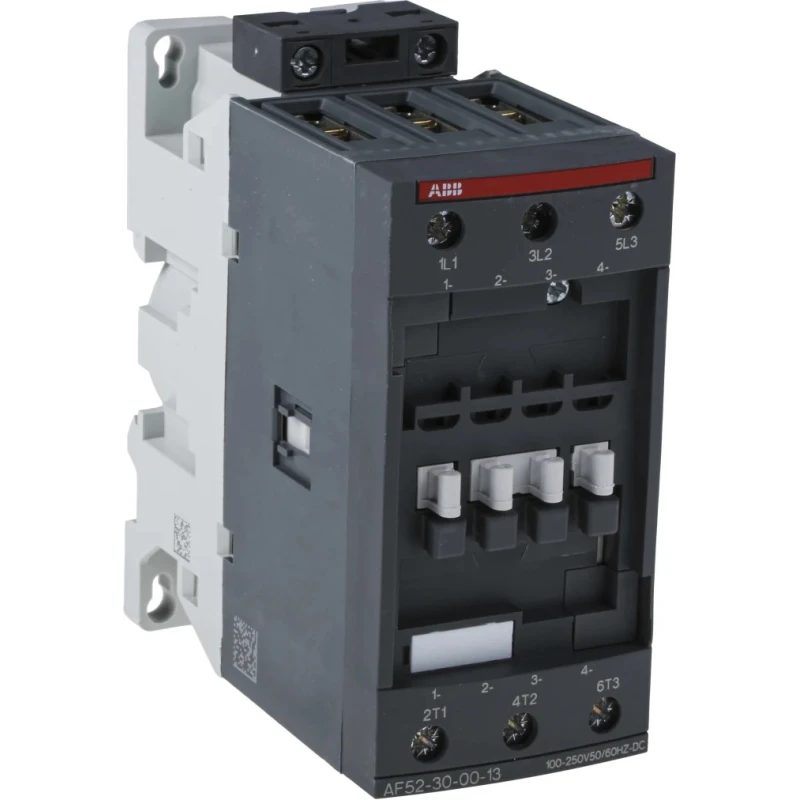

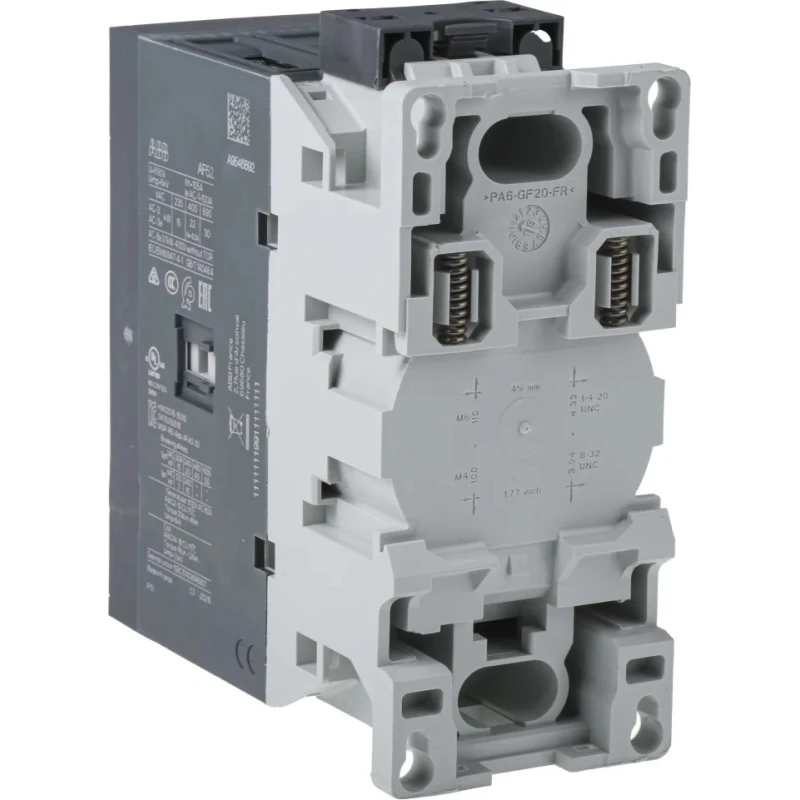

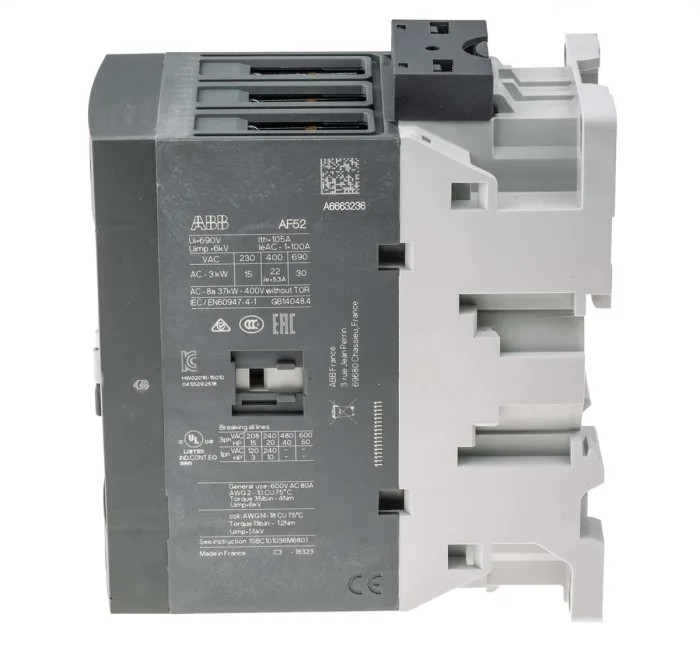

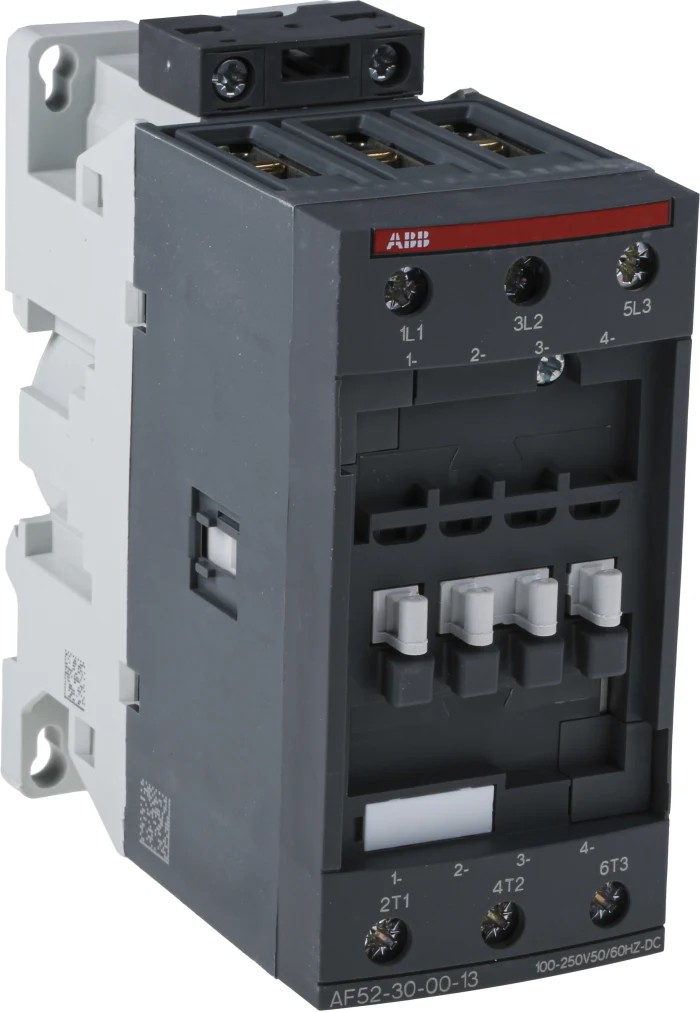

ABB AF52 Contactor with 230V AC Coil, 3-Pole, 100 A, 22 kW Power Rating, 3 NO Contacts, 690V AC Contact Voltage AF52



Category Contactor Brand ABB Condition New

Specifications

Country of Origin	India
Brand	ABB
Function	Capacitor Switching, Motor Control
Length	55mm
Model	AF52
Depth	111mm
Width	125.5mm
Mount Type	DIN Rail
Series	AF52
Power Rating	22kW
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Terminal type	Screw
Number of Poles	3
Standards/Approvals	CCC, CSA, EAC, IEC, RoHS, UL
Contact Voltage	690V ac
Coil Voltage	230V ac
Normal State Configuration	3 NO
Contact Current	100A
Operational Current Ie	52A
Control Circuit Voltage Uc	250V
Contactor Application	Capacitor Switching, Motor Control
Pole and Throw Configuration	3P

Key Features

Equipped with a 230V AC electromagnetic coil for precise contact switching.
Handles a maximum contact voltage of 690V AC with 3 Normally Open contacts.
Rated power handling of 22 kW suitable for demanding electrical circuits.
Mounts easily on DIN rails offering quick and secure installation.
Designed for mechanical switching at 3,600 cycles per hour for industrial reliability.
Shock-resistant construction withstands vibration and 6kV impulse voltages.
Applicability in HVAC, robotics, and agricultural machinery control systems.
Operating temperature range from -40°C to 70°C for harsh environments.

Product Description

ABB AF52 contactor combines a 230V AC coil with a 3-pole configuration, rated for 100 A contact current and capable of switching 22 kW loads at 250V. This device is engineered for reliable motor control and capacitor switching in varied industrial and commercial applications.

Constructed to meet international standards including CCC, CSA, EAC, IEC, RoHS, and UL, it assures high performance and safety compliance. The contactor features a shock-resistant design with a rated impulse withstand voltage of 6kV to endure electrical surges and harsh operational conditions.

Installation is user-friendly via DIN rail mounting, facilitating integration into existing control panels. The screw terminal type offers secure and robust electrical connections for high-current circuits.

This AF52 series Contactor supports control circuit voltages up to 250V and operates effectively within a temperature range of -40°C to 70°C. Its compact dimensions (125.5mm wide, 111mm deep, 55mm long) make it suitable for space-constrained installations.

Mechanical switching frequency up to 3,600 cycles per hour enables dependable operation in fast-paced automation environments such as HVAC systems, robotics, and agricultural machinery control.

Equipped with a 230V AC coil for electromagnetic switching. Three-pole configuration with 100A contact current capacity. Rated for power loads up to 22 kW at 250V. Shock-resistant with 6kV impulse withstand voltage rating.

Mounts securely on industry standard DIN rails. Suitable for industrial automation, manufacturing, and infrastructure projects. Complies with CCC, CSA, EAC, IEC, RoHS, and UL certifications. Operates reliably from -40°C to +70°C ambient temperatures.

Screw type terminals ensure durable electrical connections.
