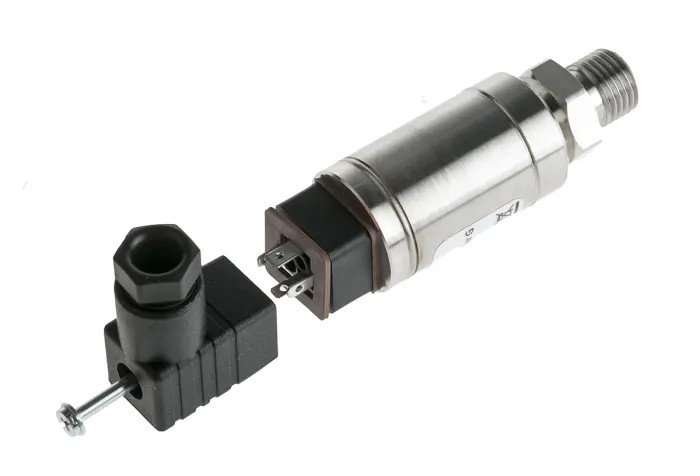

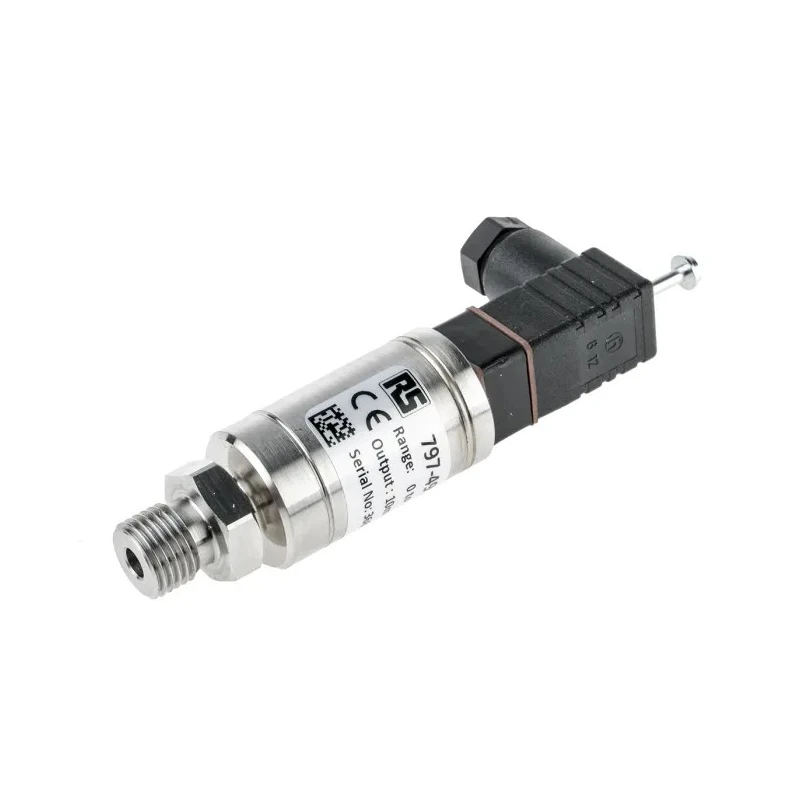

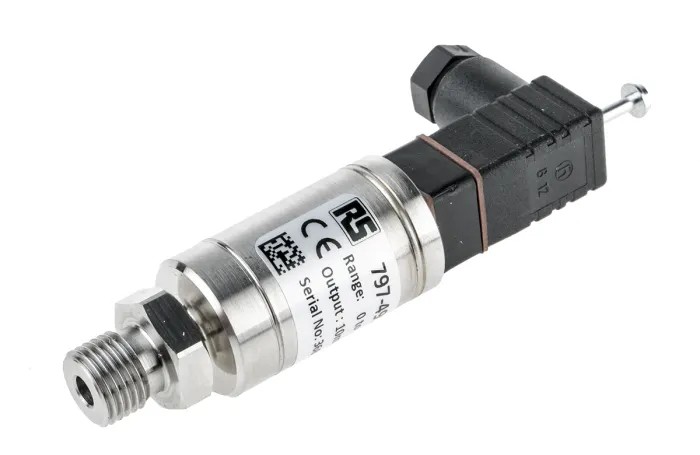

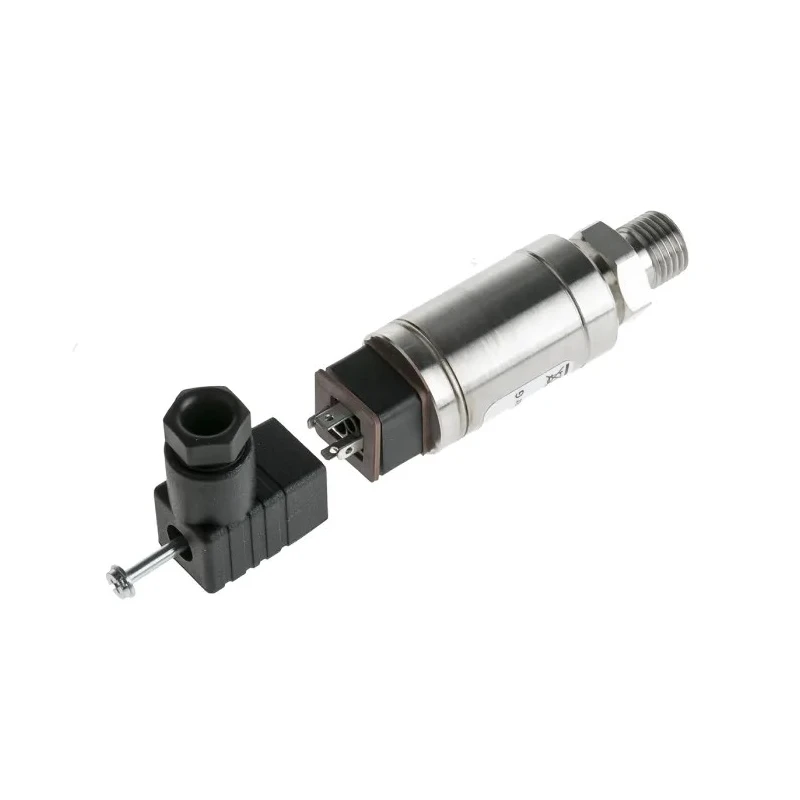

RS PRO Industrial Voltage Output Pressure Sensor 0 bar to 100 bar Accuracy ±0.25% Threaded Mount 9-32V 797-4995
Specifications
| Country of Origin | China |
|---|---|
| Accuracy | ±0.25 % |
| Brand | RS PRO |
| Model | 797-4995 |
| IP Rating | IP65 |
| Mount Type | Threaded |
| Housing Material | Stainless Steel |
| Output type | Voltage |
| Maximum Operating Temperature | 135°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | DIN |
| Standards/Approvals | CE |
| Maximum Pressure Measurement | 100bar |
| Minimum Pressure Measurement | 0bar |
| Maximum Supply Voltage | 32V |
| Minimum Supply Voltage | 9V |
| Pressure Reading Type | Relative |
| Media Measured | Air, Gas, Hydraulic Fluid, Liquid, Water |
| Gems Pressure Sensor, 0bar Min, 100bar Max, Analogue Output, Gauge ReadingBrand | Gems |
Key Features
- Uses piezo-resistive thick film ceramic sensor for high media compatibility.
- Features stainless steel 316L housing with Viton O-ring seals and ceramic diaphragm.
- Compact, rugged design with threaded BSP 1/4 mounting and M12 4-pin connector.
- Operates between -20°C and 135°C with IP65 rating for environmental protection.
- Suitable for air, gas, hydraulic fluids, liquids, and water pressure measurement.
- Compatible with supply voltage range of 9V to 32V DC.
- CE compliant ensuring adherence to safety and performance standards.
Product Description
RS PRO 797-4995 Pressure Sensor is an industrial-grade device designed for precise pressure measurement within 0 bar to 100 bar range using voltage output. This sensor incorporates a piezo-resistive thick film ceramic sensor housed in a stainless steel 316L body, ensuring excellent compatibility for media such as air, gas, hydraulic fluids, liquids, and water. Its compact and robust construction features Viton O-ring seals and a ceramic Al2O3 96% diaphragm providing durability and reliability in demanding industrial environments.
The sensor employs a threaded BSP 1/4 mount accompanied by an M12 4-pin connector, facilitating secure and versatile installation options. It operates effectively under a wide temperature range from -20°C up to 135°C and possesses an IP65 rating protecting against dust and water ingress. The device functions within a supply voltage window of 9V to 32V DC, making it suitable for varied industrial power setups. With an impressive operational life exceeding 100 million cycles and insulation resistance above 50M Ohms at 50 Vdc, this sensor exhibits high longevity and electrical safety.
Typical application areas include temperature testing facilities, process control, automation systems, and other industrial measurement tasks requiring accurate pressure data. The RS PRO brand upholds stringent quality assurance standards, making this sensor a trusted solution for engineers globally.
Uses piezo-resistive thick film ceramic sensor for enhanced media compatibility. Stainless steel 316L housing offers robust construction and corrosion resistance. Threaded BSP 1/4 mounting with M12 4-pin connector allows flexible installation.
Wide operating temperature range from -20°C to 135°C suits demanding environments. IP65 rated for dust and water protection ensures reliable field performance. Works with air, gas, hydraulic fluid, liquid, and water pressure applications.
CE compliant guaranteeing adherence to industrial safety standards. Lightweight design at approximately 100 grams.
RS PRO products provide dependable performance supported by rigorous testing and compliance. Explore our extensive catalog of sensors and automation components for industrial and manufacturing applications on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model measures pressure from 0 bar to 100 bar.
The accuracy of this sensor is ±0.25%.
It is suitable for measuring air, gas, hydraulic fluids, liquids, and water.
The sensor operates effectively between -20°C and 135°C.
It provides a voltage output.
It features a threaded BSP 1/4 mounting.
The sensor has an IP65 rating, providing protection against dust and water ingress.
It operates within a supply voltage range of 9V to 32V DC.
The housing is made of stainless steel 316L, and it features Viton O-ring seals and a ceramic diaphragm.
The weight of this unit is approximately 100 grams, but specific dimensions are not provided.
Yes, it is CE compliant, ensuring adherence to safety and performance standards.
Typical applications include temperature testing facilities, process control, and automation systems requiring accurate pressure data.
