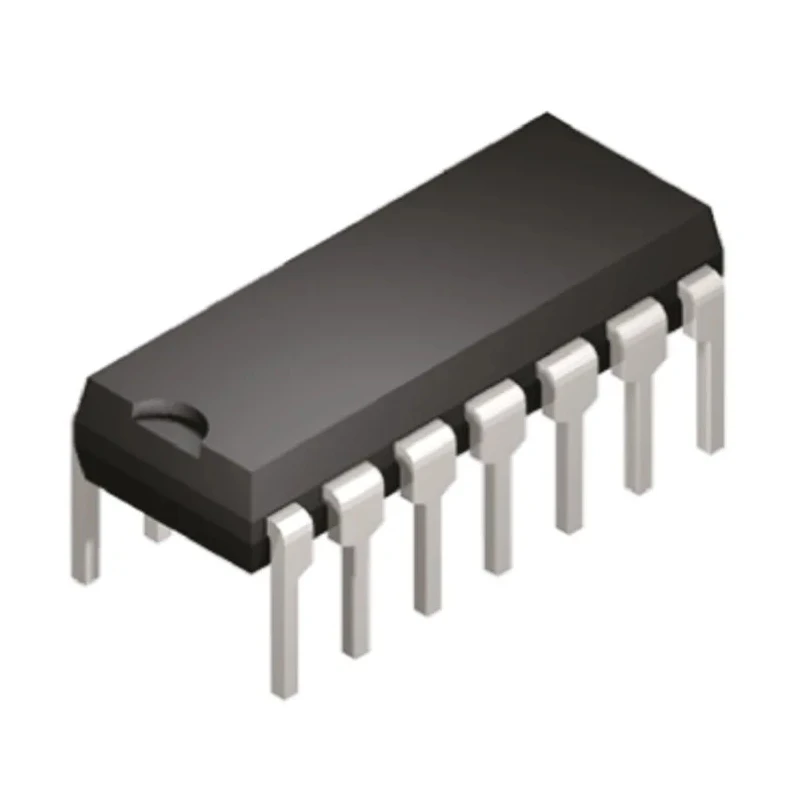

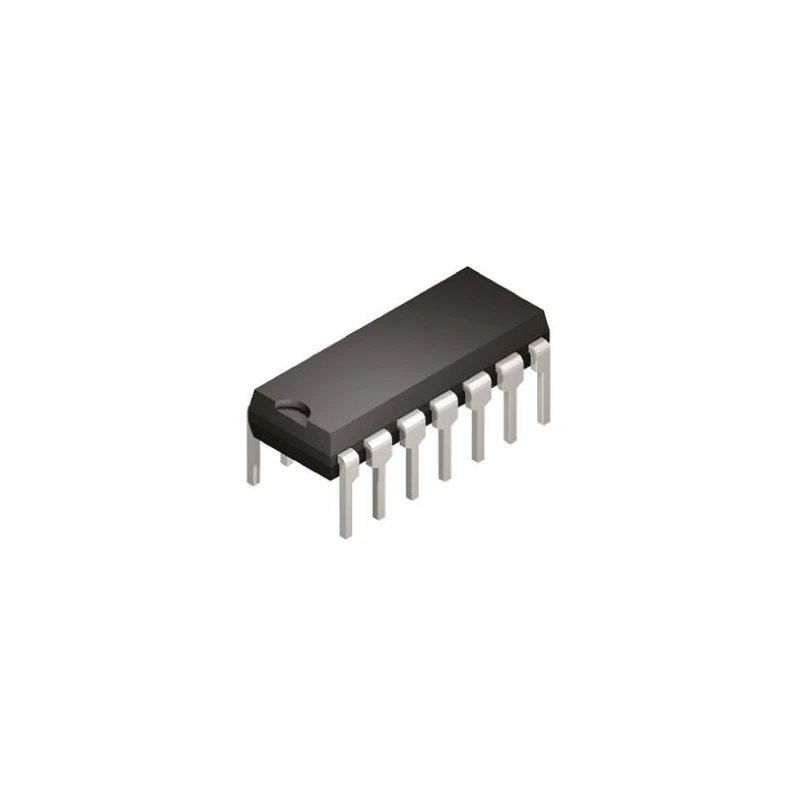

Microchip 8 bit PIC Microcontroller PIC16F1454-I/P 48 MHz 14kB FLASH 14-Pin PDIP

Microchip PIC16F1454-I/P 8-bit microcontroller is part of the PIC16F family, designed with a high-performance RISC architecture operating up to 48 MHz. It includes 14kB of FLASH program memory and 1.024kB of RAM, making it suitable for embedded applications requiring efficient memory management.

This microcontroller features a 14-pin PDIP package with through-hole mounting, ideal for easy integration into development and prototyping setups. It supports USB technology, enabling connectivity and communication with various devices.

The device contains 11 programmable I/O pins, 5 channel 10-bit analog-to-digital converters (ADCs), 5-bit digital-to-analog converters (DACs), two 8-bit timers, one 16-bit timer, two analog comparators, and enhances control capabilities through features like internal voltage reference and complementary waveform generator.

With an operating temperature range from -40°C to +85°C and maximum power dissipation of 800mW, this microcontroller is suitable for industrial, commercial, and consumer electronics applications. Its in-circuit serial programming (ICSP) facilitates easy firmware updates and debugging.

Extremely low power technology (XLP) enhances battery life, making it reliable for portable and energy-sensitive devices. The PIC16F1454 supports internal oscillator frequencies from 16 MHz to 32 kHz, providing flexibility in clock management.

The product adheres to RoHS standards, underscoring its compliance with environmental regulations. This microcontroller is widely used in embedded system designs, consumer electronics, USB interface applications, and industrial control systems.

Operates at a maximum clock frequency of 48 MHz for efficient processing. Built with an 8-bit PIC architecture ensuring versatile control applications. Includes 14 kB of FLASH program memory and 1.024 kB of RAM for reliable performance.

Features 11 programmable input/output pins and 5 channel 10-bit ADCs for analog signal processing. Supports USB technology and offers low power consumption with Extreme Low-Power (XLP) technology. Equipped with two timers, two analog comparators, and a 5-bit DAC for enhanced control functions.

Packages in a 14-pin PDIP with through-hole mount suitable for prototyping and development. Designed for use within operating temperatures ranging from -40°C to +85°C. Includes internal voltage reference, complementary waveform generator, and in-circuit serial programming.
