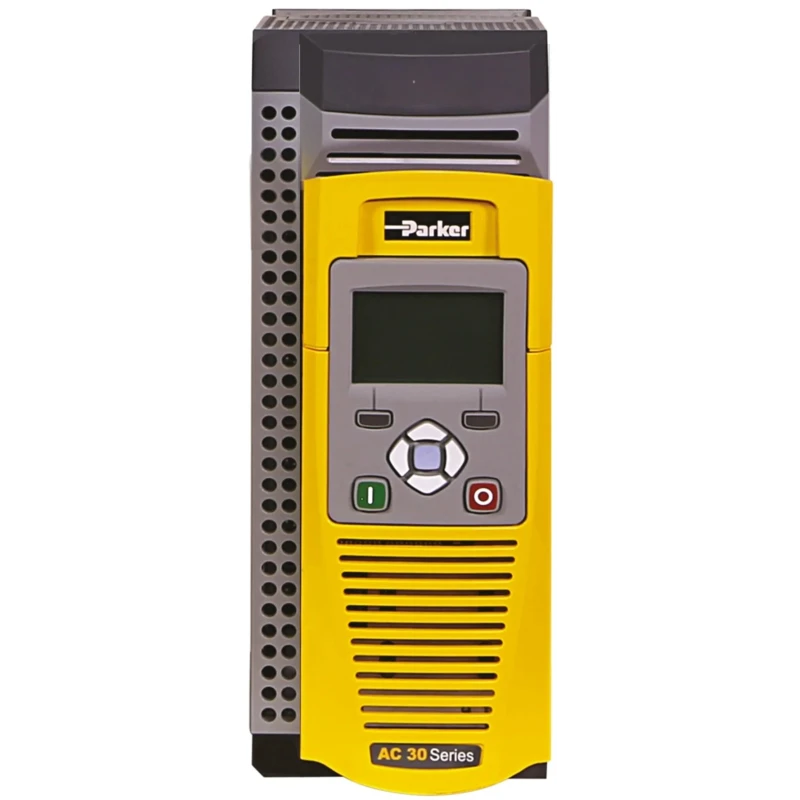

Parker Inverter Drive 11 kW 3 Phase Panel Mount AC30 Series 400V AC 23A AC30
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Parker |
| Model | AC30 |
| IP Rating | IP20 |
| Drive Type | Vector Control, Variable Frequency |
| Mount Type | Panel |
| Overall Length | 333mm |
| Series | AC30 |
| Overall Width | 125mm |
| Power Rating | 11kW |
| Maximum Operating Temperature | +45°C |
| Output Frequency | 1500Hz |
| Minimum Operating Temperature | 0°C |
| Interfaces | Ethernet TCP/IP as standard |
| Number of Phases | 3 |
| Maximum Output Current | 23A |
| Standards/Approvals | CE (EMC and LVD), cUL, DNV Marine Certification, Overvoltage Category III, Pollution Degree II, RoHS, UL |
| Overall Depth | 255mm |
| Minimum Supply Voltage | 400V ac |
| Better World Claim | Saves Energy |
| Compatible Motor Type | Induction Motor, Servo Motor |
Key Features
- Compatible with induction and servo motors for versatile use.
- Equipped with vector control and variable frequency drive capabilities.
- Supports Ethernet TCP/IP and various industrial fieldbuses for connectivity.
- Offers conformal coating for harsh environment protection including H2S exposure.
- Features removable terminal covers, spring clamp terminals, and isolated power stack cooling.
- Compact dimensions with overall length 333 mm, width 125 mm, and depth 255 mm.
- Complies with CE, cUL, DNV Marine Certification, RoHS, and UL standards.
- Operates safely within 0°C to +45°C temperature range with IP20 rating.
Product Description
Parker AC30 Inverter Drive model AC30 delivers 11 kW three phase power with a maximum output current of 23 A at 400 V AC, engineered for panel mount installation. This inverter drive enables precise control of induction and permanent magnet AC servo motors, using vector control and variable frequency techniques for energy-efficient motor management.
The device supports industrial Ethernet TCP/IP as standard and offers modular I/O expansions along with diverse popular industrial fieldbus connections, enhancing integration flexibility for complex automation systems.
It is conformally coated to withstand harsh environmental conditions, including classes 3C3 and 3C4 for hydrogen sulfide exposure. The inverter features spring clamp control terminal connections and isolated power stack cooling with removable fans to ensure reliable operation.
Its chassis allows installation either as panel mount or chassis mount, with removable terminal covers ensuring easy maintenance without drive removal. The footprint is space-efficient with overall dimensions of 333 mm length, 125 mm width, and 255 mm depth, featuring an IP20 ingress protection rating.
Safety and compliance are ensured with certifications such as CE (EMC and LVD), cUL, DNV Marine Certification, Overvoltage Category III, Pollution Degree II, RoHS, and UL standards. Suitable for various industrial applications including manufacturing automation, HVAC control, and water treatment systems, the AC30 Series enhances energy savings and system reliability.
Compatible with induction and servo motors for versatile use. Equipped with vector control and variable frequency drive capabilities. Supports Ethernet TCP/IP and various industrial fieldbuses for connectivity. Offers conformal coating for harsh environment protection including H2S exposure.
Features removable terminal covers, spring clamp terminals, and isolated power stack cooling. Compact dimensions with overall length 333 mm, width 125 mm, and depth 255 mm. Complies with CE, cUL, DNV Marine Certification, RoHS, and UL standards.
Operates safely within 0°C to +45°C temperature range with IP20 rating.
Packaged and manufactured in the United Kingdom, this inverter drive is suitable for industrial, laboratory, manufacturing, and HVAC applications requiring advanced motor control. Explore more Parker Inverter Drives and automation products on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Parker AC30 Inverter Drive has a power rating of 11 kW.
This model has a maximum output current of 23 A.
It operates safely within a temperature range of 0°C to +45°C.
It is compatible with induction motors and servo motors, providing versatile use.
The overall dimensions are 333 mm in length, 125 mm in width, and 255 mm in depth.
This inverter drive utilizes vector control and variable frequency drive capabilities.
The unit has an IP20 ingress protection rating.
It supports Ethernet TCP/IP as standard and various industrial fieldbus connections.
It complies with CE (EMC and LVD), cUL, DNV Marine Certification, RoHS, and UL standards.
It is designed for panel mount installation, but can also be chassis mounted.
The inverter drive features conformal coating for protection against harsh environments, including exposure to hydrogen sulfide.
The output frequency capability of this model is up to 1500 Hz.
