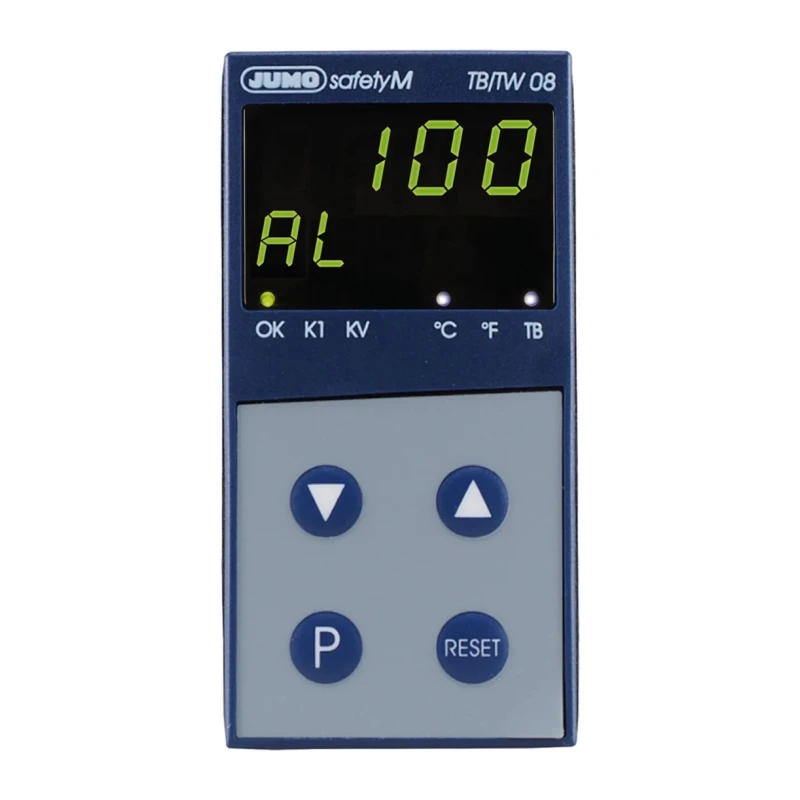

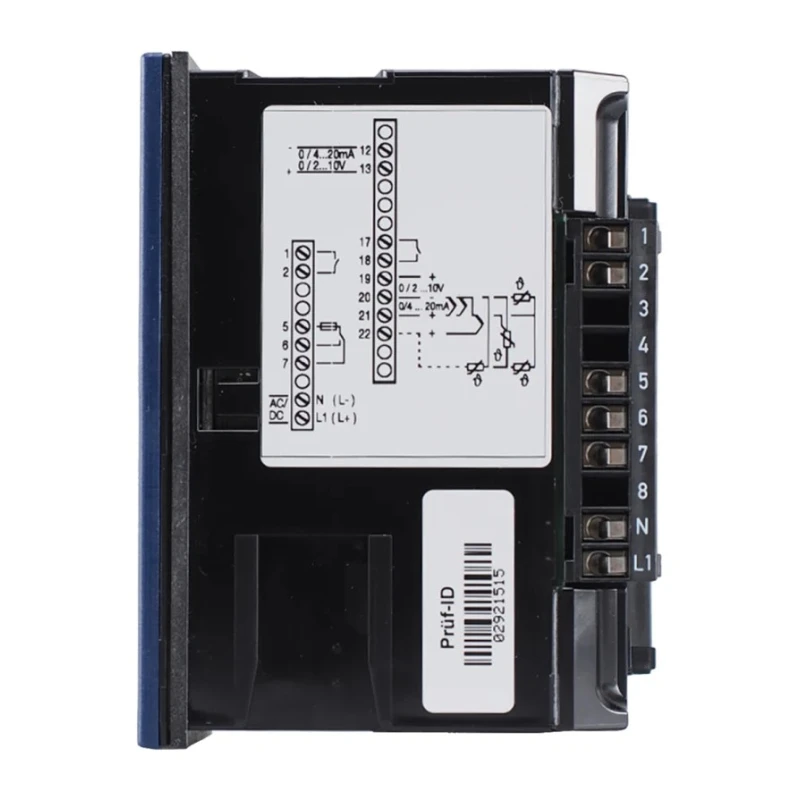

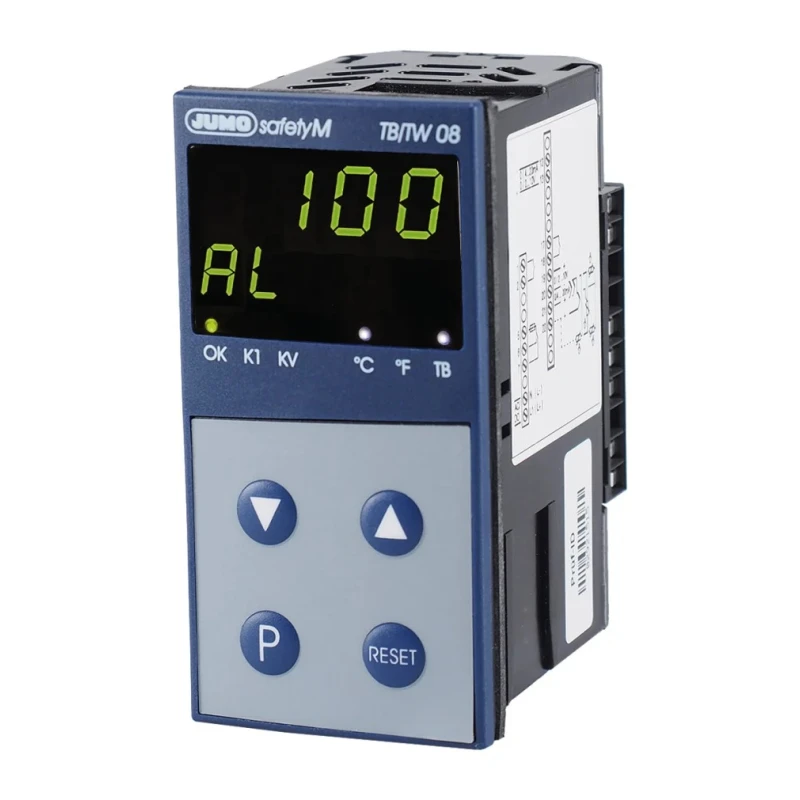

Jumo TB/TW 08 Panel Temperature Limiter 1 Input 2 Output 2 Relay 240V ac/dc On-Off 701170/8-0153-1001-25/000
Specifications
| Country of Origin | Germany |
|---|---|
| Display Type | Digital |
| Brand | Jumo |
| Model | 701170/8-0153-1001-25/000 |
| IP Rating | IP65 |
| Width | 48mm |
| Mount Type | Panel |
| Number of inputs | 1 |
| Output type | 2 Relay |
| Series | TB/TW 08 |
| Maximum Operating Temperature | 55°C |
| Control Type | On-Off |
| Minimum Operating Temperature | 0°C |
| Maximum Current | 3A |
| Number of outputs | 2 |
| Terminal type | Plug-in Screw Terminal |
| Maximum Voltage | 230V |
| Maximum Supply Voltage | 240V ac/dc |
| Panel Depth | 92mm |
Key Features
- Freely programmable temperature limitation device suitable for various sensor types.
- Equipped with 1 input and 2 outputs via relays for flexible control.
- Operates reliably with a maximum supply voltage of 240V ac/dc.
- Digital display and on-off control type allow straightforward operation.
- Durable panel mount design with IP65 front protection against dust and water.
- Supports internal and external unlocking and customizable alarm thresholds.
- Compatible with RTD probes, thermocouples, current and voltage signals.
- Compliant with DIN EN 60730-2-9, DIN EN 14597, and UL 60730-2-9 standards.
Product Description
Jumo 701170/8-0153-1001-25/000 TB/TW 08 Panel Temperature Limiter is a versatile and freely programmable temperature limitation device designed for industrial thermal process monitoring. Featuring 1 input that is configurable for RTD temperature probes, thermocouples, or current and voltage signals, this temperature limiter provides precise measurement and control for various industrial applications.
The device utilizes 2 relay outputs to manage control functions effectively. It supports on-off control type operation with a digital display for easy reading and configuration. Designed for panel mounting, it has a compact width of 48mm and panel depth of 92mm, making installation straightforward even in limited space panels.
The Jumo TB/TW 08 ensures durability and protection with an IP65-rated front, guarding against dust and water ingress. Its plug-in screw terminal accepts cables up to 2.5mm², facilitating secure and efficient wiring. The unit complies with DIN EN 60730-2-9, DIN EN 14597, and UL 60730-2-9 standards, underscoring its reliability and safety in industrial environments.
The temperature limiter offers a digital input filter with adjustable filter time constants and configurable pre-alarm settings either absolute or relative to the limit value. It supports internal and external unlocking, enhancing operational flexibility and safety.
This product is ideal for use in process control, industrial automation, HVAC systems, and other applications requiring accurate temperature monitoring and control. The robust panel mount design is suited for demanding environments in manufacturing, water treatment, laboratory instrumentation, and electrical panels.
Freely programmable temperature limitation device for diverse sensor inputs. 1 input and 2 relay outputs enable flexible thermal control applications. Robust panel mount with IP65 front protection for industrial usage. Digital display with on-off control for straightforward operation.
Complies with international safety and performance standards. Adjustable digital input filtering and pre-alarm configuration. Internal and external unlocking options for operational flexibility. Compact dimensions optimize panel space usage.
Made in Germany ensuring high quality and durability. Explore the full range of Jumo industrial Temperature Controllers and limiters at EnvMart for reliable and precise process control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features 1 input that can be configured for RTD temperature probes, thermocouples, or current and voltage signals.
The maximum supply voltage for the Jumo TB/TW 08 is 240V ac/dc.
It has 2 relay outputs for managing control functions effectively.
The operating temperature range for this device is from 0°C to a maximum of 55°C.
This unit operates using an on-off control type, allowing straightforward operation.
The panel width is 48mm and the panel depth is 92mm, making it suitable for installation in limited space panels.
It has an IP65 rating, providing protection against dust and water ingress.
The maximum current output for the Jumo TB/TW 08 is 3A.

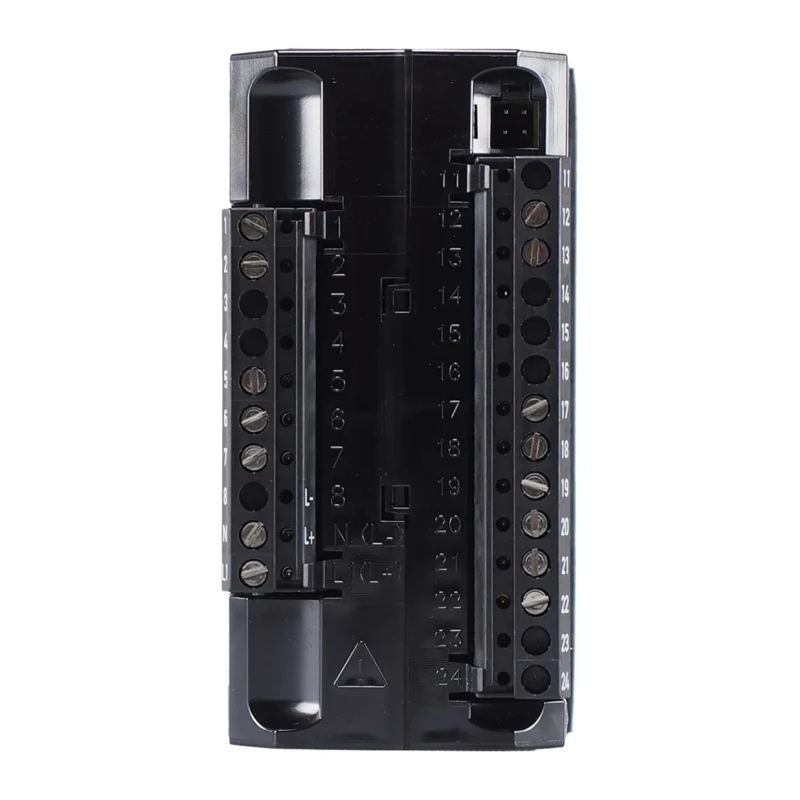

It features a plug-in screw terminal that accepts cables up to 2.5mm² for secure wiring.
This model complies with DIN EN 60730-2-9, DIN EN 14597, and UL 60730-2-9 standards.
It supports internal and external unlocking options, along with configurable pre-alarm settings.
This temperature limiter is suitable for process control, industrial automation, HVAC systems, and other applications requiring accurate temperature monitoring and control.
