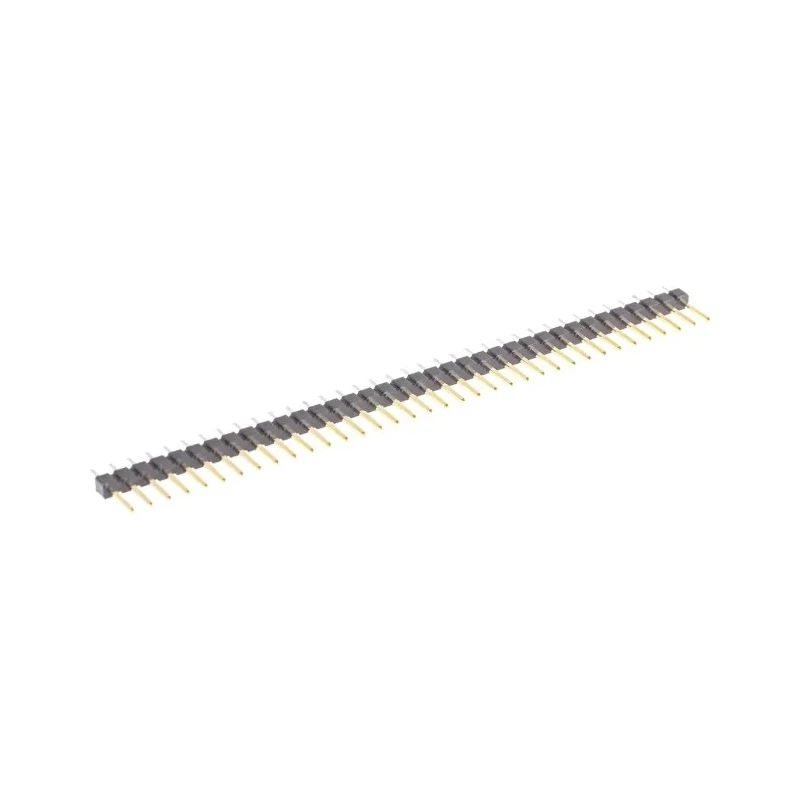

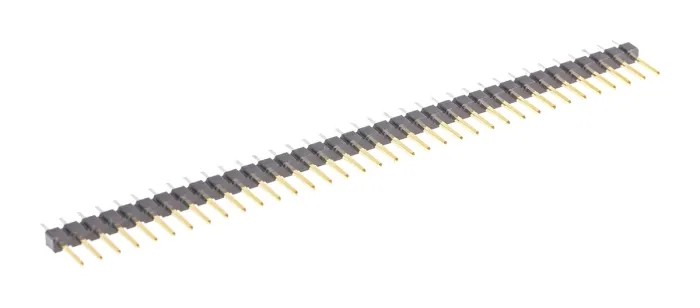

Amphenol Communications Solutions Bergstik Series Straight Through Hole Pin Header, 36 Contacts, 2.54 mm 77311-818-36LF
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1.5kV |
| Brand | Amphenol Communications Solutions |
| Orientation | Straight |
| Current | 3A |
| Model | 77311-818-36LF |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Standards/Approvals | CHINA RoHS, EU RoHS, REACH/SvHC |
| Contact Plating | Gold |
| Number of Contacts | 36 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.05mm |
| Mating Pin Length | 5.84mm |
Key Features
- Features a single row of 36 straight, unshrouded contacts for versatile application.
- Gold-plated phosphor bronze contacts ensure excellent conductivity and corrosion resistance.
- Thermoplastic housing supports reflow soldering and resists high temperatures.
- Operates reliably from -65°C up to 125°C for demanding environments.
- Through hole mount type provides secure PCB fixation and robust mechanical stability.
- Compatible with various female connectors including Dubox, Quickie IDC receptacles, and PV series crimp housings.
- Mating pin length is 5.84 mm and tail pin length is 3.05 mm for secure connector engagement.
- Designed with standoffs to allow efficient removal of solder contamination during assembly.
Product Description
Amphenol Communications Solutions 77311-818-36LF Bergstik Series Pin Header is a high-quality PCB connector with 36 gold-plated contacts arranged in a single straight row with a 2.54 mm pitch. Its thermoplastic housing is designed to withstand reflow soldering temperatures and offers excellent durability in industrial and commercial electronic assemblies.
The pin header supports a current rating of 3A and a voltage rating up to 1.5 kV, making it suitable for a broad range of electronic applications that require reliable electrical connections. The phosphor bronze contacts plated with gold ensure optimal conductivity and long-term resistance to corrosion.
Operating temperature ranges from -65°C to 125°C, allowing usage in varied environmental conditions. Its through hole mount type and unshrouded contact design facilitate easy soldering and inspection while providing mechanical robustness on the PCB.
This connector is widely used in board-to-board and wire-to-board systems. It mates with various female connectors such as the Dubox series receptacles, Quickie IDC receptacles, and PV series crimp housings. The innovative design includes standoffs to prevent solder contamination, enhancing reliability during manufacturing.
Single row of 36 contacts, straight orientation, unshrouded design. Gold plated phosphor bronze contacts for excellent electrical performance. Thermoplastic housing compatible with reflow soldering processes. High operating temperature tolerance from -65°C to 125°C.
Through hole mount for strong PCB attachment. Contact and mating pin lengths of 3.05 mm and 5.84 mm respectively. Supports board-to-board and wire-to-board connections in electronics applications. Complies with CHINA RoHS, EU RoHS, and REACH/SvHC environmental standards.
This Bergstik series pin header is ideal for use in industrial electronics, communication devices, and manufacturing testing equipment. Its combination of durability, performance, and versatility makes it a dependable choice for PCB connectivity solutions.
Explore more electronic components and connectors in our comprehensive category on EnvMart for your next assembly or design project.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a voltage rating of up to 1.5 kV, making it suitable for various electronic applications requiring reliable electrical connections.
The current rating for this pin header is 3A, allowing it to handle a significant amount of electrical current in applications.
The contacts are arranged with a pitch of 2.54 mm, which is standard for many PCB connectors.
It operates reliably within a temperature range of -65°C to 125°C, suitable for demanding environments.
The contacts are made from phosphor bronze and are gold-plated to ensure excellent conductivity and corrosion resistance.
This model features a total of 36 contacts arranged in a single row.
It utilizes a through hole mount type, providing secure fixation on PCBs and mechanical stability.
It is compatible with various female connectors including Dubox series receptacles, Quickie IDC receptacles, and PV series crimp housings.
The mating pin length is 5.84 mm, ensuring secure engagement with compatible connectors.
The tail pin length is 3.05 mm, which aids in soldering to the PCB.
It complies with CHINA RoHS, EU RoHS, and REACH/SvHC environmental standards, ensuring it meets regulatory requirements.
This pin header is designed for board-to-board and wire-to-board connections in industrial electronics and communication devices.
