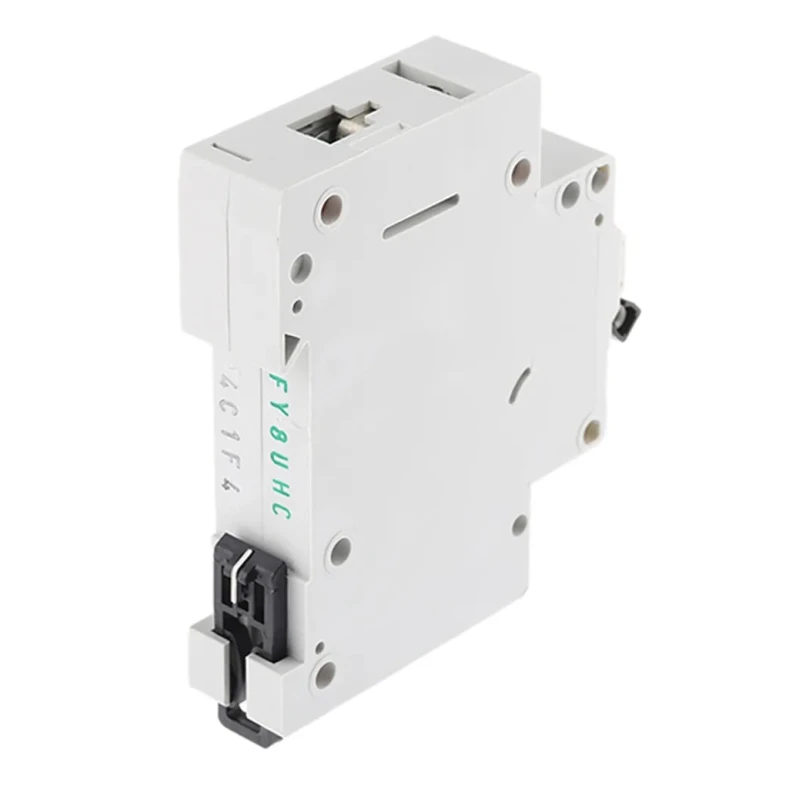

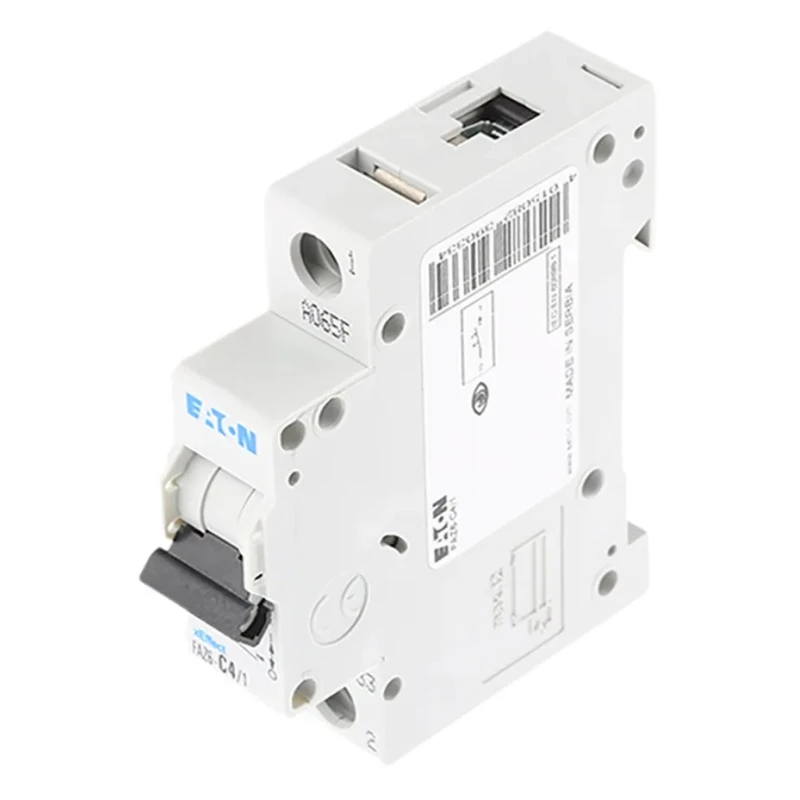

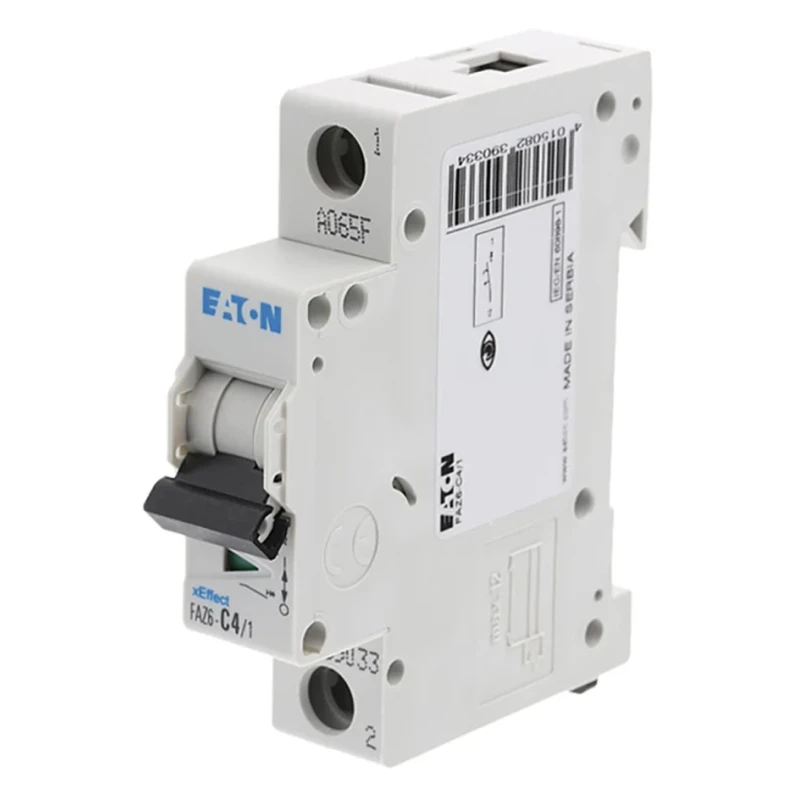

RS PRO xEffect Miniature Circuit Breaker 1-Pole 4A Type C 400V AC 6kA Breaking Capacity 239033 FAZ6-C4/1
Specifications
| Country of Origin | India |
|---|---|
| Range | xEffect |
| Brand | RS PRO |
| Model | 239033 FAZ6-C4/1 |
| Depth | 62mm |
| IP Rating | IP20 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Current Rating | 4A |
| Series | xEffect |
| Terminal type | Screw |
| Breaking Capacity | 6kA |
| Number of Poles | 1 |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
| 1 pole type C circuit breaker,10kA 4ABrand | Moeller |
| Eaton MCB1P, 4A Curve CBrand | Moeller |
Key Features
- Operates at 400V AC with a breaking capacity of 6kA.
- Type C tripping characteristics with instantaneous trip at 5 to 10 times rated current.
- Compact size with dimensions 62mm depth and 17.5mm width for DIN rail mounting.
- Features a toggle switch for easy reset and status indication.
- IP20 rated for touch protection ensuring safe handling.
- Wide operating temperature range suited to various environments.
- Uses screw terminal type for secure electrical connections.
Product Description
The Eaton 239033 FAZ6-C4/1 xEffect Miniature Circuit Breaker is a high-quality, reliable component designed to protect electrical circuits from overloads and short circuits. This 1-Pole breaker has a current rating of 4A and is categorized under Type C tripping characteristic, meaning it trips instantaneously between 5 to 10 times the rated current, which makes it ideal for motors and lighting circuits.
It operates effectively at a rated AC voltage of 400V and boasts a breaking capacity of 6kA, providing robust protection against potential electrical faults. The breaker is designed to be mounted on a DIN rail, occupying minimal space with a compact build measuring 62mm in depth and 17.5mm in width, making it suitable for dense panel installations.
The front toggle switch clearly indicates the contact position, allowing quick troubleshooting and easy reset after a fault has been cleared. Its thermal magnetic tripping mechanism combines a bimetallic strip for overload protection and an electromagnetic trip for short circuit protection.
The screw terminal type ensures secure and reliable electrical connectivity while the IP20 rating of the enclosure safeguards against accidental finger contact, enhancing user safety during operation and maintenance. The device is optimized for use in demanding industrial, commercial, and residential electrical distribution systems, capable of operating within a wide temperature range from -25°C to +75°C.
Operates with 1 pole and rated current of 4 amps. Type C trip characteristic suitable for inductive loads like motors. 6kA short circuit breaking capacity ensures safety under fault conditions. Compact DIN rail mounting saves panel space.
Toggle switch for quick operation and status indication. Thermal magnetic mechanism provides dual protection against overloads and short circuits. IP20 touch-proof enclosure for operator safety.
This Miniature Circuit Breaker is widely used across industrial automation, manufacturing, electrical distribution panels, and commercial buildings to enhance system safety. Eaton's xEffect series, formerly branded as Moeller, is recognized for durability and compliance with electrical safety standards.
Explore more high-quality Eaton electrical protection devices and accessories at EnvMart for your automation and electrical panel needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a breaking capacity of 6kA, providing robust protection against electrical faults.
This model operates at a rated AC voltage of 400V.
It features Type C tripping characteristics, which means it trips instantaneously between 5 to 10 times the rated current, suitable for inductive loads like motors.
It has a compact size with a depth of 62mm and a width of 17.5mm, designed for DIN rail mounting.
It features a toggle switch for easy reset and status indication after a fault has been cleared.
This unit is designed for DIN rail mounting, allowing for space-efficient installation in electrical panels.
The current rating for this miniature circuit breaker is 4A.
It uses a screw terminal type for secure electrical connections.
The enclosure has an IP20 rating, providing touch protection to ensure safe handling.
It operates effectively within a wide temperature range from -25°C to +75°C.
It is widely used in industrial automation, manufacturing, electrical distribution panels, and commercial buildings to enhance system safety.
It employs a thermal magnetic tripping mechanism, combining a bimetallic strip for overload protection and an electromagnetic trip for short circuit protection.
