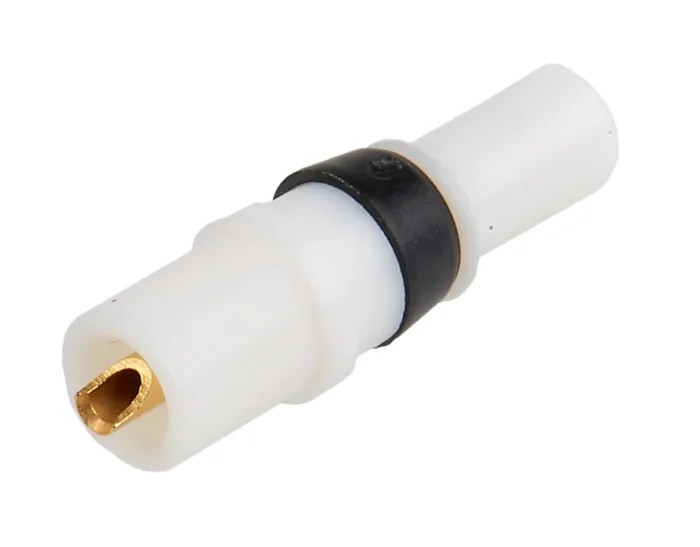

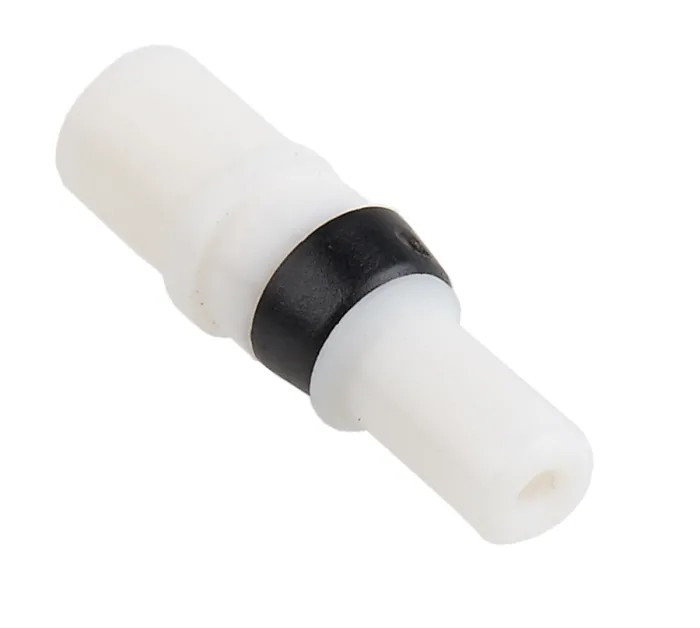

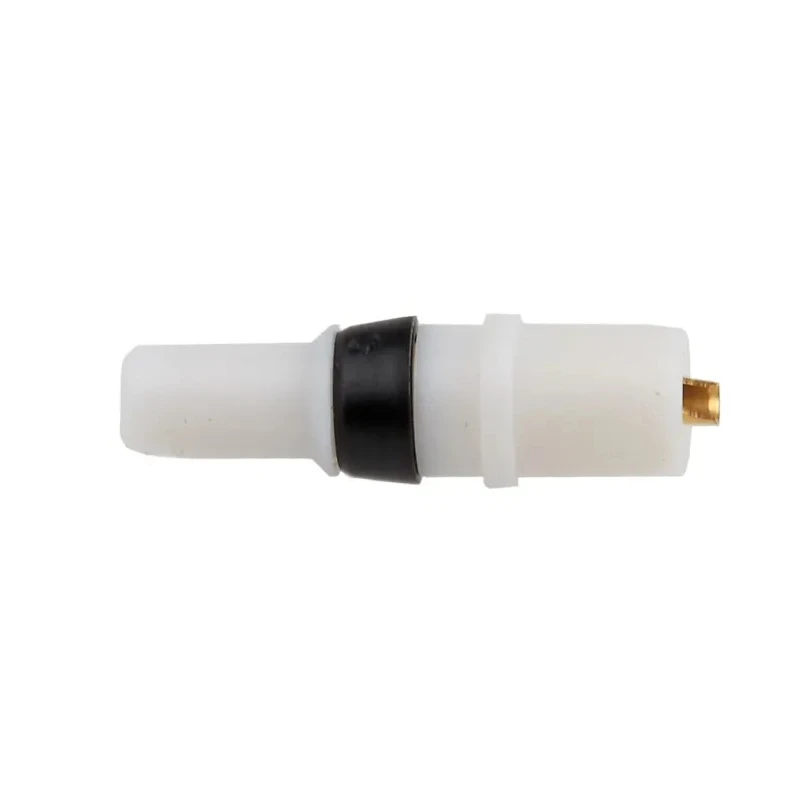

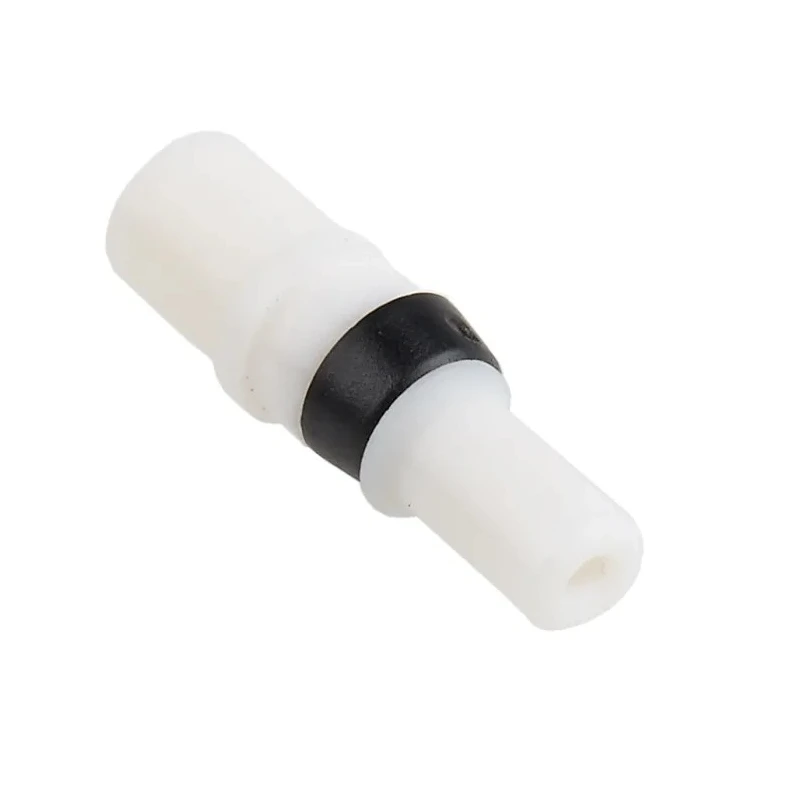

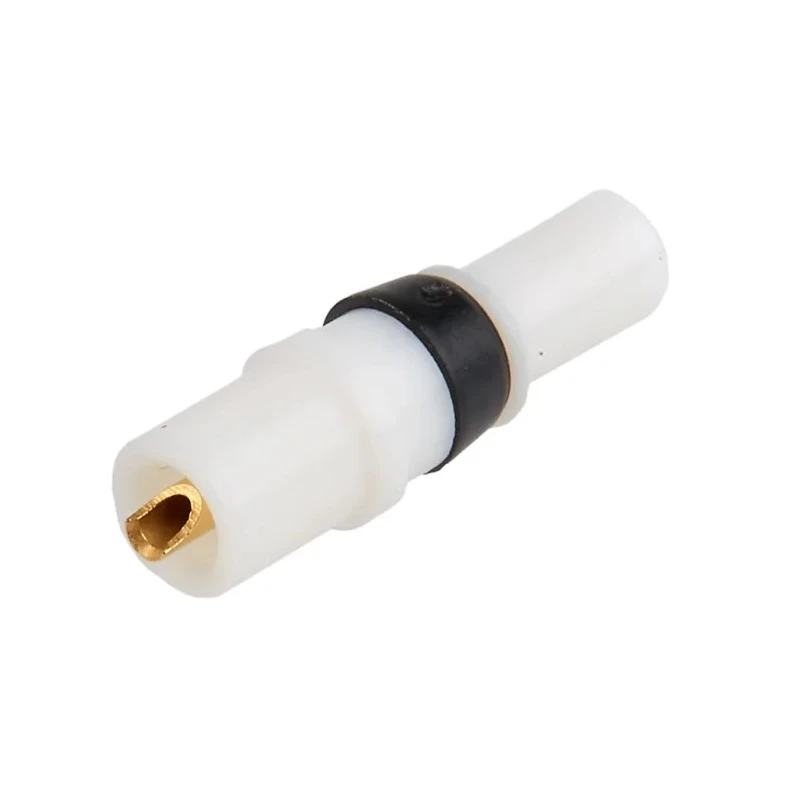

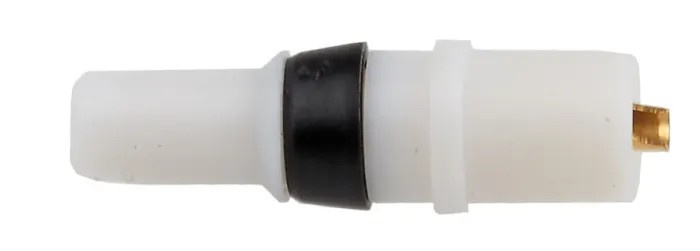

RS PRO Straight Coaxial Female Gold Copper Alloy Backplane Connector Contact 309-4216
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | RS PRO |
| Orientation | Straight |
| Current | 2A |
| Model | 309-4216 |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | RS PRO |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Cable Type | Coaxial |
| Minimum Operating Temperature | -55°C |
| For Use With | DIN41612 Type M Male Connector |
| Contact Plating | Gold |
| Maximum Contact Resistance | 3mΩ |
Key Features
- This contact features a straight orientation for secure mounting.
- It is a female connector designed for coaxial cable applications.
- Gold plating on the contact ensures excellent conductivity and corrosion resistance.
- The copper alloy material provides durability and optimal electrical performance.
- Operates reliably within a temperature range of -55°C to 125°C.
- Supports current up to 2 amperes with maximum contact resistance of 3 milliohms.
- Termination is by solder, enabling solid electrical connection.
- RoHS compliant, suitable for industrial, commercial, and military use cases.
Product Description
RS PRO 309-4216 is a high-quality Straight Coaxial Female Gold Copper Alloy Backplane Connector Contact manufactured in Germany. Specifically designed for DIN41612 Type M Male Connectors, this component offers reliable signal and power transmission from printed circuit boards in computer and electronic systems.
The connector is engineered with a straight mount orientation to facilitate easy integration into DIN connector shells, including high voltage and coaxial types. Its female coaxial design, combined with gold-plated copper alloy contacts, promotes superior conductivity and resistance to corrosion and wear.
Operable within temperatures from -55°C to +125°C and rated for currents up to 2 A, this backplane connector contact minimizes signal interference by using cable mounting and a snap-fit contact mechanism, ensuring secure attachment. The solder termination type guarantees robust and durable electrical connections.
This product is compliant with RoHS standards, endorsing safe and environmentally friendly use. Its adherence to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards provides added protection against electrostatic discharge, critical for sensitive electronic components in industrial, military, HVAC, and manufacturing environments.
This contact is suitable for various backplane connector shells with DIN41612 Type M configurations. The gold plating enhances electrical conductivity and durability. The snap-fit design improves connection stability and mounting ease.
Wide operating temperature range supports challenging application conditions. Low contact resistance ensures minimal signal loss and power dissipation. Universal use in commercial, military, and industrial electronic assemblies.
Manufactured under RS PRO’s stringent quality controls for reliability. Explore more products in the Backplane Connector Contact category available on EnvMart for comprehensive electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 2 amperes.
It operates reliably within a temperature range of -55°C to 125°C.
The contact is made of copper alloy and features gold plating for enhanced conductivity and corrosion resistance.
This model utilizes a solder termination type, ensuring a solid electrical connection.
It is designed for use with DIN41612 Type M Male Connectors.
The maximum contact resistance is 3 milliohms.
This contact is manufactured in Germany.
The connector features a straight orientation for secure mounting.
It is suitable for industrial, commercial, and military use cases, particularly in electronic assemblies.
It is RoHS compliant and adheres to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards for electrostatic discharge protection.
The connector minimizes signal interference by using cable mounting and a snap-fit contact mechanism for secure attachment.
The gold plating enhances electrical conductivity and provides resistance to corrosion and wear.
