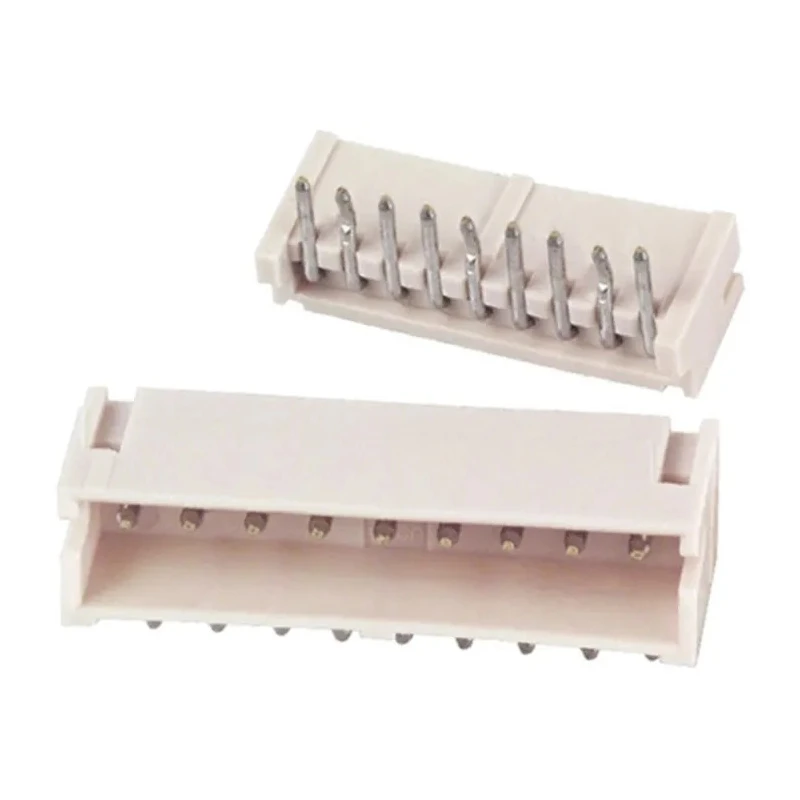

JST ZH Series Right Angle Through Hole PCB Header 9 Contact 1.5 mm Pitch 1 Row Shrouded S9B-ZR (LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST ZH Series Right Angle Through Hole PCB Header 9 Contact 1.5 mm Pitch 1 Row Shrouded S9B-ZR (LF)(SN)



Category PCB Headers Brand JST Condition New

Specifications

Country of Origin	Korea
Voltage	50V
Brand	JST
Orientation	Right Angle
Current	1A
Model	S9B-ZR (LF)(SN)
Mount Type	Through Hole
Housing Material	Polyamide
Contact Material	Brass
Series	ZH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	1.5mm
Contact Plating	Tin
Number of Contacts	9
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

The product features a single row of 9 male brass contacts with tin plating.
The housing is constructed from durable polyamide material ensuring reliability.
Operates reliably between -25°C to 85°C ambient temperatures.
Side entry design optimizes space on PCBs with thickness from 0.6 to 1.2 mm.
Supports a voltage rating up to 50V and a current rating of 1 ampere per contact.
Termination is via soldering for secure connection integrity.
Shrouded design provides protection and guides proper mating with corresponding connectors.
Compact 1.5 mm pitch allows for high-density PCB layouts.

Product Description

JST S9B-ZR (LF)(SN) PCB Header is a high-quality, right angle, through hole connector designed specifically for wire-to-board applications. Featuring 9 male contacts arranged in a single row with a compact 1.5 mm pitch, this shrouded header ensures secure and reliable connections on printed circuit boards.

The durable polyamide housing provides robust mechanical support while protecting contacts with its shrouded design. This header is optimized for PC board thicknesses ranging from 0.6 mm to 1.2 mm, making it suitable for a variety of electronic assemblies.

With a current rating of 1 ampere and voltage rating of 50 volts, the JST ZH series connector supports typical low-power signal and power transmission needs in electronics manufacturing.

The tin-plated brass contacts enhance conductivity and resist corrosion, while solder termination ensures long-lasting connection integrity. Operating temperature range from -25°C up to 85°C makes it compatible with diverse industrial and commercial environments.

This connector type is widely used in electronics manufacturing, laboratory equipment, communication devices, automation systems, and other industries requiring compact and reliable PCB connections.

The product features a single row of 9 male brass contacts with tin plating. The housing is polyamide and designed for a right angle orientation. Operating temperature range supports various environmental conditions. Solder termination provides a durable connection.

Shrouded design protects contacts and ensures correct mating. Compact 1.5 mm pitch allows high-density PCB layouts. Manufactured in Korea to exacting standards. EnvMart offers this JST ZH Series PCB Header as part of its extensive electronics components catalog, suitable for industrial, commercial, and laboratory applications.

Explore more products in our PCB Headers category.
