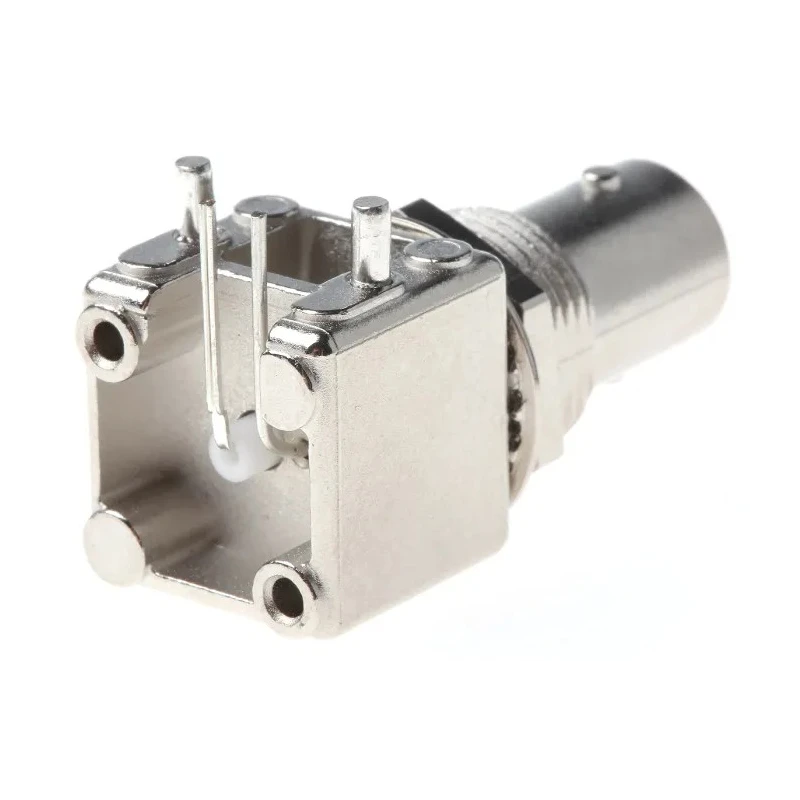

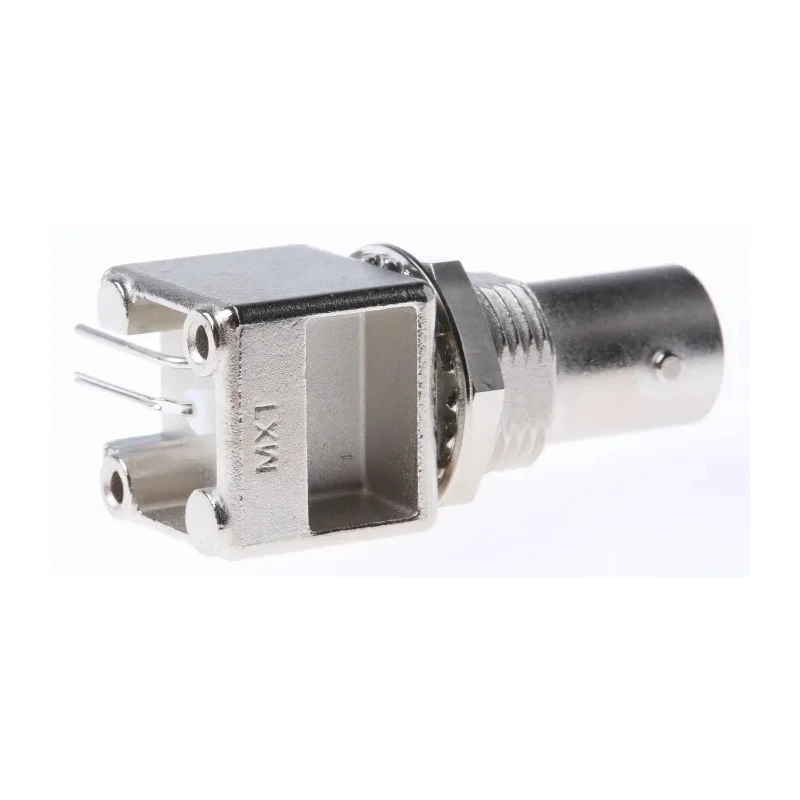

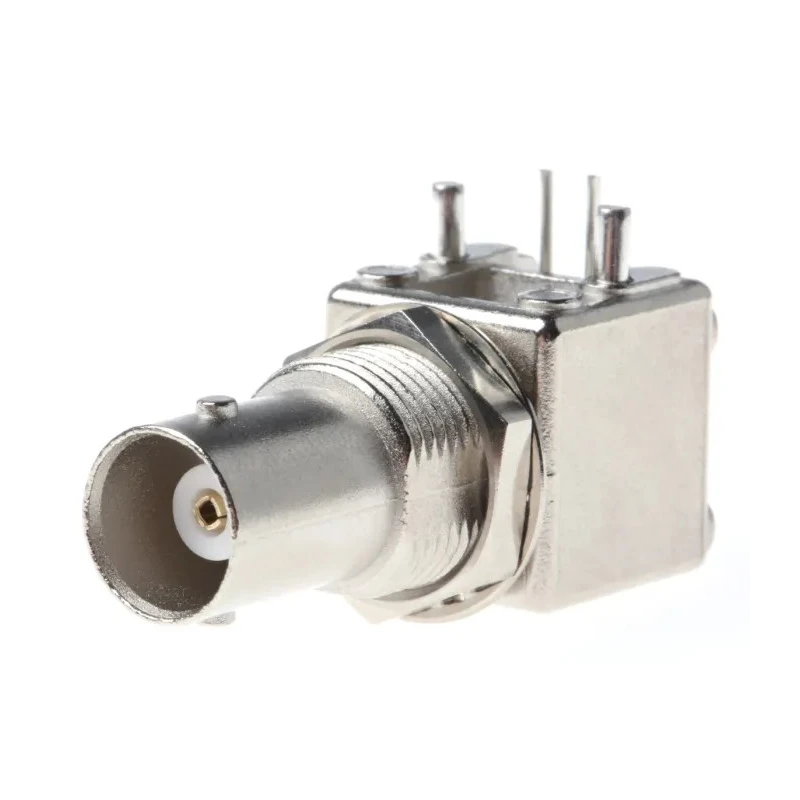

Molex 73148 Series Miniature 50Ω Coaxial Connector PCB Female BNC, Right Angle Body, Through Hole Mount 73171-4360
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Miniature |
| Brand | Molex |
| Orientation | Right Angle |
| Mount Type | PCB |
| Operating Frequency | 2GHz |
| Contact Material | Phosphor Bronze |
| Series | 73148 |
| Termination Type | Through Hole |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
Key Features
- Miniature size suitable for space-constrained applications.
- Right angle body with through hole PCB mounting ensures stable installation.
- Gold-plated phosphor bronze contacts offer high electrical conductivity and signal integrity.
- Nickel-plated die-cast zinc alloy body provides durability and corrosion resistance.
- Operates effectively up to 2GHz frequency for industrial and communication networks.
- Includes bayonet quick-release BNC connector design for fast and secure connections.
- Ideal for consumer electronics, measurement equipment and industrial communications.
- Bulkhead mounting supported for panel installations.
Product Description
Molex 73171-4360 is a high-quality miniature coaxial connector designed as a PCB female BNC with a right angle body and through hole mounting. This connector supports 50Ω impedance and operates effectively at frequencies up to 2GHz, making it suitable for RF and communication applications in industrial, measurement, and consumer electronics equipment.
The connector features a robust die-cast zinc alloy body with nickel plating, enhancing corrosion resistance and durability in challenging environments. Phosphor bronze contacts with gold plating ensure superior electrical conductivity and optimal signal strength, critical for reliable high-frequency performance.
This BNC connector uses a bayonet quick-release mechanism, providing easy and secure mating and unmating on PCB assemblies. Its compact miniature size (dimensions approximately 15.59mm height × 35.43mm length × 14.66mm depth) allows integration into space-limited designs. The through hole termination type offers a strong and stable connection to the PCB.
Key features include bulkhead mounting capability and normal polarity with female connector gender, designed for precise and flexible interconnection solutions in various electronic components.
Miniature size suitable for space-constrained applications. Right angle body with through hole PCB mounting ensures stable installation. Gold-plated phosphor bronze contacts offer high electrical conductivity and signal integrity.
Nickel-plated die-cast zinc alloy body provides durability and corrosion resistance. Operates effectively up to 2GHz frequency for industrial and communication networks. Includes bayonet quick-release BNC connector design for fast and secure connections.
Ideal for consumer electronics, measurement equipment and industrial communications. Bulkhead mounting supported for panel installations. Weight of 22.2 grams contributes to lightweight device assembly.
This component is manufactured in Taiwan, Province Of China, ensuring high quality and reliability. Leveraging Molex’s 73148 series design, it meets stringent requirements for electronic connectors in demanding applications.
Explore a comprehensive selection of Coaxial Connectors and related accessories to suit your industrial and laboratory needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector operates effectively at frequencies up to 2GHz, making it suitable for RF and communication applications.
It features through hole mounting, ensuring a strong and stable connection to the PCB.
The contacts are made of phosphor bronze and are gold-plated to enhance electrical conductivity and signal integrity.
This model has an impedance rating of 50Ω, which is standard for coaxial connectors used in RF applications.
It has a miniature size with approximate dimensions of 15.59mm height, 35.43mm length, and 14.66mm depth.
The body is made of die-cast zinc alloy with nickel plating, providing durability and corrosion resistance.
Yes, it supports bulkhead mounting for panel installations, allowing for flexible interconnection solutions.
This model features a female connector gender, suitable for various interconnections.
It is classified as a BNC coaxial connector, specifically designed for PCB applications.
It includes a bayonet quick-release mechanism, allowing for fast and secure mating and unmating on PCB assemblies.
This component is manufactured in Taiwan, ensuring high quality and reliability.
It is ideal for use in consumer electronics, measurement equipment, and industrial communications.
