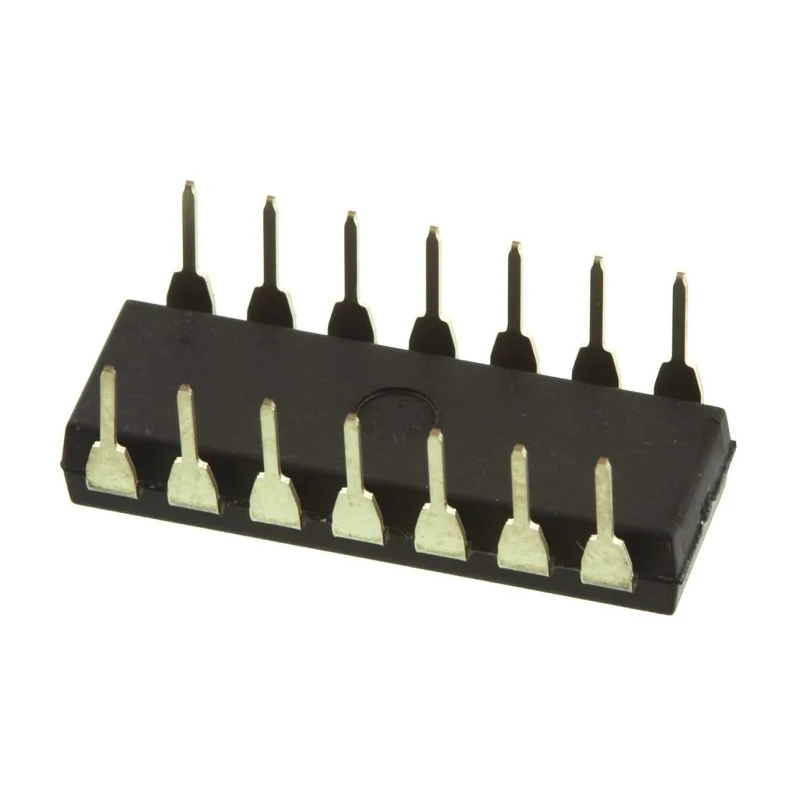

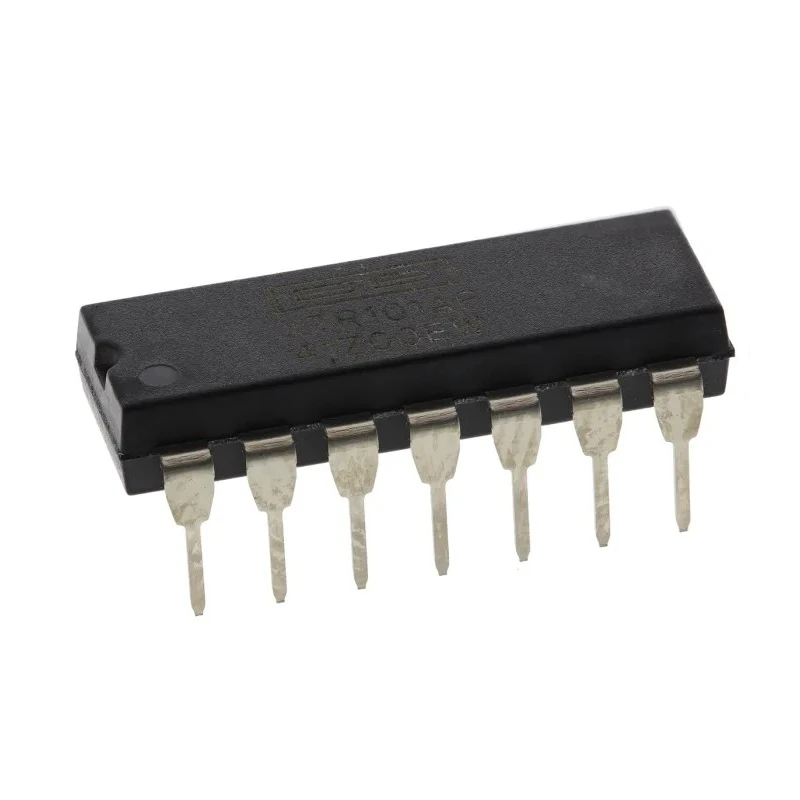

Texas Instruments Current Loop Transmitter PDIP 14-Pin 11.6V to 40V XTR101AP

Texas Instruments XTR101AP is a precision current loop transmitter designed in a 14-pin PDIP through-hole package. It is optimized for 4mA-to-20mA current-loop communication, making it ideal for analogue sensor data transmission in electrically noisy industrial environments over distances of 300 meters or more.

This component operates reliably with a supply voltage range from a minimum of 11.6V up to a maximum of 40V, supporting robust power conditions and ensuring compatibility with various industrial power supplies. The quiescent current of approximately 2mA enables efficient power consumption, ideal for continuous operation in instrumentation and process control systems.

With an operating temperature range spanning from -40°C to 85°C, the XTR101AP withstands harsh environmental conditions, maintaining accuracy and stability. The device’s compact dimensions of 19.3mm length and 4.57mm height allow for easy PCB integration in industrial electronics.

This transmitter is frequently applied in industrial automation, manufacturing process controls, water treatment monitoring, and remote sensor communication systems, where reliable and noise-immune analogue signal transmission is critical for measurement accuracy.

Designed for current loop communication in noisy industrial environments. Wide supply voltage range from 11.6V to 40V enhances operational flexibility. Low quiescent current of 2mA for energy-efficient performance. Robust operating temperature from -40°C to 85°C for harsh conditions.

Compact 14-pin PDIP through-hole package for straightforward PCB mounting. Supports analogue sensor data transmission over long distances of 300m or more. Compatible with industrial automation and process control systems.

Discover the full range of Current Loop Transmitters and associated components at EnvMart for your industrial and laboratory instrumentation requirements.
