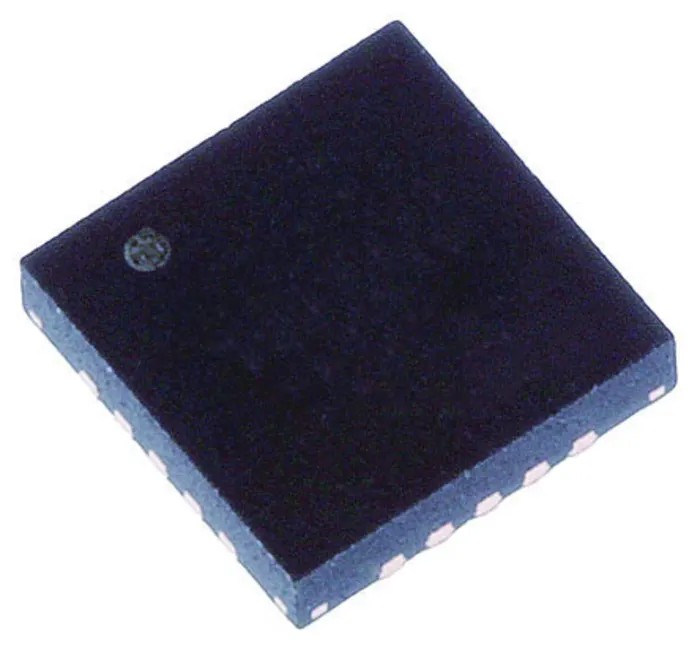

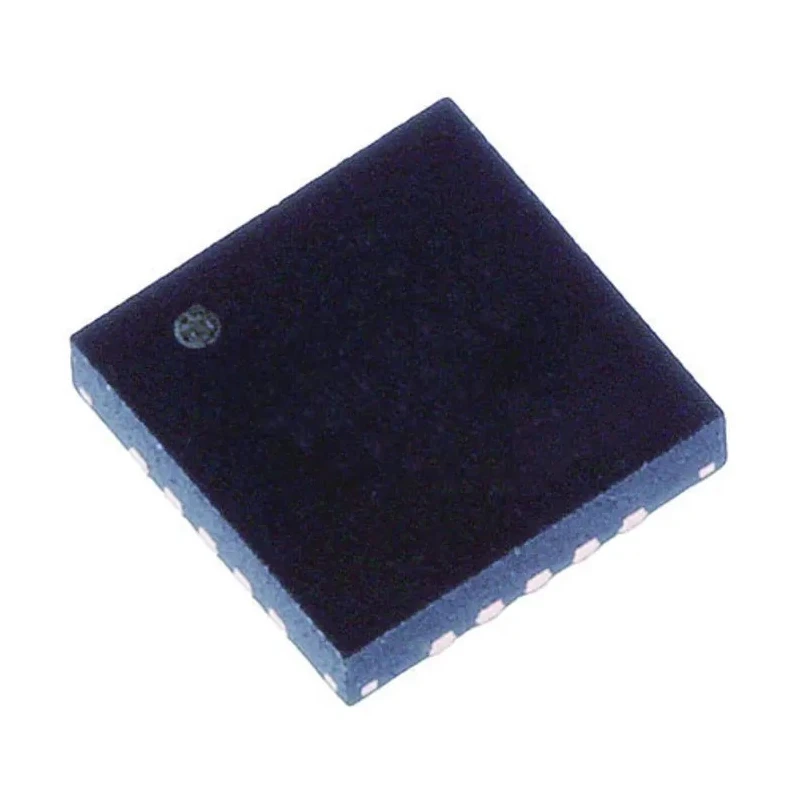

Texas Instruments Current Loop Transmitter 20-Pin QFN XTR300AIRGWT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 900μm |
| Length | 5mm |
| Model | XTR300AIRGWT |
| Mount Type | Surface |
| Series | XTR300 |
| Maximum Operating Temperature | 125°C |
| Package Type | QFN |
| Minimum Operating Temperature | -55°C |
| Quiescent Current | 2.3mA |
| Pin Count | 20 |
| Maximum Supply Voltage | 22V |
| Minimum Supply Voltage | -5V |
Key Features
- Supports 4mA-to-20mA current-loop communication for analogue sensor data.
- Operates at supply voltages from -5V to 22V ensuring broad compatibility.
- Low quiescent current of 2.3mA reduces power consumption.
- Surface mount 20-pin QFN package enables efficient PCB integration.
- Functions reliably in extreme temperatures from -55°C to 125°C.
- Compact 5mm length with 900μm height delivers small footprint for dense layouts.
- Designed for electrically noisy industrial environments with transmission distances over 300 meters.
- No specific automotive or approval standards are applied.
Product Description
Texas Instruments XTR300AIRGWT is a high-performance current loop transmitter in a 20-pin QFN surface mount package. It facilitates robust and accurate 4mA-to-20mA current loop signalling, widely used in industrial settings to transmit analogue sensor data over long distances exceeding 300 meters.
This device operates with a supply voltage range from -5V to 22V and exhibits a low quiescent current of just 2.3mA, promoting energy efficiency. Its compact dimensions of 5mm length and 900μm height support integration in tight PCB designs. The transmitter is capable of withstanding extreme ambient temperatures from -55°C to 125°C, ensuring reliability in harsh operating conditions.
The 20-pin QFN package type provides excellent thermal and electrical performance suitable for industrial instrumentation and control systems. The XTR300AIRGWT is primarily used in applications requiring noise-immune transmission of sensor data, such as process control, environmental monitoring, and factory automation.
Supports 4mA-to-20mA current loop communication enabling effective sensor data transmission. Wide supply voltage range from -5V to 22V enhances device versatility. Low quiescent current consumption of 2.3mA reduces system power draw.
Surface mount 20-pin QFN footprint allows compact and efficient PCB layouts. Broad operating temperature range from -55°C to 125°C suits industrial environments. Small physical size simplifies integration in dense electronic assemblies.
No specified automotive or industry-specific standards compliance.
Ideal for industrial, laboratory, manufacturing, and automation instrumentation, the XTR300AIRGWT enhances reliable long-distance analogue signal transmission in noisy environments.
Explore additional Current Loop Transmitter products and semiconductor amplifiers on EnvMart for comprehensive application solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a supply voltage range from -5V to 22V, allowing for broad compatibility in various applications.
The XTR300AIRGWT has a low quiescent current of 2.3mA, which helps reduce overall power consumption in systems where it is used.
It can operate reliably in extreme temperatures ranging from -55°C to 125°C, making it suitable for harsh industrial environments.
The transmitter comes in a 20-pin QFN surface mount package, which facilitates efficient integration onto PCBs.
This unit has a compact length of 5mm, which supports integration in tight electronic layouts.
The height of this model is 900μm, allowing for space-efficient designs in electronic assemblies.
It is primarily used in industrial applications requiring noise-immune transmission of sensor data, such as process control and factory automation.
The maximum supply voltage for this current loop transmitter is 22V, enhancing its versatility in various setups.
The minimum supply voltage for the XTR300AIRGWT is -5V, which allows it to operate in a wider range of conditions.
This current loop transmitter features a pin count of 20, which is typical for its package type.
The 4mA-to-20mA current loop communication is essential for transmitting analogue sensor data over long distances, making it ideal for industrial applications.
The XTR300AIRGWT is manufactured in India, which is noted as its country of origin.
