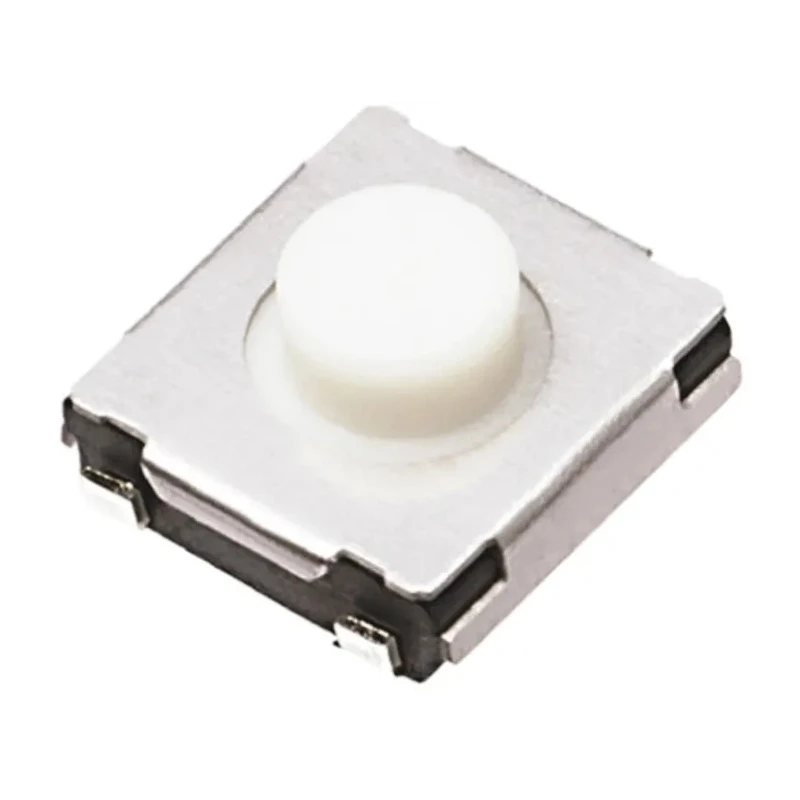

Panasonic White Tactile Switch Push Plate, 3.1 mm Actuator Length, SPST 20mA 15 V dc, Surface Mount EVQQ2203W
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 3.1mm |
| Length | 6.6mm |
| Model | EVQQ2203W |
| Width | 6mm |
| Mount Type | Surface |
| Series | EVQQ2 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Terminal type | Surface Mount |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | White |
| Actuator Length | 3.1mm |
| Contact DC Voltage | 15V dc |
| Actuator Style | Push Plate |
| Switch Contact Current | 20mA |
| Operating Force | 3.5N |
| Mechanical Life | 100000Cycles |
Key Features
- The switch features a momentary operation type for precise control.
- Operates at 20mA contact current with a voltage rating of 15V dc.
- Robust mechanical life of 100,000 cycles ensuring durability.
- Operating force of 3.5N providing clear and tactile feedback.
- Wide operating temperature range from -40°C to 85°C for diverse environment use.
- Surface mount terminal type suitable for SMT assembly.
- No illumination on the switch for standard applications.
- Complies with RoHS standards, assuring environmental compliance.
Product Description
Panasonic EVQQ2203W white tactile switch offers a reliable momentary push plate actuator with a 3.1 mm length designed for surface mount use. This single pole single throw (SPST) tactile switch supports a contact current of 20mA at 15 V dc, ideal for low current electronic circuits.
The switch measures 6.6 mm in length, 6 mm in width, and 3.1 mm in height, fitting compact electronic assemblies. Engineered for endurance, it provides a mechanical life of up to 100,000 cycles and operates with an actuation force of 3.5N, delivering a sharp and consistent tactile response.
Temperature tolerance ranges from -40°C minimum to 85°C maximum, enabling performance in challenging indoor and industrial environments. Featuring surface mount terminals for efficient automated PCB assembly, this switch is RoHS compliant, ensuring safety and environmental standards are met.
Applications include industrial controls, consumer electronics, HVAC systems, automation equipment, and instrumentation requiring precise user input with tactile feedback. The switch feature a momentary operation type. Contact rating of 20mA at 15V dc ensures suitability for small signal switching.
Compact dimensions support high-density PCBs. Long mechanical life for reliable device longevity. Actuating force of 3.5N offers clear tactile sensation. Wide operating temperature range for environmental resilience. Surface mount terminal design facilitates SMT processes.
Non-illuminated for standard use cases. RoHS compliant design meets global standards. Part of the EVQQ2 series offering consistent quality. Explore more Tactile Switches and related components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating is 20mA at a voltage of 15V dc.
It has a mechanical life of up to 100,000 cycles.
The operating force is 3.5N, providing a clear tactile feedback during operation.
It features a single pole single throw (SPST) configuration.
The switch measures 6.6 mm in length, 6 mm in width, and 3.1 mm in height.
It supports surface mount terminal type, making it suitable for SMT assembly.
Yes, it complies with RoHS standards, ensuring environmental compliance.
The actuator style is a push plate with a length of 3.1 mm.
It is suitable for applications in industrial controls, consumer electronics, HVAC systems, and automation equipment.
The actuator color is white.
