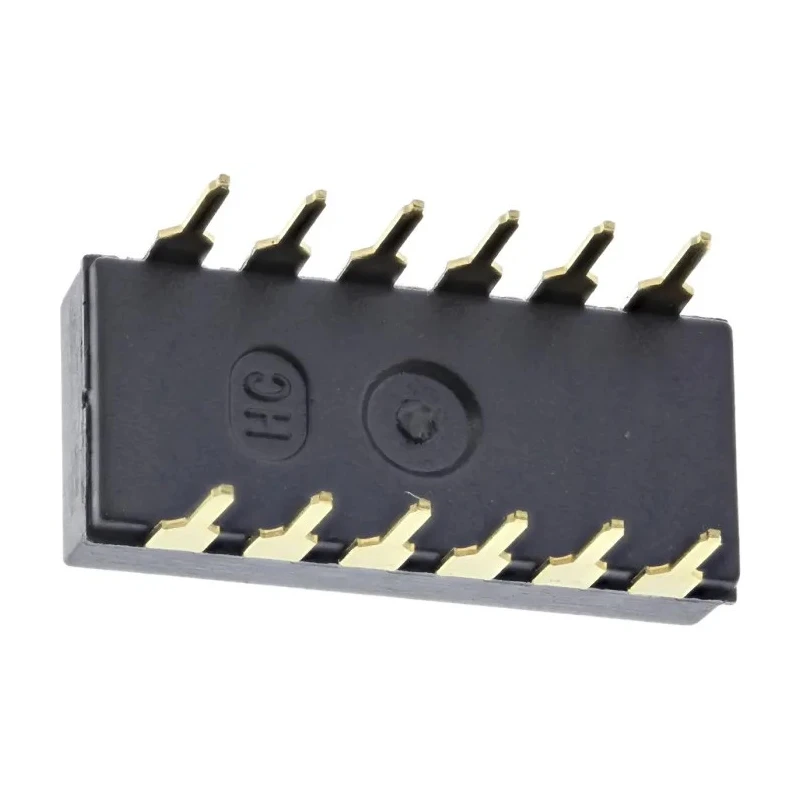

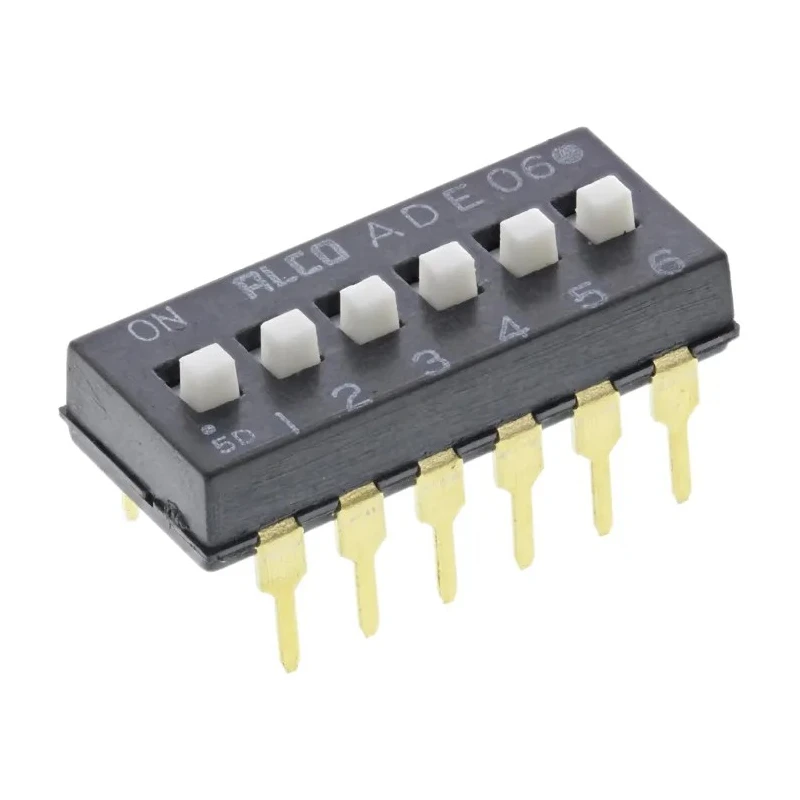

TE Connectivity Rotary Coded DIP Switch Through Hole, Extended Slide Actuator ADE06A04
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Model | ADE06A04 |
| Mount Type | Through Hole |
| Actuator Type | Extended Slide |
| Contact Resistance | 50mΩ |
Key Features
- Through hole mounting ensures secure installation.
- Extended slide actuator provides ease of operation.
- 7.5 x 3.5 mm size with 2.54 mm centerline pitch for PCB compatibility.
- Gold flash plated contacts deliver superior conductivity and durability.
- Black PPS housing offers excellent chemical and thermal resistance.
- High pressure wiping contact system allows cleaning without tape seal.
- Can withstand vapor phase reflow and wave soldering processes.
- Contact resistance rated at 50 mΩ for minimal signal loss.
Product Description
TE Connectivity ADE06A04 Rotary Coded DIP Switch Through Hole with Extended Slide Actuator is engineered for precision and durability in electrical, industrial automation, and manufacturing applications.
This DIP switch features through hole mounting with a compact 7.5 x 3.5 mm footprint and a 2.54 mm pin centerline, making it compatible with various printed circuit boards. The extended slide actuator design facilitates user-friendly switching.
The switch contacts are gold flash plated to ensure excellent conductivity and resistance to corrosion, housed within a black PPS (polyphenylene sulfide) structure that provides robust chemical and thermal endurance. Its high pressure wiping contact system supports cleaning with aqueous or solvent methods without requiring a tape seal, enhancing maintenance convenience.
Designed for industrial soldering environments, this switch can endure vapor phase reflow and wave soldering conditions without degradation. The contact resistance is maintained at a low 50 mΩ, ensuring reliable electrical performance.
Through hole mounting for stable PCB attachment. Extended slide actuator for smooth switching action. Compact dimensions ideal for dense circuit designs. Gold flash plated contacts for superior signal integrity. Robust black PPS housing resistant to chemicals and heat.
High pressure wiping system supports solvent cleaning. Compatible with vapor phase reflow and wave soldering. Low contact resistance of 50 milliohms ensures efficiency.
This switch is suitable for use in electronic equipment, automation systems, control panels, and other industrial applications requiring reliable rotary coded switching with a durable form factor.
Explore more products in the Rotary Coded DIP Switch category at EnvMart for comprehensive industrial electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a compact footprint of 7.5 x 3.5 mm with a 2.54 mm pin centerline, making it suitable for various printed circuit boards.
It features through hole mounting, ensuring secure installation on printed circuit boards.
The contact resistance is rated at 50 mΩ, which helps minimize signal loss during operation.
This model uses an extended slide actuator, which facilitates smooth and user-friendly switching.
The switch is housed in a black PPS (polyphenylene sulfide) structure, providing excellent chemical and thermal resistance.
Yes, it is designed to endure vapor phase reflow and wave soldering processes without degradation.
The high pressure wiping contact system allows for cleaning with aqueous or solvent methods without requiring a tape seal.
It is suitable for use in electronic equipment, automation systems, control panels, and other industrial applications requiring reliable rotary coded switching.
The ADE06A04 rotary coded DIP switch is manufactured in India.
The gold flash plated contacts provide superior conductivity and resistance to corrosion, enhancing the switch's performance and longevity.
The 2.54 mm centerline pitch allows compatibility with a variety of printed circuit boards, making it versatile for different applications.
The switch's design supports cleaning without the need for a tape seal, simplifying maintenance procedures.
