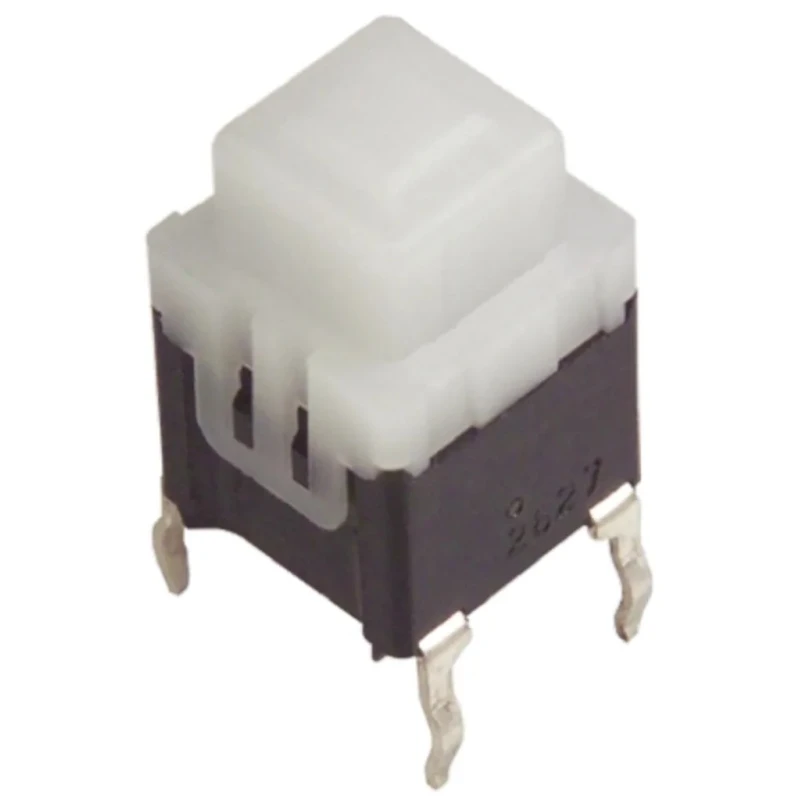

Panasonic White Tactile Switch Lever SPST 100mA 14 V dc Through Hole ESE20C343
Specifications
| Country of Origin | China |
|---|---|
| Brand | Panasonic |
| Height | 12.5mm |
| Length | 8.9mm |
| Model | ESE20C343 |
| Width | 5.7mm |
| Mount Type | Through Hole |
| Series | ESE20 |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -30°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | White |
| Contact DC Voltage | 14V dc |
| Actuator Style | Lever |
| Switch Contact Current | 100mA |
| Operating Force | 4N |
Key Features
- This switch is a momentary operation type providing tactile feedback for user operation.
- The lever actuator is white and designed for easy manual actuation.
- It supports a contact current of up to 100mA DC and a maximum contact voltage of 14 V DC.
- The switch body height measures 12.5mm with an 8.9mm length and 5.7mm width footprint.
- Operating temperature range is from -30°C to +80°C, suitable for automotive and industrial applications.
- Mounting is designed for through hole PCB installation with solder terminal type.
- Conforms to RoHS standards ensuring environmental compliance.
- Operating force required is 4N with a 2.5mm total travel distance providing consistent tactile feedback.
Product Description
Panasonic ESE20C343 is a white tactile switch lever characterized by SPST (Single Pole Single Throw) contact configuration. It operates with a momentary switch action, providing reliable tactile feedback with a lever actuator. Designed for through hole mounting, this switch is suitable for automotive and general industrial uses requiring low current signal switching.
The switch handles a maximum contact current of 100mA at 14V DC and operates effectively within a temperature range of -30°C to 80°C, demonstrating durability in varied environments. With a compact body measuring 12.5mm in height, 8.9mm in length, and 5.7mm in width, it fits well on circuit boards requiring precise switching components.
The ESE20C type variant features a momentary (non-lock) tactile action with a 2.5mm full travel and 4N operating force, which is ideal for automotive signal applications.
This model complies with RoHS directives, ensuring the product does not contain hazardous substances according to electrical and electronic equipment standards. The solder terminal construction ensures easy and secure attachment to printed circuit boards.
Momentary switch operation with tactile feel for precise user feedback. Single Pole Single Throw (SPST) contact configuration suitable for signal switching. White lever actuator enhances easy identification and manual operation.
Low current rating of 100mA DC at 14V DC designed for control and signal circuits. Compact design suitable for automotive and industrial PCB applications. Wide operating temperature range from -30°C to 80°C for demanding environments.
Through hole mounting with solder contacts for reliable circuit integration. RoHS compliant ensuring environmentally safe product standards.
This tactile switch is listed under the Electronics & Electricals category, specifically in Switches & Sockets and Tactile Switch subcategories on EnvMart. Explore more Panasonic Tactile Switches and signal switching components to find the ideal solution for your electronic projects and automotive applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum contact current for this model is 100mA DC.
This switch operates effectively within a temperature range of -30°C to 80°C.
It supports through hole mounting with solder terminal type for secure attachment to printed circuit boards.
The contact configuration of this switch is SPST (Single Pole Single Throw).
The actuator style is a lever, with a white color for easy identification and manual operation.
The total travel distance for this model is 2.5mm.
The operating force required for this switch is 4N.
Yes, this model conforms to RoHS standards, ensuring it does not contain hazardous substances.
The dimensions are 12.5mm in height, 8.9mm in length, and 5.7mm in width.
It is suitable for automotive and general industrial applications requiring low current signal switching.
The maximum contact voltage for this model is 14V DC.
The country of origin for this tactile switch is China.
