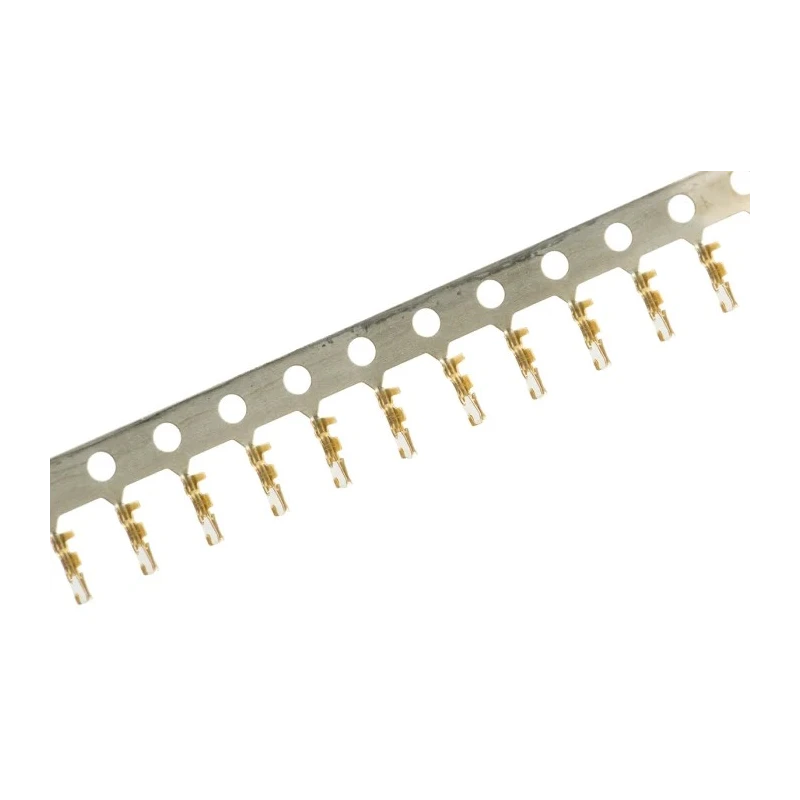

JST SSH Series Female Crimp Terminal 32 AWG Min Crimp 28 AWG Max Gold Plated Phosphor Bronze Contact SSH-003GA-P0.2

JST SSH-003GA-P0.2 Female Crimp Terminal is a high-quality connector component engineered for precise and reliable wire-to-board connections. It supports wire sizes from 32 AWG minimum to 28 AWG maximum, catering to fine-pitch electronic assemblies. The contact material is phosphor bronze, providing excellent conductivity and mechanical strength, while gold plating enhances corrosion resistance and maintains stable electrical performance over time.

This crimp terminal is designed for compatibility with SHD Connector Housing, LBT, and SH Connector Housings, commonly utilized in electronic components and power connectors. The crimp termination ensures a secure and robust electrical connection, essential for industrial, manufacturing, and electronic assembly applications.

Rated for 1 ampere current and operating in temperatures ranging from -25°C to 85°C, the terminal meets demanding environmental and electrical conditions often encountered in commercial and industrial electronic equipment.

The maximum contact resistance of 40 milliohms facilitates efficient current flow with minimal energy loss, contributing to overall system reliability. The locking structure integrated into the design aligns with 1.0mm wire-to-board SHD Series contacts, improving connection stability during assembly and use.

This component is indispensable in PCB connectors and wire housings, supporting various industrial automation, electronics manufacturing, and power distribution applications where precision and reliability are critical.

Constructed with phosphor bronze contact material for durability and conductivity. Gold plating on contacts ensures optimal corrosion resistance and electrical performance. Suitable for use with SHD Connector Housing, LBT, and SH Connector Housings.

Supports a current rating of 1 ampere for reliable low-current applications. Termination is by crimping for secure mechanical and electrical connection. Operates within a temperature range of -25°C to 85°C. Features a locking structure optimized for 1.0mm wire-to-board SHD Series contacts.

Maximum contact resistance is rated at 40 milliohms ensuring minimal power loss. Compact design compatible with PCB connectors and wire housings in electronic assemblies. Explore more components like JST SSH Series Female Crimp Terminal and related electronic connectors in EnvMart's Electronics & Electricals category.
