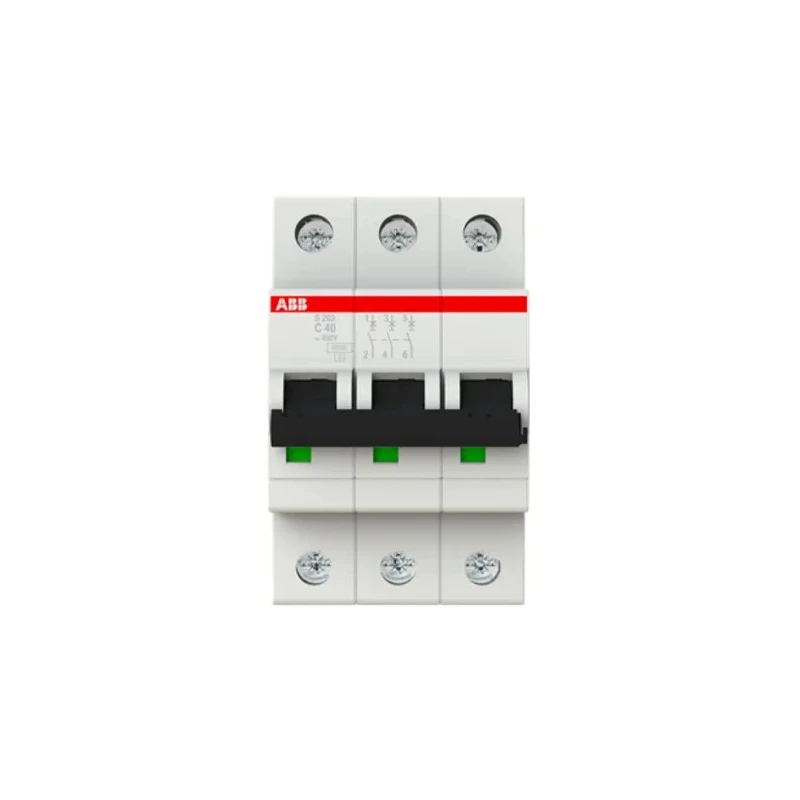

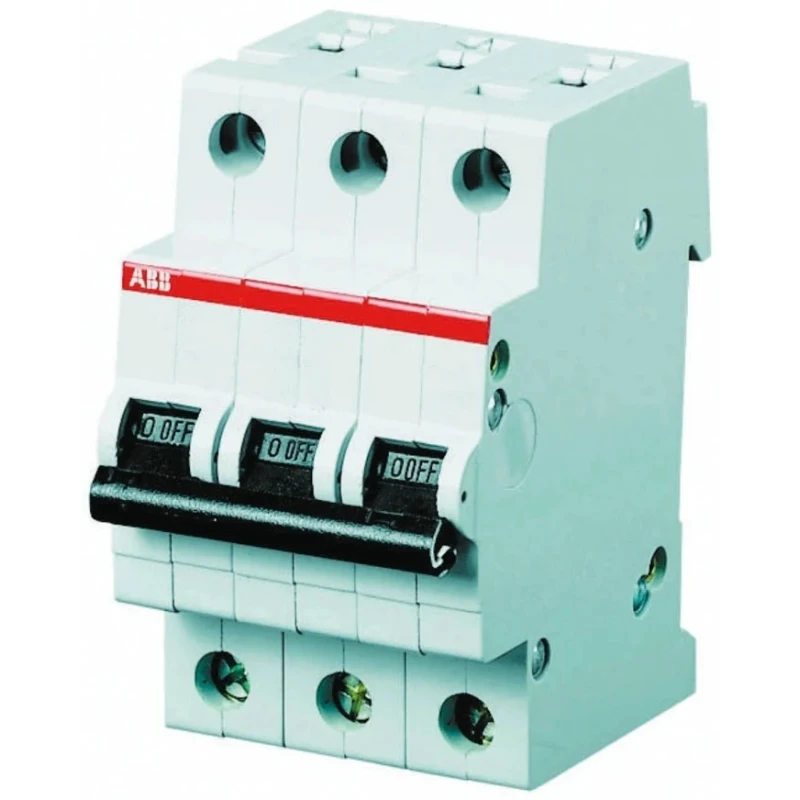

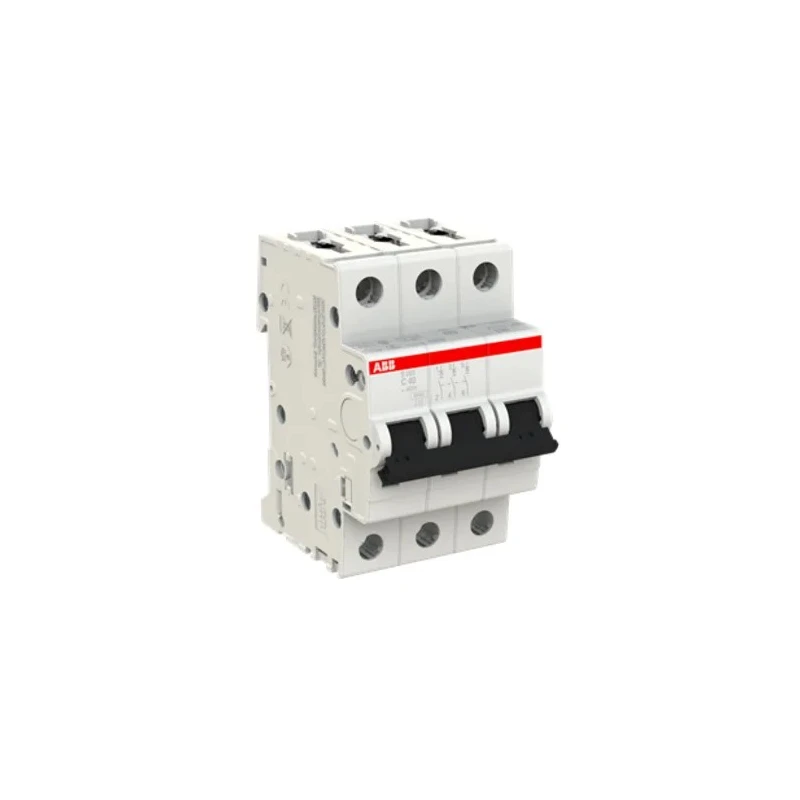

ABB System Pro M Compact S200 Miniature Circuit Breaker 3-Pole 40A Type C 400V AC 12V DC 6 kA 2CDS253001R0404 S203-C40

ABB 2CDS253001R0404 S203-C40 System Pro M Compact S200 Miniature Circuit Breaker is a high-quality 3-pole device rated at 40A with Type C tripping characteristics, suitable for AC voltages up to 400V and DC voltages up to 12V. It is engineered to automatically switch off electrical circuits in case of faults, providing reliable protection in commercial, industrial, and institutional installations such as schools, factories, and commercial properties.

The sophisticated tripping mechanism combines electromechanical and thermal controls to detect overloads and short circuits quickly and accurately. Its Type C tripping characteristic means the breaker trips instantly when load currents reach five to ten times the nominal rating of 40A, ensuring protection of sensitive equipment and wiring.

The MCB's compact DIN rail mount design with integrated rear clip allows versatile positioning in electrical cabinets. Screw-type bi-directional cylinder-lift terminals provide secure and fail-safe wire connections using a size two Pozidriv screwdriver, minimizing wiring errors and installation time.

Operational indicators in red and green offer clear visual status of the circuit, simplifying monitoring and maintenance tasks. The breaker is built for longevity with a mechanical lifespan of 20,000 cycles and is designed to be environmentally responsible with features facilitating disassembly and recycling.

This Miniature Circuit Breaker is suited for a wide array of electrical protection tasks in industrial, commercial, and educational sectors, safeguarding circuits and enhancing operational safety and reliability.

Three-pole configuration for comprehensive electrical circuit protection. DIN rail mounting with integrated rear clip for fast and flexible installation. Screw terminals with failsafe bi-directional cylinder-lift design for reliable wiring.

Type C tripping mechanism instantly reacts to overloads five to ten times rated current. Breaking capacity of 6kA provides rapid short circuit interruption. Rated for 400V AC and 12V DC operation across diverse applications.

Clear red/green circuit status indicators for easy visual monitoring. Mechanical lifespan of 20,000 cycles ensures durability and reliability. Designed in Germany with sustainability features for disassembly and recycling.
