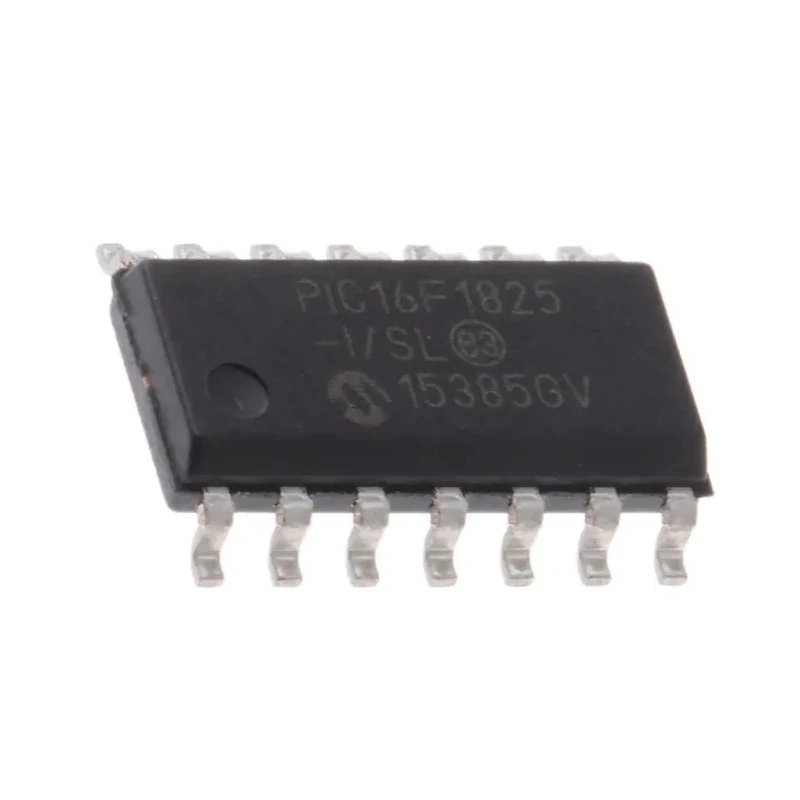

Microchip 8 bit PIC Microcontroller PIC16F1825-I/SL, 32 MHz, 14kB FLASH, 14-Pin SOIC

Microchip PIC16F1825-I/SL is a high-performance 8 bit PIC microcontroller designed for embedded control applications. It features a 32 MHz maximum clock frequency, 14kB of FLASH program memory, and a 14-pin small outline integrated circuit (SOIC) package for compact board designs.

This microcontroller integrates a PIC architecture core that delivers up to 8 MIPS of processing power with a 16-level hardware stack and supports a rich instruction set of 49 instructions. The device has 12 programmable I/O pins, 1kB of RAM, and 256 bytes of Data EEPROM for flexible application development.

Built for industrial and automotive applications, it supports a wide operating voltage range from 1.8V to 5.5V with a maximum power dissipation of 800mW. It includes an extended temperature range from -40°C to 85°C, ensuring robust operation under diverse environmental conditions.

The PIC16F1825-I/SL contains multiple peripherals such as an 8 channel 10-bit analogue-to-digital converter (ADC), two analogue comparators, five timers (four 8-bit and one 16-bit), capture/compare/PWM modules, and serial communication interfaces (MSSP with SPI/I2C and EUSART). These features enable sophisticated control and communication options within embedded systems.

Key built-in features also include Power-On Reset, Power-Up Timer, Oscillator Start-Up Timer, Brown-Out Reset, Watchdog Timer, Low-Voltage Programming, and In-Circuit Serial Programming and Debug capabilities. The device architecture and peripherals make it suitable for diverse applications in consumer electronics, industrial automation, automotive electronics, and communication equipment.

This microcontroller is surface mount compatible and is offered in a 14-pin SOIC package with dimensions of 8.65 mm length, 3.9 mm width, and 1.5 mm height. It meets the ISO/TS 16949 automotive standard, ensuring reliability and quality in automotive-grade applications. Manufactured in Thailand, it offers a reliable option for embedded system engineers requiring a compact, low-power, and flexible microcontroller solution.

Operates with 8 bit PIC architecture for efficient performance. Features 12 programmable I/O pins for versatile interfacing. Includes 1kB RAM and 256 bytes Data EEPROM memory. Supports up to 8 MIPS speed with ±1% oscillator accuracy.

Offers power consumption up to 800mW and voltage range 1.8V to 5.5V. Equipped with 8 channels 10-bit ADC and 2 analogue comparators. Includes five timers and multiple PWM modules for advanced control. Suitable for surface mount with a compact 14-pin SOIC package.

Operating temperature range is -40°C to 85°C ensuring industrial reliability. Complies with ISO/TS 16949 automotive standard for quality assurance.
