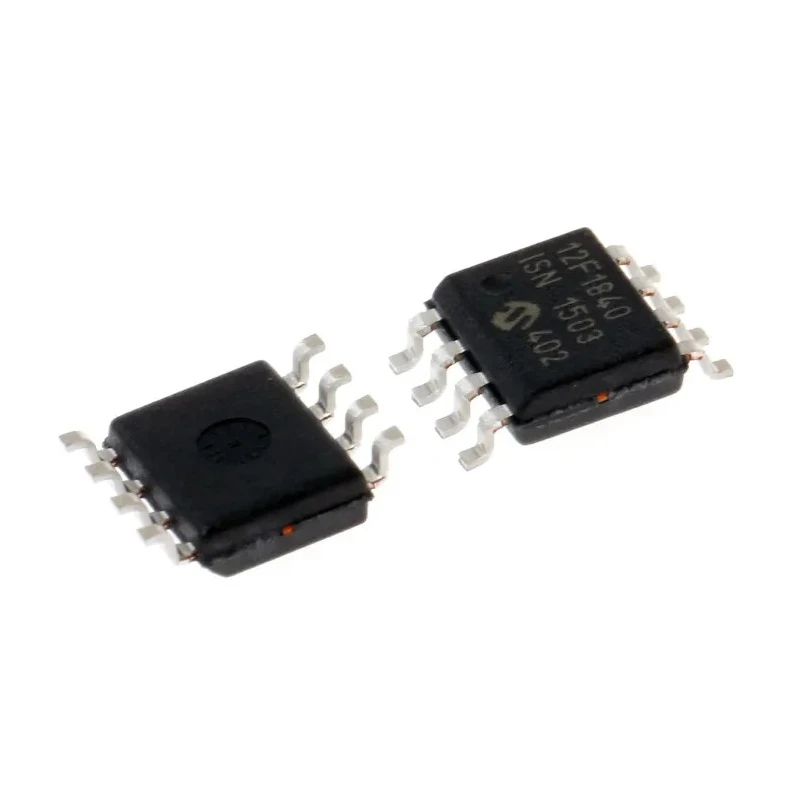

Microchip PIC12F1840-I/SN 8-bit PIC Microcontroller 32 MHz 7kB FLASH 8-Pin SOIC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.75mm |
| Length | 4.9mm |
| Model | PIC12F1840-I/SN |
| Width | 6mm |
| Mount Type | Surface |
| Series | PIC12F |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 256bit |
| Pin Count | 8 |
| Automotive Standard | ISO/TS 16949 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 2.3V |
| Device Core | PIC |
| Program Memory Size | 7kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 6 |
| Analogue Comparators | 1 |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 4 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates with 2.3V minimum and 5.5V maximum supply voltage.
- Features 256-bit RAM and six programmable I/O pins.
- Includes one analogue comparator and four 10-bit ADC channels.
- Supports two 8-bit timers and one 16-bit timer for versatile timing requirements.
- Employs RISC instruction set architecture with 49 instructions and 16-level hardware stack.
- Built with automotive standard ISO/TS 16949 compliance.
- Maximum operating temperature is 85°C and minimum -40°C for industrial applications.
- Program memory is FLASH type enabling efficient code management.
Product Description
Microchip PIC12F1840-I/SN is an advanced 8-bit PIC microcontroller designed by Microchip Technology, featuring a 32 MHz maximum clock frequency and a 7kB FLASH program memory. This microcontroller is supplied in a compact 8-pin SOIC surface mount package, suitable for applications requiring a small footprint and reliable performance.
Equipped with an enhanced mid-range core and RISC instruction set architecture, it delivers efficient processing with 49 instructions and a 16-level hardware stack. The device supports up to 8 MIPS, providing fast execution for embedded systems.
Power supply voltage ranges from 2.3V minimum to 5.5V maximum, with a maximum power dissipation of 800 mW. The operational temperature range from -40°C to 85°C makes it suitable for industrial, automotive, and commercial deployments.
This microcontroller offers six programmable input/output pins, one analogue comparator, and four 10-bit analogue-to-digital converters, expanding its versatility in sensor and control system applications. Additionally, it contains two 8-bit timers and one 16-bit timer, alongside communication peripherals like Master Synchronous Serial Port (MSSP) with SPI and I2C, EUSART for serial communication, and In Circuit Serial Programming (ICSP) support for convenient firmware updates.
The PIC12F1840-I/SN incorporates Extreme Low Power (XLP) technology, optimizing battery life for portable and low-power devices. Its compact dimensions of 4.9 mm length, 6 mm width, and 1.75 mm height enable integration into space-constrained environments.
Operates efficiently at up to 32 MHz clock speed. 7kB of FLASH program memory provides adequate space for embedded code. Surface mount SOIC package facilitates board-level integration. Includes multiple timers and ADCs for control and measurement tasks.
Meets automotive standard ISO/TS 16949 ensuring quality and reliability. Wide voltage and temperature operating range for diverse applications. Ideal for embedded industrial control, automotive, and consumer electronic devices.
Explore the Microchip product category on EnvMart for more Microcontroller solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz.
It features a program memory size of 7 kB, which is FLASH type for efficient code management.
The operating temperature range is from -40°C to 85°C, making it suitable for various industrial and automotive applications.
This model has six programmable input/output pins, enhancing its versatility for various applications.
It operates with a supply voltage ranging from a minimum of 2.3V to a maximum of 5.5V.
The PIC12F1840-I/SN includes two 8-bit timers and one 16-bit timer for various timing requirements.
This microcontroller is supplied in an 8-pin SOIC surface mount package.
It features four 10-bit analogue-to-digital converters (ADCs), providing capabilities for sensor and control applications.
It meets the automotive standard ISO/TS 16949, ensuring quality and reliability for automotive applications.
The maximum power dissipation for the PIC12F1840-I/SN is 800 mW.
It employs a RISC instruction set architecture, which consists of 49 instructions and a 16-level hardware stack.
The dimensions of this microcontroller are 1.75 mm in height, 4.9 mm in length, and 6 mm in width.
