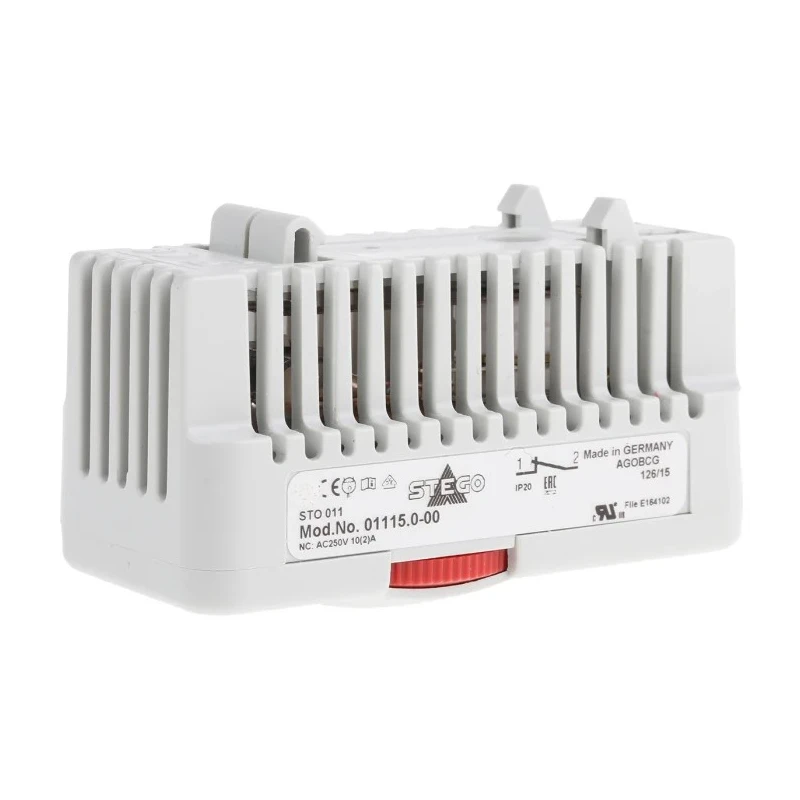

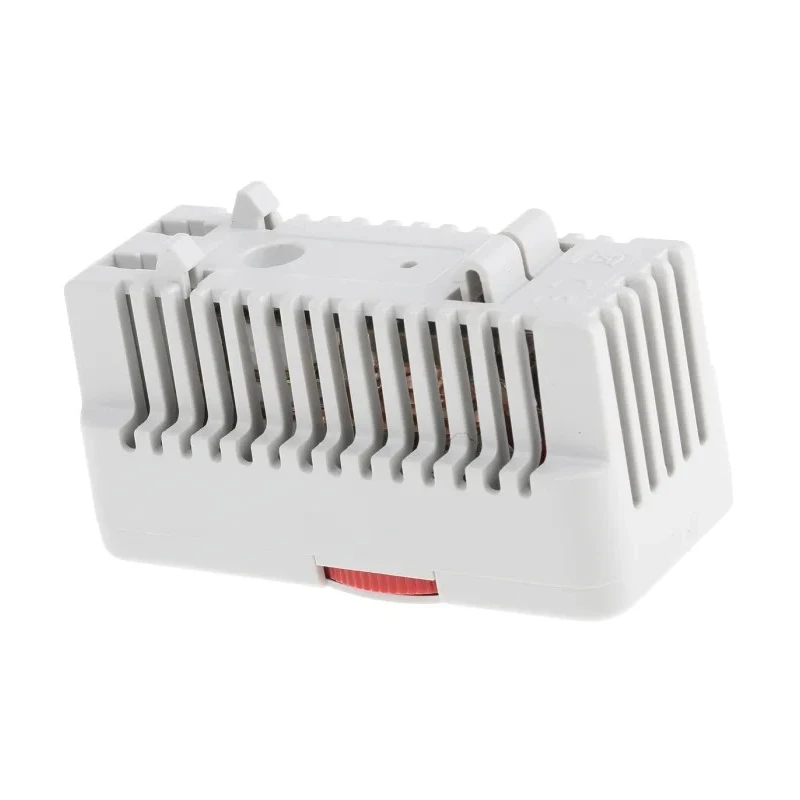

STEGO SPST Mechanical Enclosure Thermostat 250V AC, 0 to 60°C Setting Range, Max 80°C Operating Temperature 01115.0-00

STEGO 01115.0-00 is a mechanical SPST Enclosure Thermostat engineered for precise temperature control in electrical enclosures and HVAC systems. It operates at a supply voltage of 250V AC with a temperature setting range from 0 to 60°C and can reliably handle maximum operating temperatures up to 80°C. The device utilizes a thermostatic bimetal sensor element coupled with snap-action contacts for fast response and high switching capacity, making it ideal for regulating heaters, filter fans, and heat exchangers.

The thermostat features a compact, light grey plastic casing that complies with UL94 V-0 standards for flame retardancy. Its optimized air circulation housing and clip mounting on a 35mm DIN rail facilitate efficient heat dissipation and versatile installation options. The SPST configuration allows it to act as a contact breaker or maker depending on the application, with a switching temperature difference of 4K (±3K tolerance) ensuring stable operation.

Construction includes a 2-pole terminal connection for conductors up to 2.5mm² with a maximum torque of 1Nm. The protection rating of IP20 ensures adequate environmental safeguarding while maintaining usability within enclosure systems. Its lightweight design at approximately 50 grams and compact dimensions (70 x 33 x 42 mm) suit a wide range of industrial and commercial electrical applications.

This thermostat is fully compliant with submitted UL and VDE standards and is manufactured in Germany, reflecting stringent quality assurance. It is suitable for industrial, laboratory, HVAC, manufacturing, and commercial electrical enclosure temperature monitoring and control scenarios.

Features a single-pole single-throw (SPST) snap-action contact for reliable temperature switching. Temperature setting and operating range from 0 to 60°C, max operating temperature 80°C. Compact plastic housing with optimized air circulation and clip for 35mm DIN rail mounting.

Thermostatic bimetal sensor element ensures precise and repeatable switching. Max inrush current rating of 16 A AC for 10 seconds supports robust electrical loads. Light grey UL94 V-0 flame retardant plastic casing offering IP20 protection.

Switch temperature difference of 4K with ±3K tolerance for stable control. Connection via 2-pole terminal for up to 2.5mm² wire size with 1Nm max torque. Weight approx. 50 grams; dimensions 70 x 33 x 42 mm suitable for compact electrical enclosures.
