STEGO Enclosure Thermostat, Mechanical, 16 A Contact Current, 24V DC Supply Voltage, Temperature Range 0 to +60 01190.0-00

STEGO 01190.0-00 Enclosure Thermostat is a mechanical thermostat designed for regulating high-performance DC 24V equipment. Ideal for switching heating or cooling appliances and signal devices via a potential free change-over contact, this thermostat provides precise temperature control with a low hysteresis compared to mechanical alternatives.

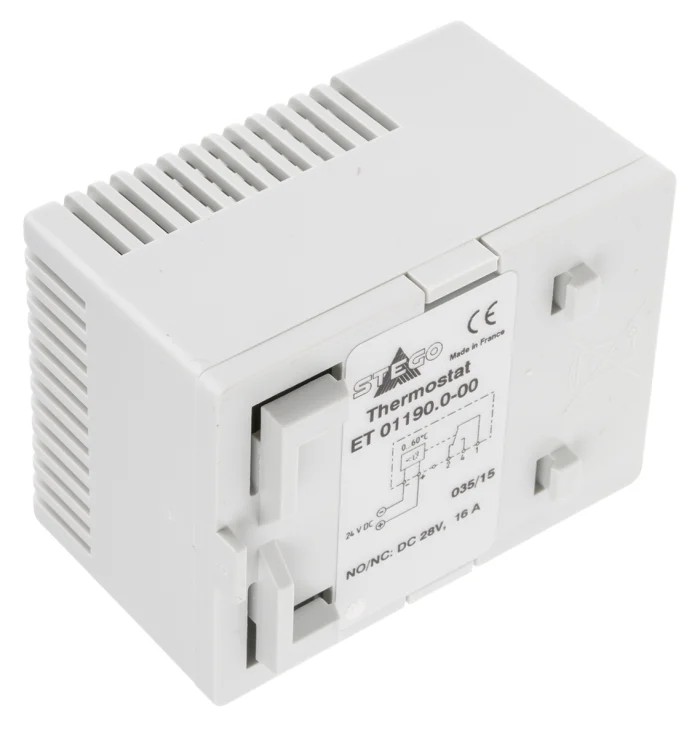

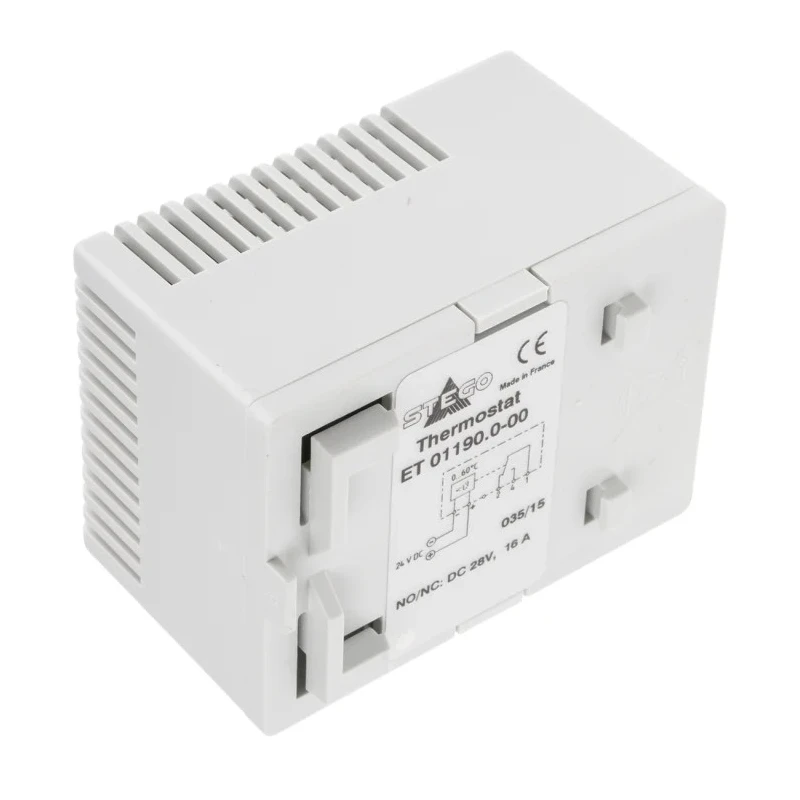

The device features a high DC breaking capacity with adjustable temperature settings. Housed in a UL94 V-0 rated plastic casing in light grey, it offers durability and fire resistance. Its vertical fitting position and clip for 35mm DIN rail mounting (EN 50022 compliant) ensure simple integration into electrical enclosures.

The switch temperature difference is approximately 3K, supported by a PTC sensor element, and the thermostat is designed for long-lasting performance with a contact resistance rated for 100,000 cycles. It can handle a maximum switching capacity of 28V DC at 16A, suitable for demanding thermal management tasks.

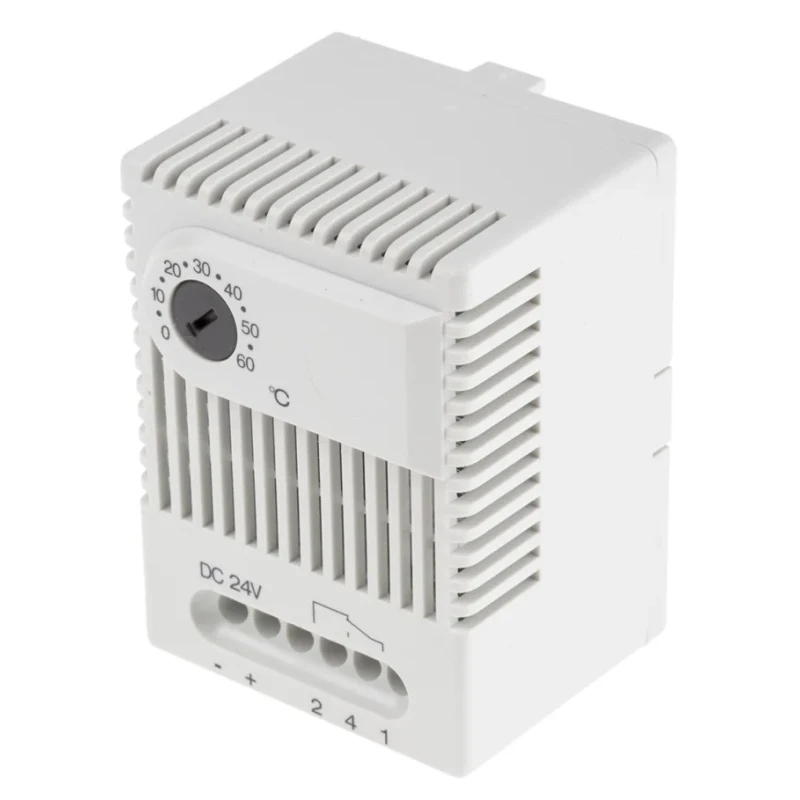

The enclosure thermostat complies with relevant EMC standards, including EN 55014-1-2, EN 61000-3-2, and EN 61000-3-3, ensuring electromagnetic compatibility in industrial and commercial environments. Connection is facilitated by a five-pole terminal designed to accommodate 2.5 mm² wiring, secured with a clamping torque of 0.8Nm for reliable operation.

Operating temperature ranges from 0 to +60 °C with storage tolerance from -45 to +80 °C, making it suitable for various HVAC, electrical automation, and industrial machinery applications. The device is rated to IP20 protection, offering resistance against solid objects while not intended for direct water exposure.

Features a potential free change-over contact suitable for heating, cooling, and signal devices. Offers high DC breaking capacity and adjustable temperature settings. Constructed with a plastic casing rated UL94 V-0 in light grey color for enhanced safety.

Includes a clip for 35mm DIN rail mounting according to EN 50022 standards. Switch temperature difference is approximately 3K for precise control. Utilizes a PTC sensor element with contact resistance tested for 100,000 cycles.

Maximum switching capacity rated at 28V DC, 16A. Complies with EMC standards EN 55014-1-2, EN 61000-3-2, and EN 61000-3-3. Connection enabled by a 5-pole terminal for 2.5mm² wire with a clamping torque of 0.8Nm. Operates reliably within an ambient temperature range from 0 to +60 °C, with storage capability from -45 to +80 °C.

This Enclosure Thermostat is engineered for industrial, laboratory, HVAC, and electrical automation applications requiring reliable temperature regulation. Its mechanical design ensures durability and stable performance in demanding environments.
