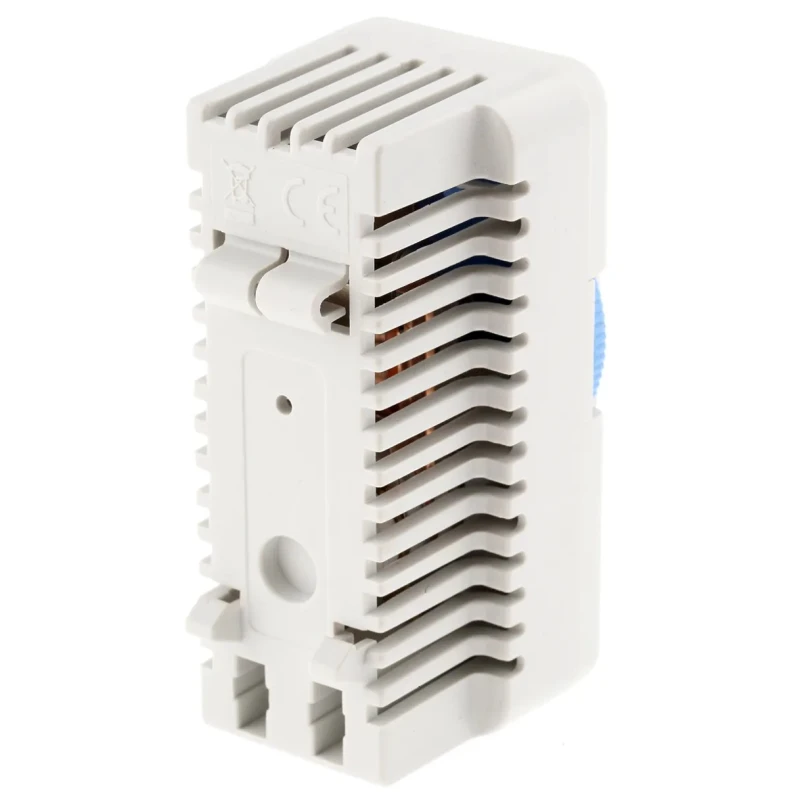

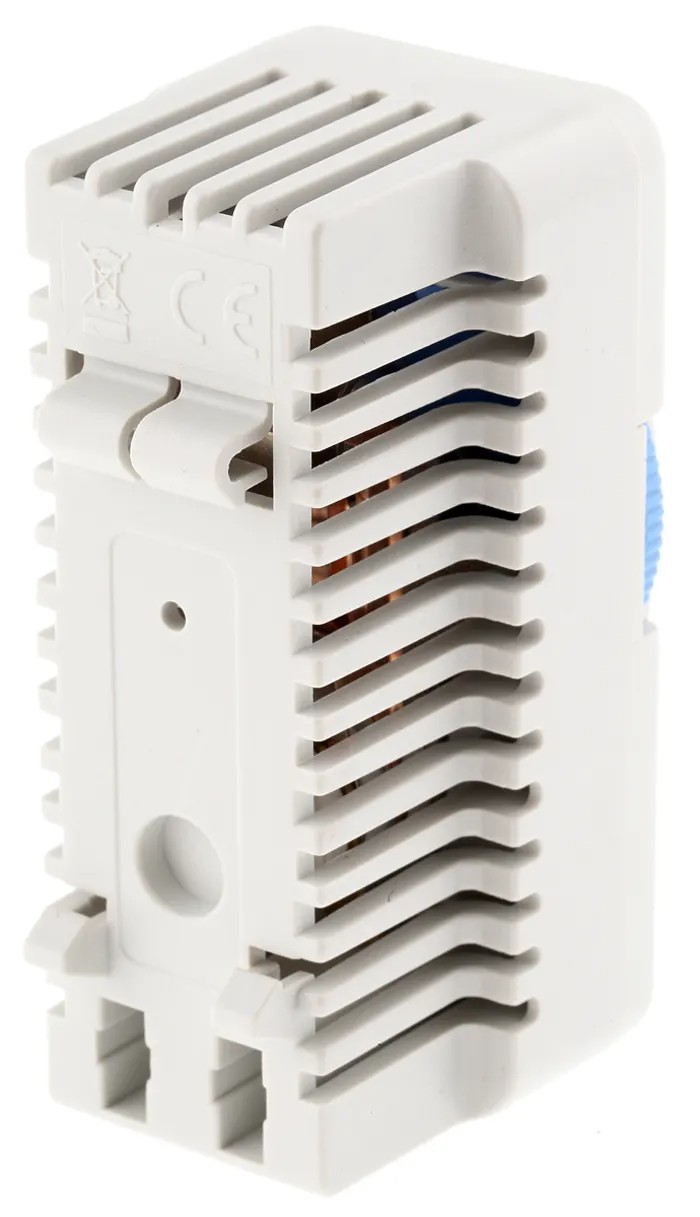

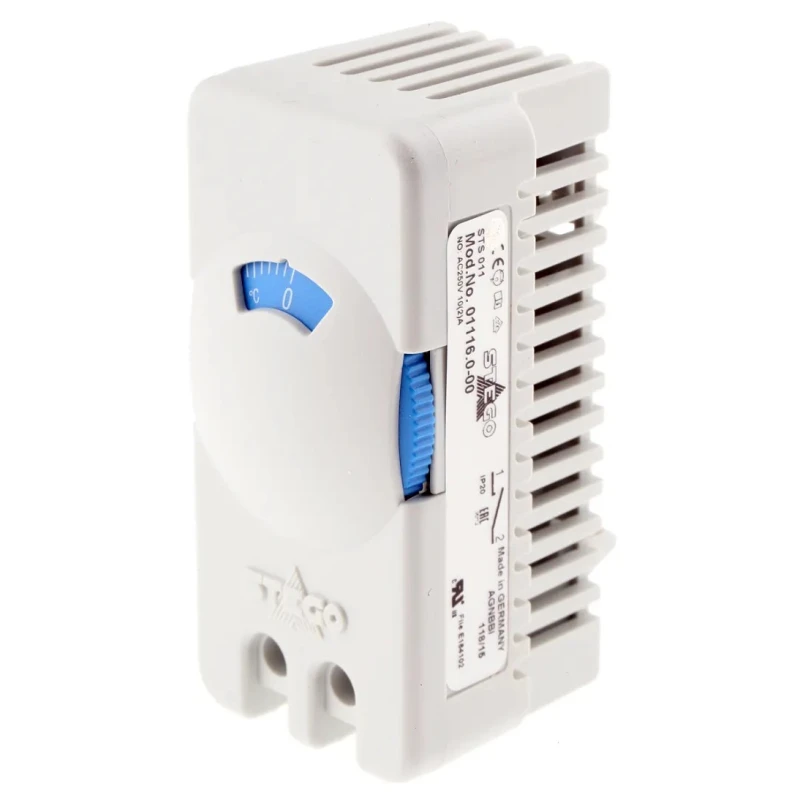

STEGO Enclosure Thermostat NO/NC, 250V AC Supply Voltage, Temperature Range 0 to 60 °C, Max Operating Temp 80 °C 01116.0-00
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | STEGO |
| Dimensions | 70 x 33 x 42mm |
| Mounting | clip for 35mm DIN rail, EN 60715 |
| Protection Type | IP20 |
| Connection | 2-pole terminal for 2.5mm² (AWG 13), torque 1Nm max |
| Gross Weight | approx. 50g |
| Series | ST |
| Casing | plastic according to UL94 V-0, light grey |
| Maximum Operating Temperature | 80°C |
| Switch Configuration | NO/NC |
| Contact Type | snap-action contact |
| Minimum Operating Temperature | 0°C |
| Sensor Element | thermostatic bimetal |
| Temperature setting range | 0 to 60 °C |
| Supply Voltage | 250V ac |
| Standards/Approvals | EN60715, UL, UL94 V-0, VDE |
| Switch temperature difference | 4K (±3K tolerance) |
| Max. inrush current | 16 A ac for 10 sec |
| Operating / Storage temperature | -45 °C to +80 °C (-49 to +176°F) |
| Operating / Storage humidity | max. 90% RH (non-condensing) |
| Fitting position | variable |
| RS PRO NO Thermostat, 10 A, 250V ac, 60 °C, 0 °C, 0 to 60 °CRS Stock No. | 265-1566Brand: RS PRO |
| STEGO KTS 011 NO Enclosure Thermostat, 250V ac, 80 °C, 0 °C, 0 to 60°CBrand | STEGO |
Key Features
- Operates reliably within a temperature setting range of 0 to 60 °C.
- Maximum operating temperature is rated at 80 °C with a minimum of 0 °C.
- Features a thermostatic bimetal sensor element for precise temperature control.
- Compact design includes a clip for 35mm DIN rail mounting compliant with EN 60715.
- Snap-action contact type ensures high switching capacity with 4K ±3K tolerance.
- Plastic casing complies with UL94 V-0 standard for flame resistance.
- Protection rating is IP20 for indoor electrical enclosure environments.
- Suitable for industrial HVAC, air conditioning, and thermal management applications.
Product Description
STEGO 01116.0-00 enclosure thermostat is a compact and reliable temperature regulation device designed for electrical enclosures and industrial HVAC systems. It supports a 250V AC supply voltage and offers precise temperature control within a range of 0 to 60 °C. The thermostat uses a thermostatic bimetal sensor element coupled with a snap-action contact for efficient switching with minimal hysteresis.
The device’s maximum operating temperature is 80 °C, with a minimum operating temperature of 0 °C, making it suitable for a variety of thermal management and air conditioning applications. Its plastic casing is manufactured according to the UL94 V-0 flame retardant standard and is light grey in color, providing durability and safety in industrial environments.
Designed for easy installation, the thermostat mounts via a clip for 35mm DIN rails compliant with EN 60715. It features a switch temperature difference of approximately 4 Kelvin, with ±3 Kelvin tolerance, ensuring reliable operation protecting equipment from overheating or frost damage. The IP20 protection rating offers basic protection against solid objects and suitable for indoor electrical enclosure use.
The compact dimensions (70 x 33 x 42 mm) and lightweight design (approx. 50 grams) facilitate integration into control panels, enclosures, and filter fans. Applications include regulating heaters, heat exchangers, and switching signal devices in industrial, commercial, HVAC, manufacturing, and laboratory environments.
Operates reliably within a 0 to 60 °C temperature setting range. Compact click dial design optimized for air circulation around the bimetal sensor. Snap-action contacts provide long service life and precise switching. Plastic enclosure compliant with UL94 V-0 ensuring flame resistance.
Mounts securely on standard 35mm DIN rails. Ideal for temperature regulation in electrical enclosures and HVAC systems. Switch configuration NO/NC supports heater control and fan regulation. Temperature differential accommodates small hysteresis for accuracy.
Protection class IP20 suitable for protected indoor use.
Choose STEGO Enclosure Thermostats for industrial and commercial thermal management solutions to ensure effective temperature control and protection of electrical components. Explore more related products and accessories in the HVAC and electrical enclosures categories on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates reliably within a temperature setting range of 0 to 60 °C.
The maximum operating temperature is rated at 80 °C.
It features a thermostatic bimetal sensor element for precise temperature control.
It mounts via a clip for 35mm DIN rails compliant with EN 60715.
The thermostat has an IP20 protection rating, suitable for indoor electrical enclosure environments.
It operates with a supply voltage of 250V AC.
It has compact dimensions of 70 x 33 x 42 mm and weighs approximately 50 grams.
The switch configuration is NO/NC, allowing for versatile applications in temperature control.
The maximum inrush current is 16 A AC for 10 seconds.
The operating and storage temperature range is from -45 °C to +80 °C.
It complies with EN60715, UL, UL94 V-0, and VDE standards.
It is suitable for industrial HVAC, air conditioning, and thermal management applications.
