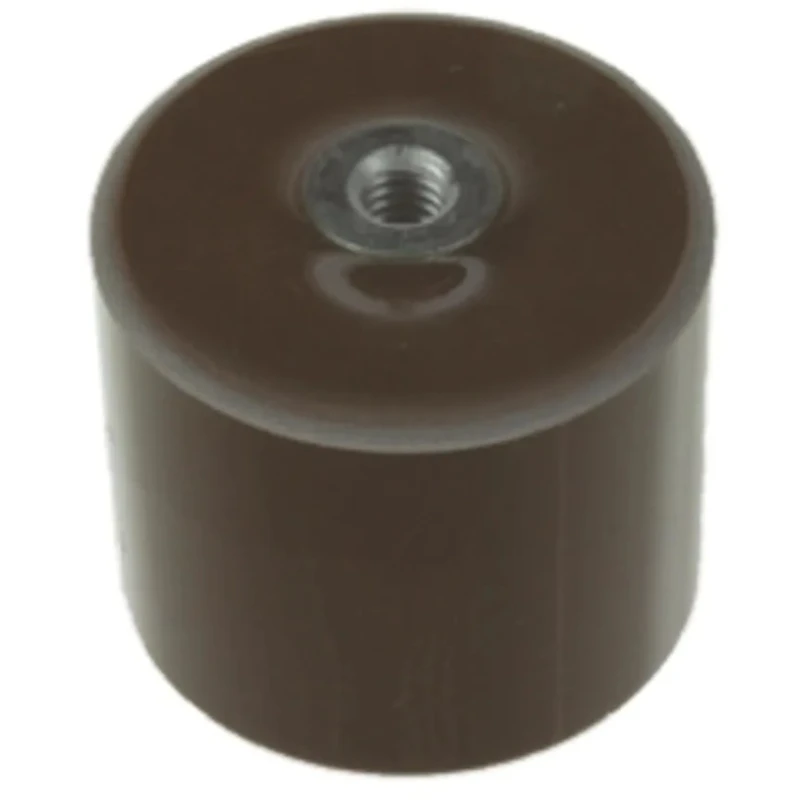

TDK Single Layer Ceramic Capacitor 100 pF 50 kV dc ±10% Z5T Dielectric, UHV Series, Screw Terminal, 85 °C Max UHV-251A

TDK UHV-251A Single Layer Ceramic Capacitor is a Class 2 moulded ceramic capacitor designed for ultra-high voltage applications. It features a capacitance value of 100 pF and a high voltage rating of 50 kV dc, making it suitable for demanding environments such as high voltage power supplies and laser equipment.

The capacitor employs a Z5T dielectric material ensuring high capacitance stability and low dissipation factor over a temperature range from -30 °C up to 85 °C. The compact dimensions of 35 mm in length, 20 mm in height, and 20 mm in diameter allow easy integration in various electronic assemblies.

Equipped with screw terminals for secure and easy mounting, this moulded type capacitor belongs to the UHV (Ultra-High Voltage) series, emphasizing its capability to handle elevated voltages effectively. Its ±10% capacitance tolerance ensures reliable performance under specified conditions.

This product is packaged in bulk and does not comply with automotive standards, as it is primarily developed for industrial, laboratory, and specialized electrical applications.

Applications include high voltage power supplies, laser equipment, and other high voltage electronic components where ceramic capacitors are preferred for their voltage handling and temperature characteristics.

Class 2 moulded ceramic capacitor with high capacitance and stable temperature characteristics. Screw terminal type for secure mounting and maintenance ease. Compact design to fit diverse electronic assemblies. Wide operating temperature range from -30 °C to 85 °C.

High voltage rating of 50 kV dc with ±10% tolerance for precision. Ideal for use in high voltage power supplies and laser equipment. Explore more high-quality capacitors and related electronic components available at EnvMart to meet your industrial and technical requirements.
