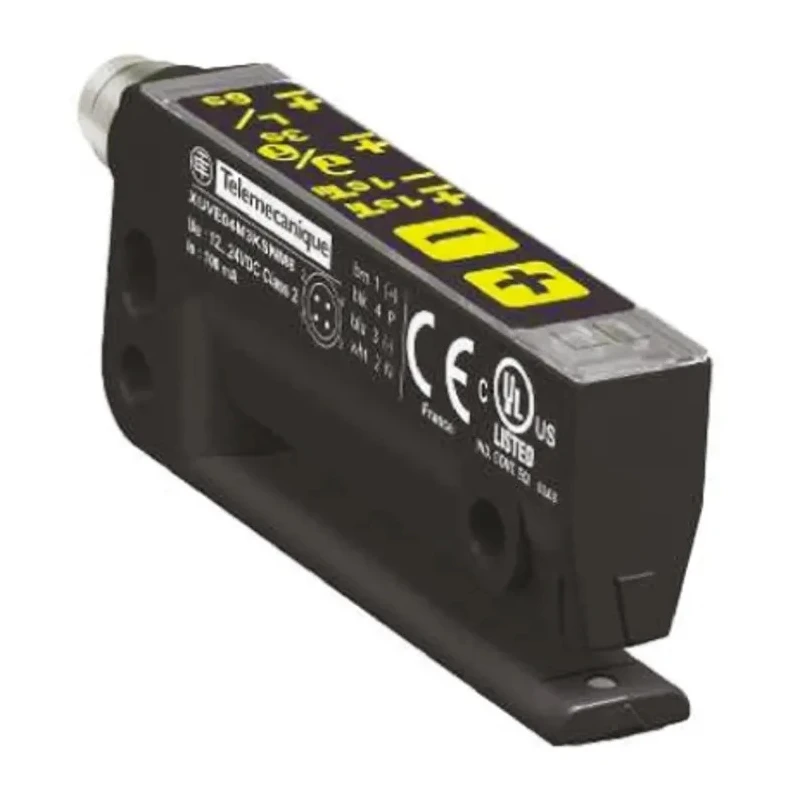

Telemecanique Sensors Through Beam Photoelectric Fork Sensor 3 mm, Infrared Light Source, NPN Output, IP65 XUVE04M3NSNM8
Specifications
| Country of Origin | India |
|---|---|
| Brand | Telemecanique Sensors |
| Response time | 50μs |
| Light Source | Infrared |
| Detection range | 3 mm |
| Model | XUVE04M3NSNM8 |
| Depth | 40 mm |
| IP Rating | IP65 |
| Housing Material | Thermoplastic |
| Output type | NPN |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Maximum Current | 100mA |
| DetectIon Type | Through Beam |
| Terminal type | 4-Pin M8 |
| Detection Accuracy | +/- 50 μm at 150 m/min |
| Maximum dc Voltage | 24V dc |
| Sensor Style | Fork |
| Minimum length of label and minimum distance between two labels | 2 mm |
| Indicator lights | Output state Yellow LED, Adjustment and keypad locking Red LED |
Key Features
- Infrared light source provides precise sensing performance.
- Fork style sensor designed for accurate detection of opaque labels.
- IP65 rated thermoplastic housing ensures robust protection against dust and water.
- Fully adjustable output state indication with yellow LED and adjustment locking via red LED.
- Operates between -20°C and 60°C with a 24V DC maximum voltage rating.
- Response time of 50 microseconds for fast sensor detection.
- Consistent detection accuracy of +/- 50 μm at speeds up to 150 m/min.
- 4-pin M8 connector terminal type suitable for secure wiring.
Product Description
Telemecanique Sensors XUVE04M3NSNM8 through beam photoelectric fork sensor delivers precise and reliable detection in industrial automation applications with a 3 mm detection range. Its infrared light source and thermoplastic housing provide high durability and performance under demanding conditions.
This fork sensor is specifically designed for detecting opaque labels with a minimum length of 2 mm and minimum spacing between labels of 2 mm. It offers an exceptional detection accuracy of +/- 50 μm at speeds up to 150 m/min, making it ideal for fast-moving production lines.
The sensor operates on a maximum 24V DC supply and supports a maximum current of 100 mA. The 4-pin M8 terminal ensures secure connections. With an IP65 ingress protection rating, it is highly resistant to dust and water.
Indicator LEDs include a yellow LED to visibly show the output state and a red LED for adjustment and keypad locking functions, enabling ease of setup and monitoring. The fast response time of 50 microseconds ensures prompt detection.
This product suits industrial environments requiring accurate object detection such as manufacturing automation, packaging lines, labelling machines, and quality control systems. Infrared light source provides precise sensing performance.
Fork style sensor designed for accurate detection of opaque labels. IP65 rated thermoplastic housing ensures robust protection against dust and water. Fully adjustable output state indication with yellow LED and adjustment locking via red LED.
Operates between -20°C and 60°C with a 24V DC maximum voltage rating. Response time of 50 microseconds for fast sensor detection. Consistent detection accuracy of +/- 50 μm at speeds up to 150 m/min. 4-pin M8 connector terminal type suitable for secure wiring.
Maximum current rating of 100mA to support electronic load demands. Explore the extensive range of Photoelectric Sensors available at EnvMart for industrial automation and sensing applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this model is 3 mm, specifically designed for detecting opaque labels with a minimum length of 2 mm and minimum spacing between labels of 2 mm.
This sensor operates at a maximum temperature of 60°C and a minimum temperature of -20°C.
It features an NPN output type, suitable for various industrial applications.
The response time of this unit is 50 microseconds, allowing for fast sensor detection.
The housing of this sensor has an IP65 rating, providing protection against dust and water ingress.
This sensor supports a maximum current of 100 mA, which is suitable for electronic load demands.
It uses an infrared light source to provide precise sensing performance.
The sensor is equipped with a 4-pin M8 connector terminal type for secure wiring connections.
The detection accuracy is +/- 50 μm at speeds up to 150 m/min, making it effective for fast-moving applications.
It features a yellow LED for output state indication and a red LED for adjustment and keypad locking functions.
This model is suitable for industrial environments requiring accurate object detection, such as manufacturing automation, packaging lines, and quality control systems.
The housing is made from thermoplastic, ensuring durability in various industrial conditions.
