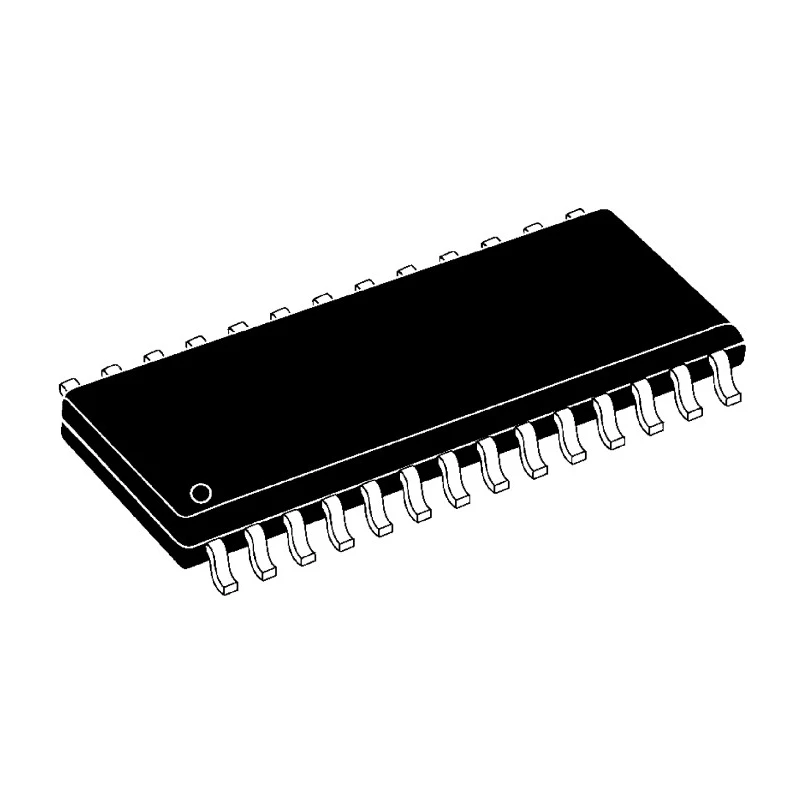

Microchip 8 bit PIC Microcontroller 20 MHz 14kB FLASH 28-Pin SOIC PIC16F1516-I/SO

Microchip PIC16F1516-I/SO is an 8 bit PIC Microcontroller designed for reliable and efficient embedded applications. It features a 20 MHz maximum clock frequency and 14kB of FLASH program memory housed in a 28-Pin SOIC surface mount package, making it suitable for compact circuit designs.

This microcontroller employs a PIC core with 8 bit data bus width and offers 512 bit RAM alongside 25 programmable input/output pins for flexible interfacing. Its operational voltage range lies between 2.5V minimum and 5.5V maximum, with a maximum power dissipation of 800mW, ensuring energy-efficient performance.

The device integrates 2 timers and provides a 17-channel 10-bit analogue to digital converter (ADC), granting high precision for sensor and signal processing tasks. It supports an enhanced mid-range RISC instruction set architecture, enabling up to 5 million instructions per second (MIPS) execution speed.

This model includes peripheral features such as power-on reset, power-up timer, programmable low power brown-out reset, extended watchdog timer, in-circuit serial programming (ICSP), in-circuit debugging (ICD), and enhanced low-voltage programming (LVP), facilitating robust control and development.

Operating temperature spans industrial grade range from -40°C to 85°C. The compact physical dimensions are 17.9 mm length, 7.5 mm width, and 2.35 mm height, appropriate for space-constrained designs. The product is made in Thailand and delivered in new condition.

Ideal for diverse applications including embedded systems, industrial control, automotive electronics, consumer devices, and instrumentation. The microcontroller’s versatile peripheral set supports serial communication interfaces SPI, I2C, and EUSART enabling integration in complex systems.

Operates at maximum clock frequency of 20 MHz. Contains 14kB FLASH program memory and 512 bit RAM. Surface mount package SOIC with 28 pins. Supports 17 channel 10-bit ADC inputs. Industrial temperature range of -40°C to 85°C for harsh environments.

Includes multiple timers and PWM modules for control applications. Provides advanced on-chip debug and programming features. Power-efficient operation with low voltage and brown-out detection. Browse the Microcontroller category for more high-performance semiconductor solutions at EnvMart.
