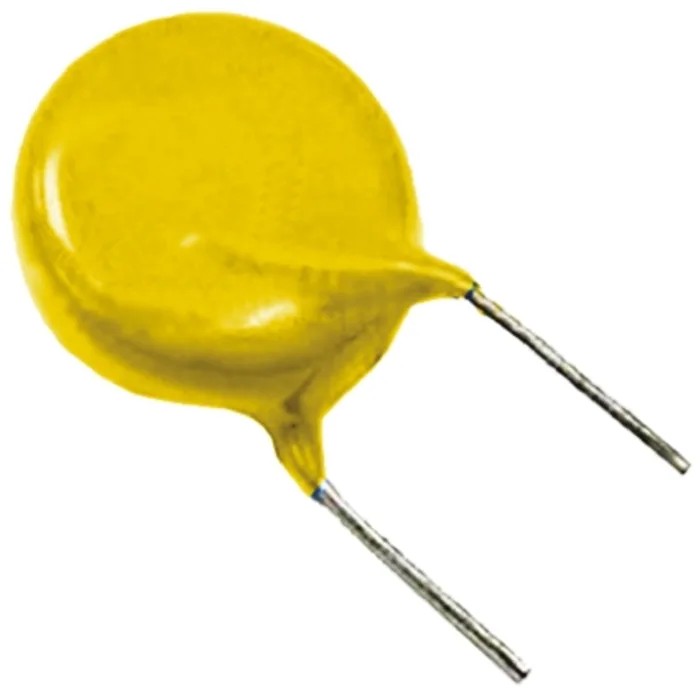

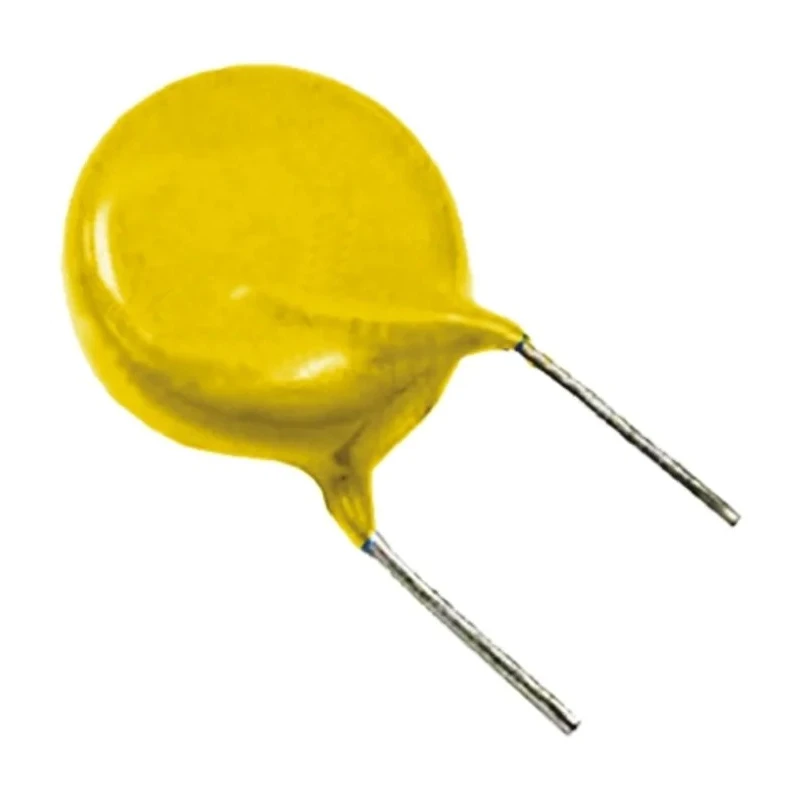

Vishay Single Layer Ceramic Capacitor 1 nF 500V AC ±20% Y5U Dielectric Through Hole Disc 125°C Max VY1102M35Y5UQ6TV0
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 500V ac |
| Diameter | 9mm |
| Brand | Vishay |
| Height | 12mm |
| Model | VY1102M35Y5UQ6TV0 |
| Width | 5mm |
| Mount Type | Through Hole |
| Series | VY1 |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±20 % |
| Capacitance | 1nF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Dissipation Factor | 2.5% |
| Standards/Approvals | CSA, IEC 60384-14, RoHS, DIN EN 60384-14 |
| Package/Case | Disc |
| Pin Count | 2 |
| Dielectric | Y5U |
Key Features
- Capacitance rating of 1 nanofarad with Y5U dielectric provides stable AC performance.
- Through hole mount type with silver-plated disc and solder terminal leads.
- Maximum operating temperature up to 125 °C ensuring reliable operation in harsh conditions.
- Disc dimensions approximately 9 mm diameter and 5 mm width with 12 mm height, compact for PCB placement.
- Complies with IEC 60384-14 and relevant international safety standards for X1/Y1 AC safety capacitors.
- Flame retardant epoxy resin encapsulation meets UL 94 V-0 for fire safety.
- Lead spacing options include 10.0 mm or 12.5 mm with kinked or straight inline leads.
- Applications include across-the-line filtering, line by-pass, and antenna coupling in industrial and electronic equipment.
Product Description
Vishay VY1102M35Y5UQ6TV0 is a single layer ceramic capacitor with a capacitance value of 1 nF and a rated AC voltage of 500 V. Constructed with Y5U dielectric, this capacitor is designed for reliable performance in electronic equipment requiring safety compliant AC capacitors. It features a disc package with silver plating on both sides and tinned copper clad steel connection leads suitable for through-hole mounting on PCBs.
The capacitor supports operating temperatures ranging from -40 °C up to a maximum of 125 °C, making it suitable for demanding industrial and commercial applications. The flame retardant epoxy resin encapsulation conforms to stringent fire safety standards (UL 94 V-0). Lead spacing options offer flexibility in layout design with either 10 mm or 12.5 mm spacing and options for kinked or straight inline leads.
Engineered to comply with IEC 60384-14 4th edition and CSA certifications, it meets safety classifications for X1 and Y1 rated capacitors, widely used for across-the-line, line by-pass, and antenna coupling applications. Its dissipation factor is approximately 2.5%, balancing performance and safety needs.
This capacitor is sourced from China and is supplied as new condition direct from Vishay. It is ideal for use in industrial electronics, power supplies, HVAC systems, and various electronic assemblies requiring certified, reliable AC safety capacitors.
Capacitance rating of 1 nF with Y5U dielectric for AC applications. Rated voltage: 500 V AC supporting safety line filtering. Disc package size approximately 9 mm diameter by 5 mm width and 12 mm height. Through-hole mounting with silver-plated discs and solder terminals.
Maximum operating temperature up to 125 °C certified for industrial use. Flame retardant epoxy resin encapsulation with UL 94 V-0 certification. Lead spacing available at 10.0 mm or 12.5 mm with kinked or straight leads.
Approved standards: IEC 60384-14, CSA, RoHS, DIN EN 60384-14. Use cases include across-the-line, line by-pass, and antenna coupling circuits.
Shop Vishay capacitors at EnvMart for dependable performance in electronics manufacturing, repair, and design projects. Browse our extensive catalog of certified and compliant electronic components.
Explore more products in our Single Layer Ceramic Capacitors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitor has a capacitance rating of 1 nanofarad (nF).
This model can operate at a maximum temperature of 125 °C.
It has a rated voltage of 500V AC.
The capacitor uses a Y5U dielectric, which provides stable AC performance.
The capacitor has a diameter of approximately 9 mm, a width of 5 mm, and a height of 12 mm.
Lead spacing options for this unit include 10.0 mm or 12.5 mm, with kinked or straight inline leads.
This capacitor supports through-hole mounting.
It complies with IEC 60384-14, CSA, and is RoHS certified.
The dissipation factor is approximately 2.5%.
The minimum operating temperature is -40 °C.
It is suitable for across-the-line filtering, line by-pass, and antenna coupling in industrial and electronic equipment.
This capacitor features solder terminals for connection.
