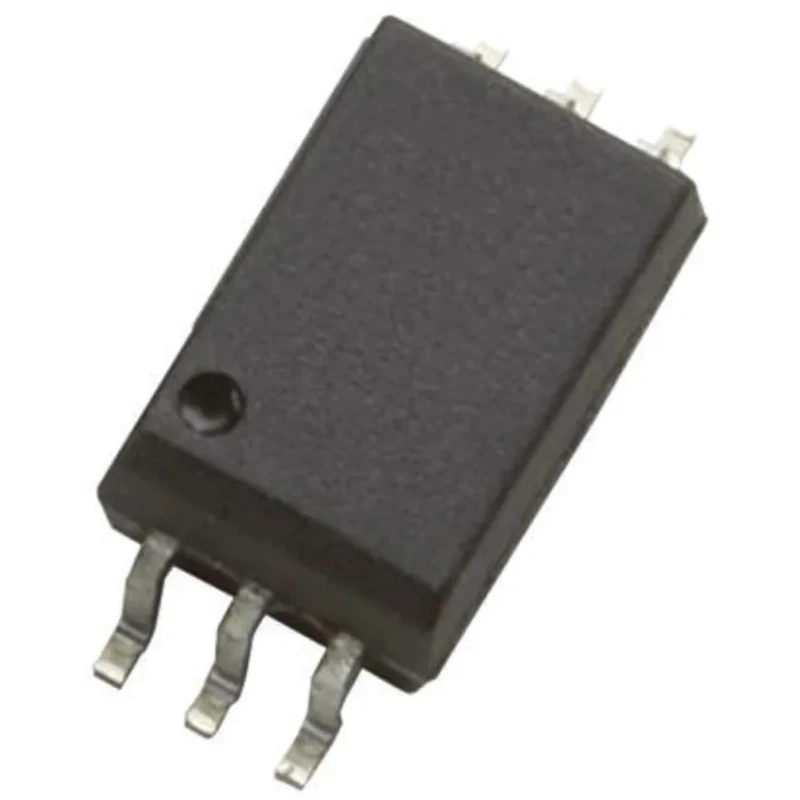

Broadcom DC Input Optocoupler Surface Mount 6-Pin SO Package ACPL-P302-000E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | ACPL-P302-000E |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | ACPL |
| Maximum Operating Temperature | 100°C |
| Package Type | SO |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 12mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL1577, IEC/EN/DIN EN 60747-5-5, CSA |
| Maximum Forward Voltage | 1.8V |
| Number of Pins | 6 |
| Input Current Type | DC |
| Typical Rise Time | 50ns |
| Isolation Voltage | 3750V ac |
Key Features
- The optocoupler features a maximum forward voltage of 1.8V.
- It supports isolation voltage up to 3750V AC for reinforced insulation.
- Designed for DC input with a maximum input current of 12mA.
- Typical switching rise and fall times are 50ns, enabling fast signal propagation.
- Operating temperature range from -40°C to 100°C ensures reliability in harsh environments.
- Complies with UL1577, IEC/EN/DIN EN 60747-5-5, and CSA standards.
- Single channel device suitable for isolated gate driver applications with logic output.
- Packaged in Tape & Reel format for automated manufacturing compatibility.
Product Description
Broadcom ACPL-P302-000E DC Input Optocoupler is a high-performance surface mount device housed in a 6-pin SO package. This optocoupler provides isolation and protection for logic signals against high voltages typically found in industrial power switching systems.
The device offers a maximum forward voltage of 1.8V and supports a maximum input current of 12mA. Its isolation voltage rating of 3750V AC and reinforced insulation make it suitable for critical applications including motor controls, industrial inverters, and power supplies.
The typical rise and fall times of 50ns ensure rapid switching capabilities, enabling efficient signal transmission with minimal delay. With an operating temperature range from -40°C to 100°C, the device is robust enough for demanding environmental conditions.
Designed by Broadcom, this optocoupler complies with UL1577, IEC/EN/DIN EN 60747-5-5, and CSA standards, assuring quality and safety for industrial use. The optocoupler supports isolated gate driving of IGBT and power MOSFET transistors.
Rail-to-rail output and high common mode rejection enhance signal integrity in noisy environments. Tape & Reel packaging facilitates automated large-scale manufacturing and assembly. Single channel, logic output configuration suits diverse applications requiring electrical isolation.
Broadcom's R2Coupler™ technology provides reinforced insulation and reliability in automotive and high temperature use cases.
This product is widely used in industrial automation, motor control, power conversion, and other electronic systems requiring isolated digital signal transmission. It offers reliable performance supporting the design of safe and efficient control circuits.
Explore the extensive range of Optocouplers available on EnvMart to find compatible components for your electronics projects and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum isolation voltage of the Broadcom ACPL-P302-000E optocoupler is 3750V AC, providing reinforced insulation for critical applications.
The maximum input current supported by this optocoupler is 12mA, allowing for effective signal transmission.
The typical rise and fall times for the ACPL-P302-000E are 50ns, enabling fast signal propagation.
It complies with UL1577, IEC/EN/DIN EN 60747-5-5, and CSA standards, ensuring quality and safety for industrial applications.
The ACPL-P302-000E is packaged in Tape & Reel format, facilitating automated manufacturing and assembly.
This model features a single channel configuration, suitable for isolated gate driver applications.
The maximum forward voltage for the ACPL-P302-000E is 1.8V, which is critical for its operation.
It is a surface mount device, designed for easy integration into various electronic systems.
The package type for the ACPL-P302-000E is SO (Small Outline), which is common for surface mount devices.
The country of origin for this optocoupler is India, reflecting its manufacturing location.
