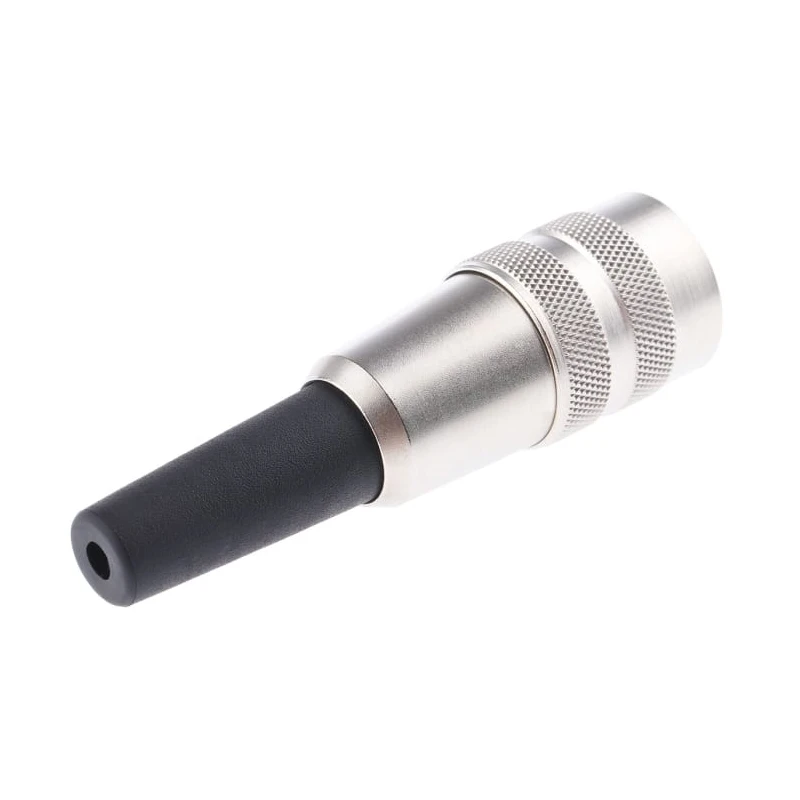

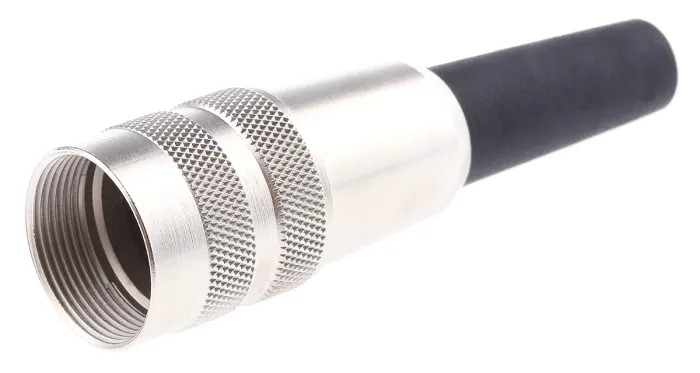

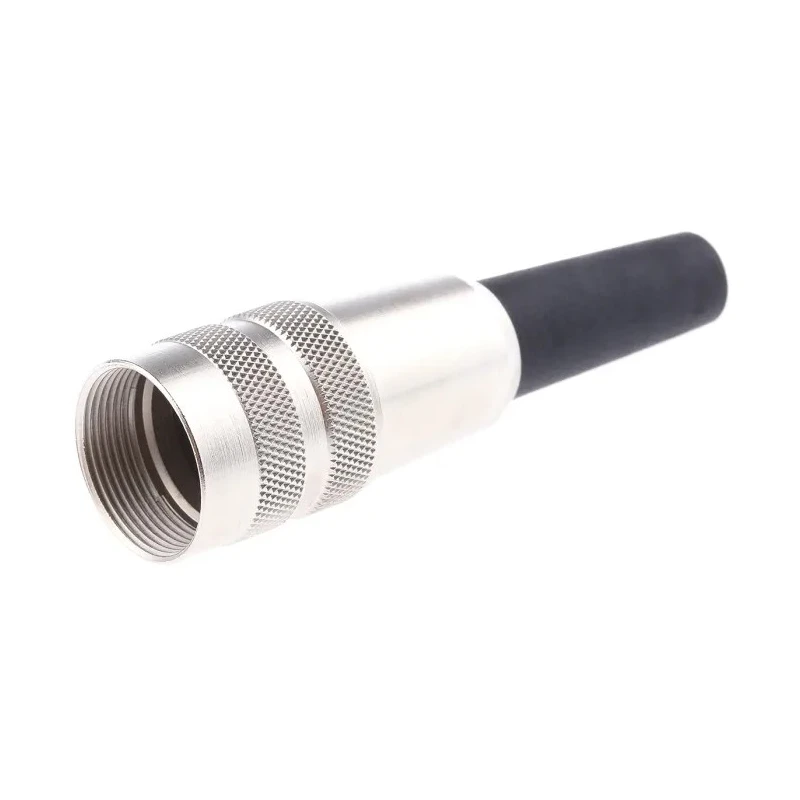

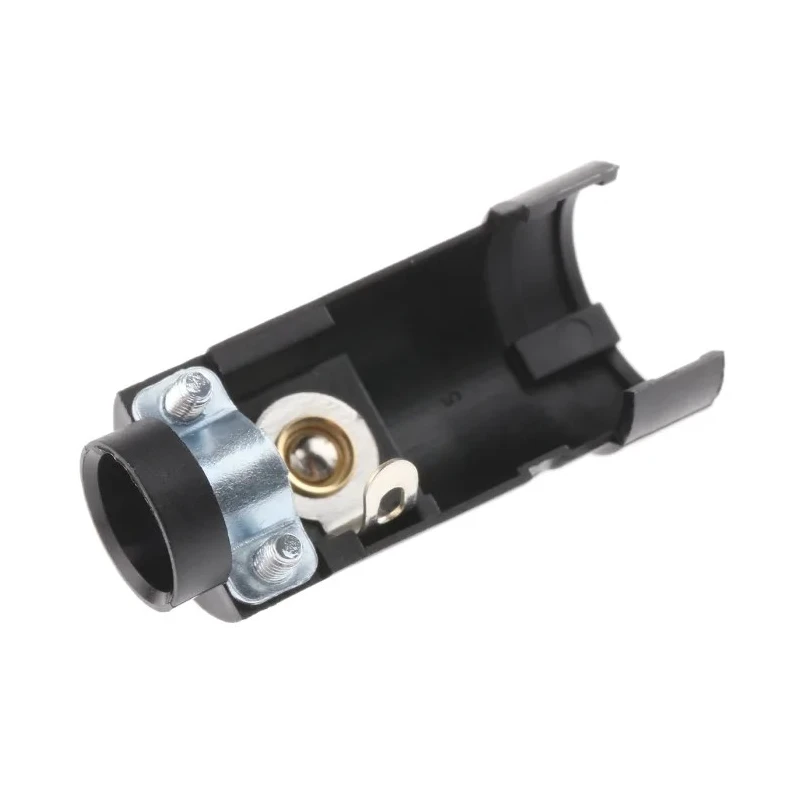

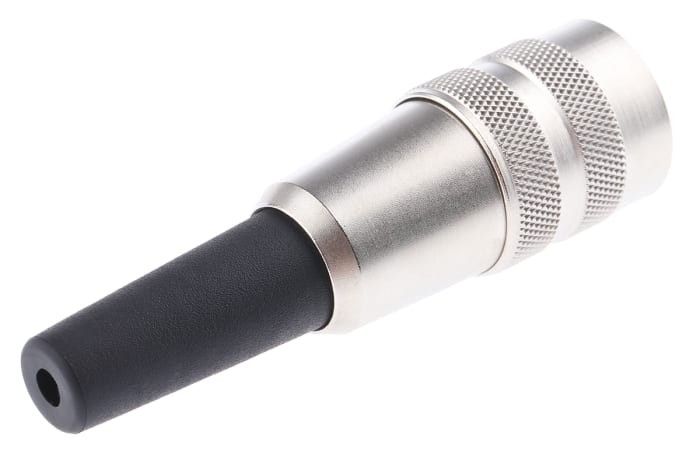

binder Circular Connector 2 Contacts Cable Mount M16 Socket Female IP40 Metal Housing 680 Series 09-0302-00-02
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 250V |
| Brand | binder |
| Orientation | Straight |
| Current | 7A |
| IP Rating | IP40 |
| Mount Type | Cable |
| Housing Material | Metal |
| Contact Material | Bronze |
| Series | 680 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Silver |
| Number of Contacts | 2 |
| Contact Gender | Female |
| Shell Size | 17.2 |
| Mating Type | Screw Lock |
| Connector Size | M16 |
| Plug/Socket | Socket |
Key Features
- Designed with a compact miniature 680 series metal shell for excellent EMI shielding.
- Features 2 durable contacts with silver plating and bronze contact material.
- Incorporates a screw locking mechanism ensuring secure mating connections.
- Rated for 7 amperes current and 250 volts voltage operation.
- Supports operating temperature range from -40°C to 85°C for versatile industrial use.
- Uses solder termination type for reliable and stable cable connections.
- IP40 ingress protection suitable for indoor dust-free environments.
- Connector size M16 with 17.2 mm shell size and straight orientation.
Product Description
binder 09-0302-00-02 Circular Connector is a high-performance cable mount socket designed for industrial electronic applications. This 680 series miniature circular connector features 2 female contacts housed in a robust metal shell with silver-plated bronze contacts, suitable for secure and reliable connections in automation and instrumentation systems.
The connector supports a 7A current capacity and operates at up to 250V, with a temperature range from -40°C to 85°C ensuring wide environmental suitability. The solder termination type enhances long-term connection stability, while the screw lock mating mechanism provides firm and vibration-resistant coupling.
IP40 ingress protection makes this connector ideal for indoor use without exposure to dust or moisture. Its compact M16 size with 17.2 mm shell diameter supports easy integration into existing setups that require miniature circular connectors.
This connector series is commonly found in industrial instrumentation, process control equipment, machine tools, medical and plant equipment, and general industrial automation, providing consistent and dependable performance.
Compact miniature design with metal shell for robust electromagnetic interference shielding. Silver-plated bronze contacts ensure durable, low-resistance electrical connections. Screw lock mating type provides secure and precise connector engagement.
Solder termination enhances cable retention and connectivity reliability. Wide operating temperature range from -40°C to 85°C suits demanding industrial environments. IP40 rated, suitable only for indoor applications without dust or water exposure.
Mating orientation is straight to simplify assembly and minimize cable stress. Manufactured to high-quality standards in Germany ensuring product reliability.
Explore more Industrial Circular Connectors by binder and find comprehensive solutions for setting up reliable electrical connections in industrial, manufacturing, and automation projects on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 7 amperes and a voltage of 250 volts.
It supports an operating temperature range from -40°C to 85°C, making it suitable for various industrial environments.
This connector uses solder termination, which provides reliable and stable cable connections.
It has an IP40 ingress protection rating, suitable for indoor use in dust-free environments.
The housing is made of metal, and the contacts are bronze with silver plating for enhanced conductivity.
The connector size is M16, with a shell diameter of 17.2 mm.
The screw lock mating type ensures secure and precise engagement, providing a firm and vibration-resistant connection.
This model features a straight orientation, which simplifies assembly and minimizes cable stress.
It is commonly found in industrial instrumentation, process control equipment, machine tools, medical equipment, and general industrial automation.
It is manufactured in Germany, ensuring adherence to high-quality standards.
This connector features 2 female contacts, designed for reliable connections in various applications.
The silver plating on the bronze contacts enhances durability and ensures low-resistance electrical connections.
