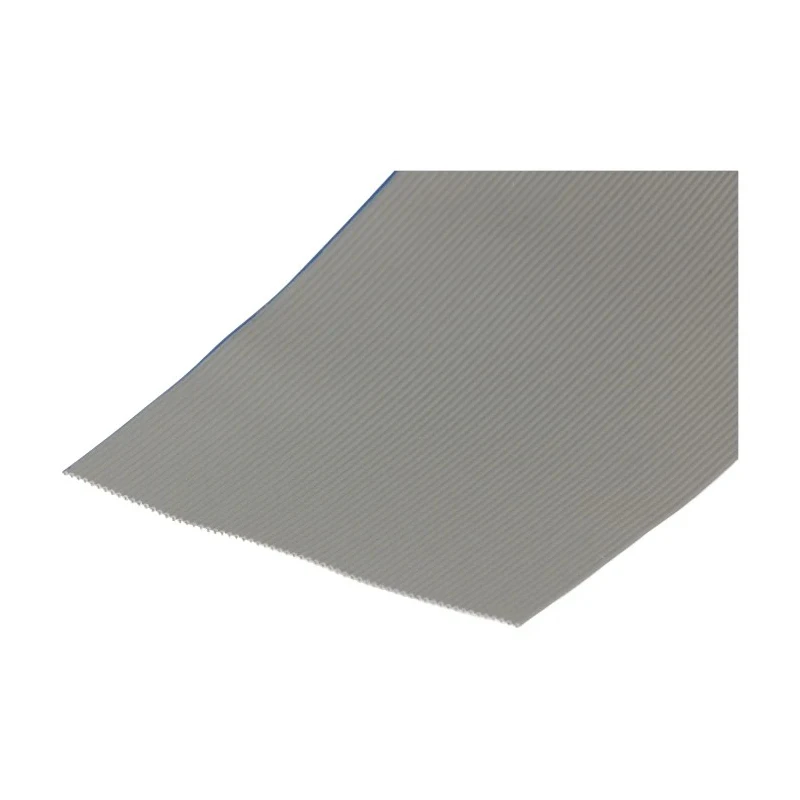

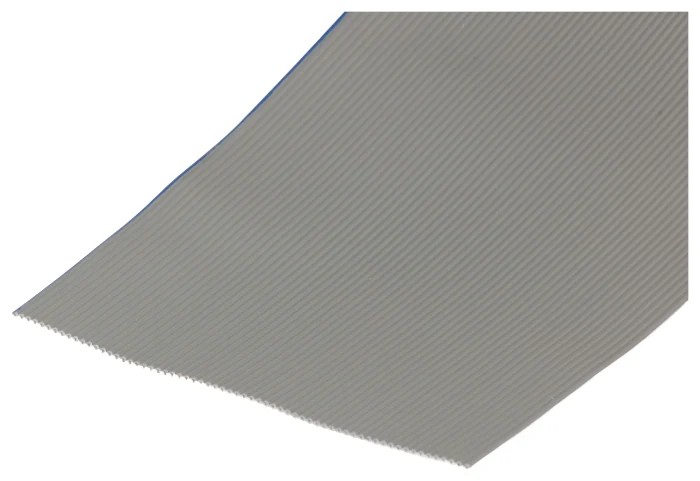

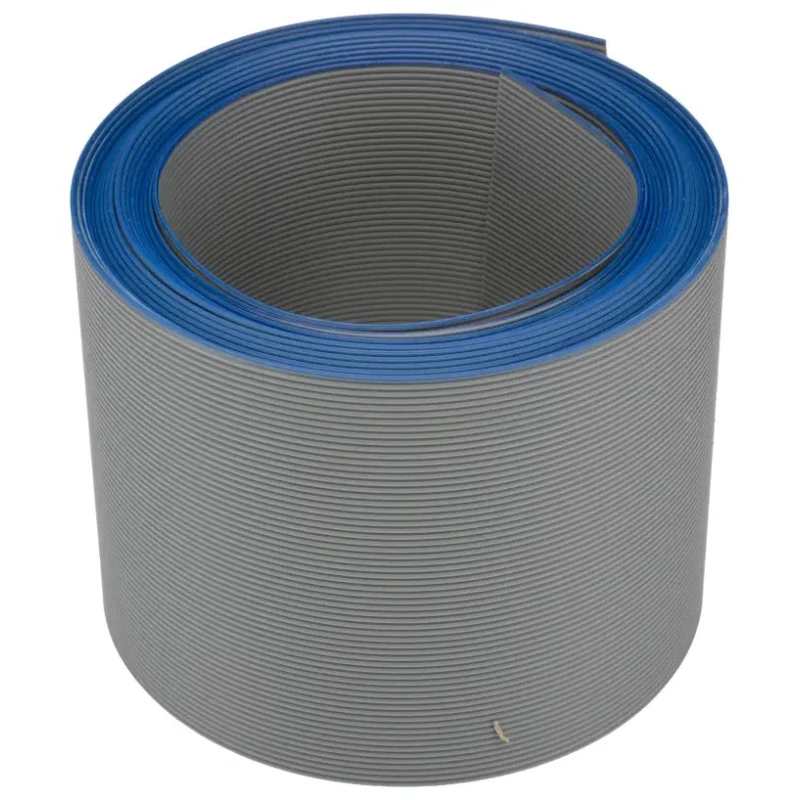

3M HF365 Series Ribbon Cable Flat 1.27 mm Pitch 64 Conductors 28AWG Stranded Copper 5 m Length
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 300V |
| Brand | 3M |
| Model | HF365 |
| Cable Length | 5m |
| Series | HF365 |
| Maximum Operating Temperature | 105°C |
| Conductor Material | Tin Plated Copper |
| Cable Type | Flat |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Polyolefin |
| Pitch | 1.27mm |
| Jacket Colour | Dark Grey |
| Fire Behaviour | Low Smoke Zero Halogen (LSZH) |
| American Wire Gauge | 28AWG |
| Screened/Unscreened | Unscreened |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 36AWG |
| Size of Strands | 36AWG |
| Number of Conductors | 64 |
| 3M Ribbon Cable, 64-Way, 1.27mm PitchBrand | 3M |
Key Features
- Compact flat cable design ideal for dense connector interfaces.
- 64 stranded conductors of 28AWG provide excellent flexibility and bending endurance.
- Tin plated copper conductors ensure corrosion resistance and stable contact.
- Polyolefin dark grey jacket offers chemical resistance and durability.
- Low Smoke Zero Halogen (LSZH) fire behavior reduces toxic fumes in case of fire.
- Rated for continuous operation between -40°C and 105°C.
- Unscreened cable requiring external EMI protection if needed.
- UL recognized with file E42769 and style number 21682 for safety assurance.
Product Description
3M HF365 HF365-64 ribbon cable is a flat, multi-conductor cable engineered for reliable and flexible interconnection solutions in industrial, automation, and electronic applications. This 64-conductor, 28AWG stranded cable features a 1.27 mm pitch, optimized for dense connector interfaces where space-saving and precise wiring are essential.
The cable's stranded conductor construction with seven fine strands enhances flexibility and bending endurance during repeated flexing, making it ideal for robotics and moving equipment harnessing. Copper conductors are tin plated to resist corrosion, ensuring stable and consistent contact over time.
The polyolefin jacket in dark grey color provides chemical resistance suitable for enclosure environments. This ribbon cable exhibits Low Smoke Zero Halogen (LSZH) fire behavior, producing minimal smoke and no halogenated gases, thus reducing toxic emissions in enclosed spaces and enhancing safety.
Operating temperatures range from -40°C to 105°C, allowing the cable to perform reliably in conditions from cold storage to elevated temperature electronics interiors. The unscreened design requires external earthing or shielding for electromagnetic interference (EMI) mitigation when necessary.
Compact flat cable design ideal for dense connector interfaces. 64 stranded conductors of 28AWG provide excellent flexibility and bending endurance. Tin plated copper conductors ensure corrosion resistance and stable contact.
Polyolefin dark grey jacket offers chemical resistance and durability. Low Smoke Zero Halogen (LSZH) fire behavior reduces toxic fumes in case of fire. Rated for continuous operation between -40°C and 105°C. Unscreened cable requiring external EMI protection if needed.
Compliant with IEC 61249-2-21, NF X 70-100-2:2006, IEC 61034-2:2005 standards. UL recognized with file E42769 and style number 21682 for safety assurance. Suitable for automation controllers, robotics harnessing, signal routing, and ribbon-to-board connections.
This product is manufactured in the United States and is suitable for industrial automation, manufacturing, instrumentation, and electronic assemblies requiring compact, flexible ribbon cable solutions. Explore more from 3M and related Ribbon Cable products on EnvMart for your wiring and connectivity needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this ribbon cable is 105°C.
The conductor material used in this cable is tin plated copper.
This ribbon cable has a total of 64 conductors.
The pitch of the conductors in this model is 1.27 mm.
The jacket material used in this cable is polyolefin, which is dark grey in color.
The voltage rating for this ribbon cable is 300V.
The HF365 series cable is unscreened, which may require external EMI protection if needed.
The minimum operating temperature for this model is -40°C.
This ribbon cable complies with IEC 61249-2-21, NF X 70-100-2:2006, and IEC 61034-2:2005 standards.
The conductors in this cable are stranded, with seven fine strands per conductor.
This ribbon cable is suitable for applications in industrial automation, robotics harnessing, signal routing, and ribbon-to-board connections.
The HF365 ribbon cable is manufactured in the United States.
