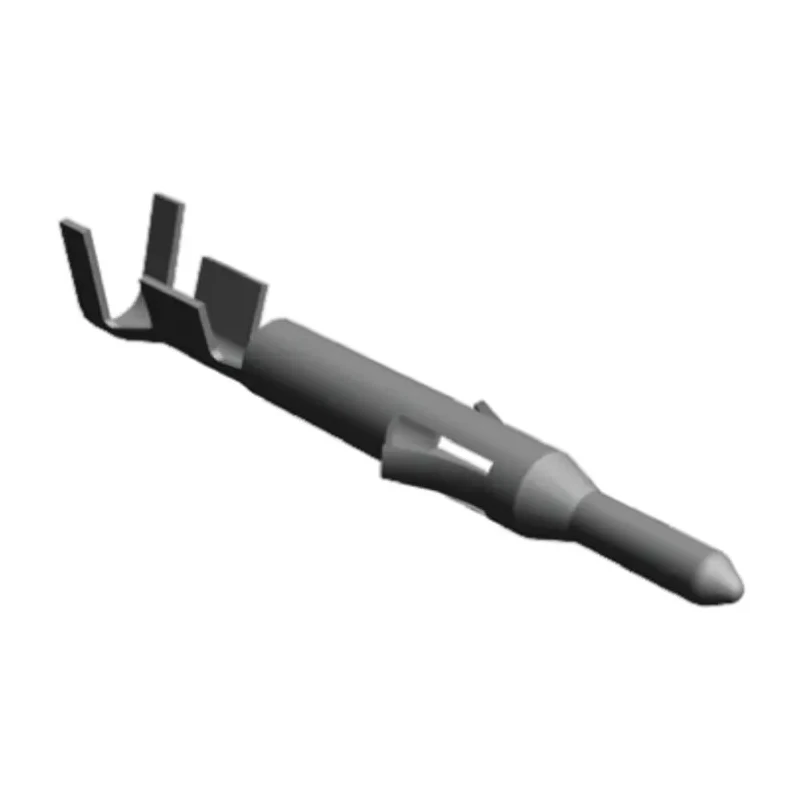

TE Connectivity Mini-Universal MATE-N-LOK Series Male Crimp Terminal 3A Current, 26-22 AWG Wire Size 770901-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 3A |
| Length | 17.04mm |
| Model | 770901-1 |
| Gender | Male |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| For Use With | Mini-Universal MATE-N-LOK Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.1mm² |
| Maximum Wire Size mm² | 0.4mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Constructed with brass contact material for durable performance.
- Features tin contact plating to prevent corrosion.
- Suitable for Mini-Universal MATE-N-LOK connector housings.
- Designed for crimp termination ensuring secure electrical connections.
- Operates reliably from -30°C to 105°C temperature range.
- Compact size with a length of 17.04 mm facilitating space-saving installations.
- Maximum contact resistance of 10 milliohms for efficient conductivity.
- Ideal for electronic component and PCB connector applications.
Product Description
TE Connectivity 770901-1 Mini-Universal MATE-N-LOK Series Male Crimp Terminal is a high-quality electronic component designed to provide reliable electrical connections in various industrial and electronic applications. Rated for a current of 3A and suitable for wire sizes ranging from 26 AWG min to 22 AWG max, this terminal is fabricated from brass and plated with tin to ensure durability and resistance to corrosion.
The crimp termination type allows for convenient and secure installation into Mini-Universal MATE-N-LOK connector housings. With an operational temperature range from -30°C to 105°C, it performs reliably in diverse environments. The terminal’s compact length of 17.04 mm supports applications where space constraints exist.
This male crimp terminal boasts a maximum contact resistance of 10 milliohms, ensuring efficient signal transmission and minimal energy loss in circuits. Designed for use in electronics components, power connectors, and PCB wire housings, it supports a variety of industrial, manufacturing, HVAC, and laboratory applications where dependable electrical connectivity is crucial.
Constructed with brass contact material for durable performance. Features tin contact plating to prevent corrosion. Suitable for Mini-Universal MATE-N-LOK connector housings. Designed for crimp termination ensuring secure electrical connections.
Operates reliably from -30°C to 105°C temperature range. Compact size with a length of 17.04 mm facilitating space-saving installations. Maximum contact resistance of 10 milliohms for efficient conductivity. Ideal for electronic component and PCB connector applications.
This product is critical for precise electrical routing in electronic assembly, manufacturing, and testing environments. For users seeking TE Connectivity electronic connectors and crimp terminals, this model provides a dependable solution combining quality materials and standardized specifications suitable for broad industrial usage.
Explore more electronic Connectors and related accessories at EnvMart to complement this product.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal is rated for a current of 3A.
It is suitable for wire sizes ranging from 26 AWG to 22 AWG.
The maximum contact resistance is 10 milliohms, ensuring efficient conductivity.
It operates reliably within a temperature range of -30°C to 105°C.
The terminal is constructed with brass contact material and features tin contact plating to prevent corrosion.
The length of this terminal is 17.04 mm, making it compact for space-saving installations.
It uses a crimp termination type, ensuring secure electrical connections.
This terminal is designed for use with Mini-Universal MATE-N-LOK connector housings.
It is ideal for electronic components, power connectors, and PCB wire housings in various industrial applications.
This model is a male crimp terminal.
The country of origin for this terminal is India.
The minimum wire size is 0.1 mm² and the maximum wire size is 0.4 mm².
