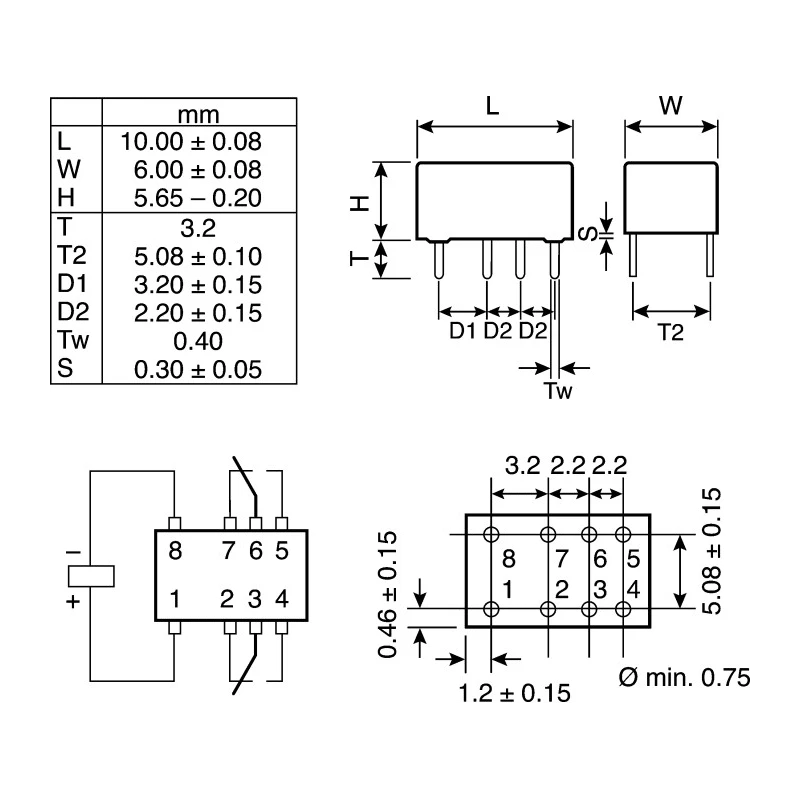

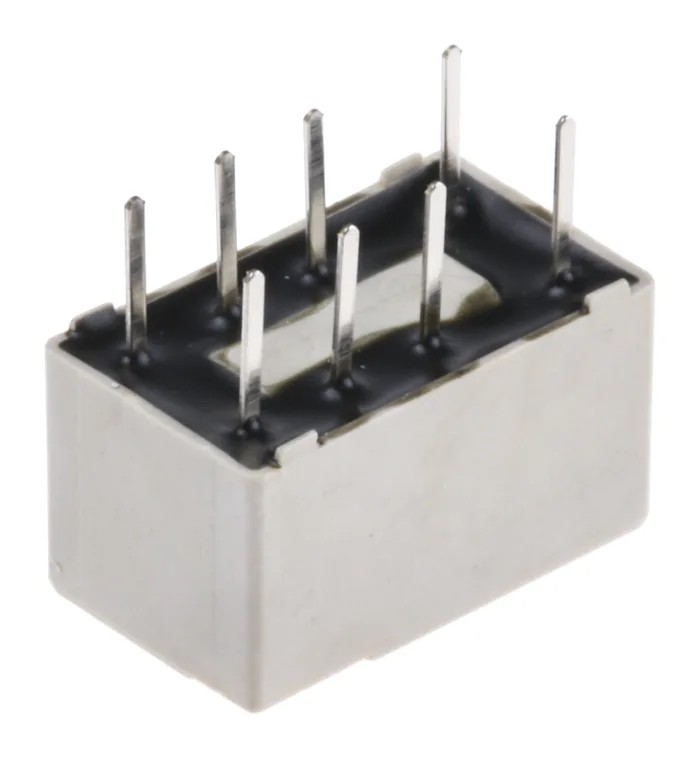

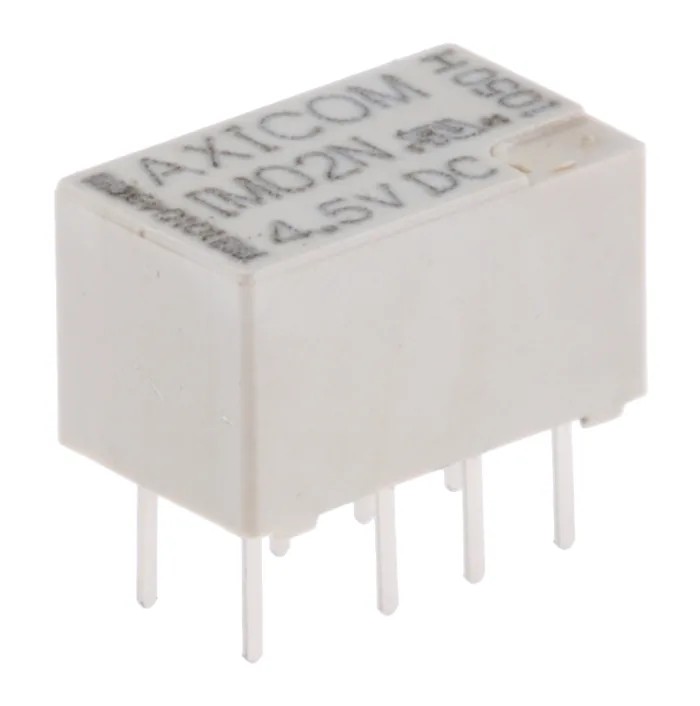

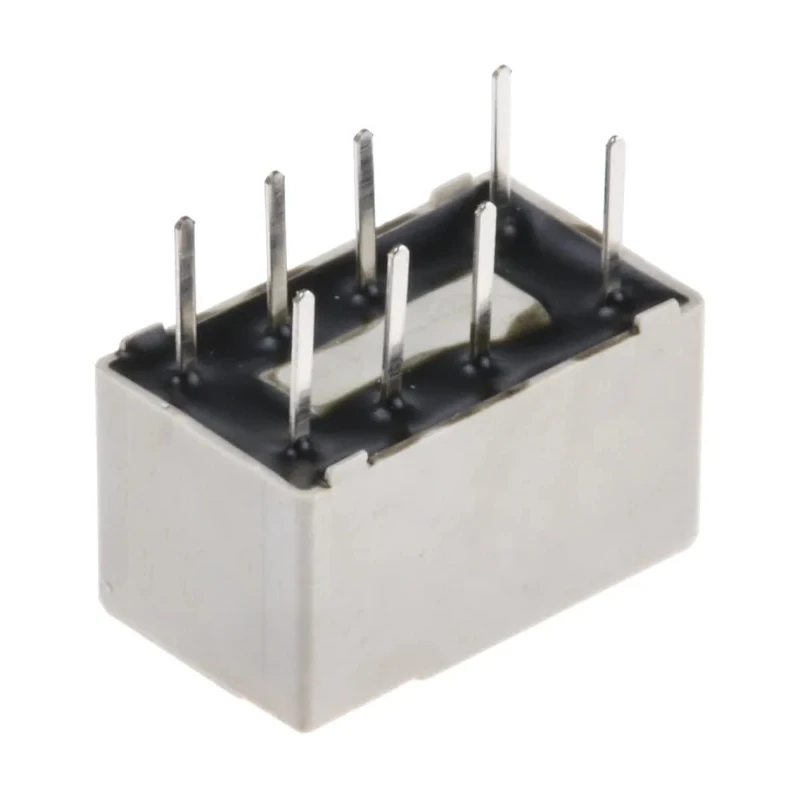

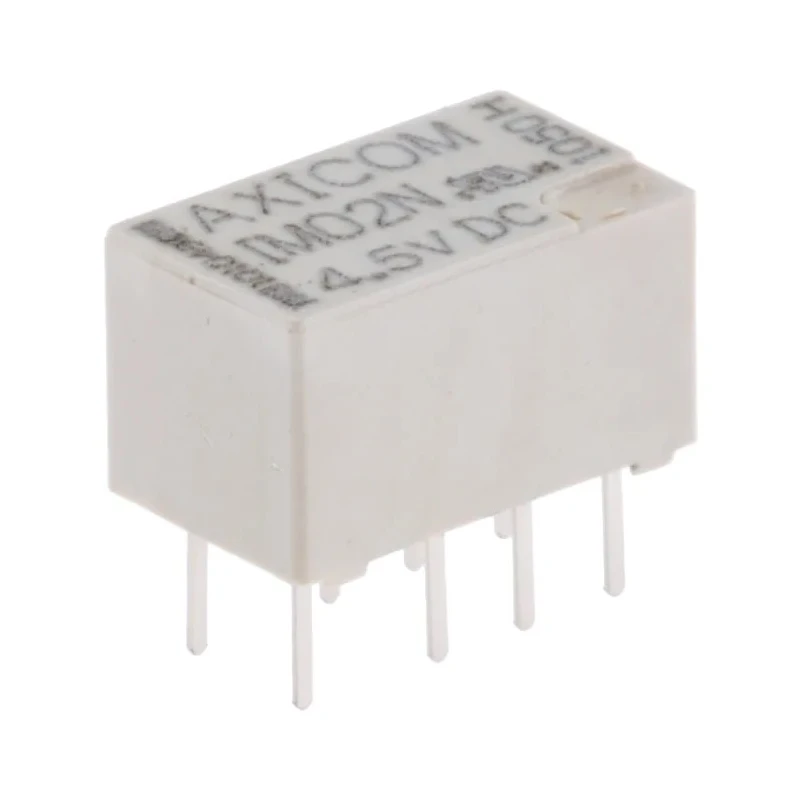

TE Connectivity PCB Signal Relay 4.5V DC Coil 2A DPDT IM Series 10x6x5.65 mm 1-1462038-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 5.65mm |
| Length | 10mm |
| Width | 6mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | IM |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 145Ω |
| Coil Voltage | 4.5V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 140mW |
| TE Connectivity Surface Signal Relay, 4.5V dc Coil, 2A, DPDTBrand | TE Connectivity |
Key Features
- The relay offers a compact slimline design measuring 10x6x5.65 mm for minimal board space usage.
- Coil power consumption is low at 140mW, improving energy efficiency.
- Gold plated bifurcated contacts ensure reliable electrical performance and durability.
- It supports switching voltages up to 250V AC and 220V DC with a switching power rating of 62.5VA.
- The relay is hermetically sealed, rated IP67, withstanding up to 300G mechanical shock resistance.
- Operating temperature range spans from -40°C to +85°C for versatile environmental applications.
- Designed for PCB mount with solder terminal type for secure and reliable installation.
- This IM series relay conforms to RoHS standards, ensuring environmentally compliant manufacturing.
Product Description
TE Connectivity 1-1462038-2 PCB Signal Relay is a highly reliable IM series slimline PCB mount signal relay operating at a coil voltage of 4.5V DC and a switching current rating of 2A. With a low profile of 5.65mm and compact board footprint of 60mm², this DPDT relay is engineered for precision applications requiring minimal space and energy efficiency.
The relay features bifurcated gold plated contacts offering excellent conductivity and durability. The coil consumes only 140mW, enhancing operational efficiency while supporting switching voltages up to 250V AC and 220V DC. Its hermetically sealed construction meets IP67 standards, providing robust protection against environmental contaminants and mechanical shocks up to 300G functional and 500G survival levels.
Designed for PCB mounting with solder terminals, it facilitates easy integration into electronic assemblies. Operating across a wide temperature range from -40°C to +85°C, the relay supports diverse industrial applications including telecommunications, optical network terminals, office and test equipment, medical devices, and automotive electronics.
The IM series relay meets RoHS compliance requirements and features high dielectric surge capability tested to Telcordia GR 1089, FCC Part 68, and ITU-T K20, 21, 45 standards, ensuring exceptional performance under electrical stress.
The relay’s gold plated bifurcated contacts improve signal integrity and reduce wear. Its slimline and low-profile design optimizes PCB real estate for compact device layouts. Hermetically sealed casing provides harsh environment resistance and IP67 ingress protection.
Wide operating temperature and robust mechanical shock tolerance ensure reliability in demanding conditions. Low coil power consumption of 140mW minimizes energy use within electronic circuits. High insulation resistance and surge capability maintain safe and stable operation.
This relay is ideal for industrial, telecommunications, medical, automotive, and office equipment applications where dependable PCB signal switching is essential. Browse the Electronics & Electricals category on EnvMart for related high-quality Signal Relays by TE Connectivity.
