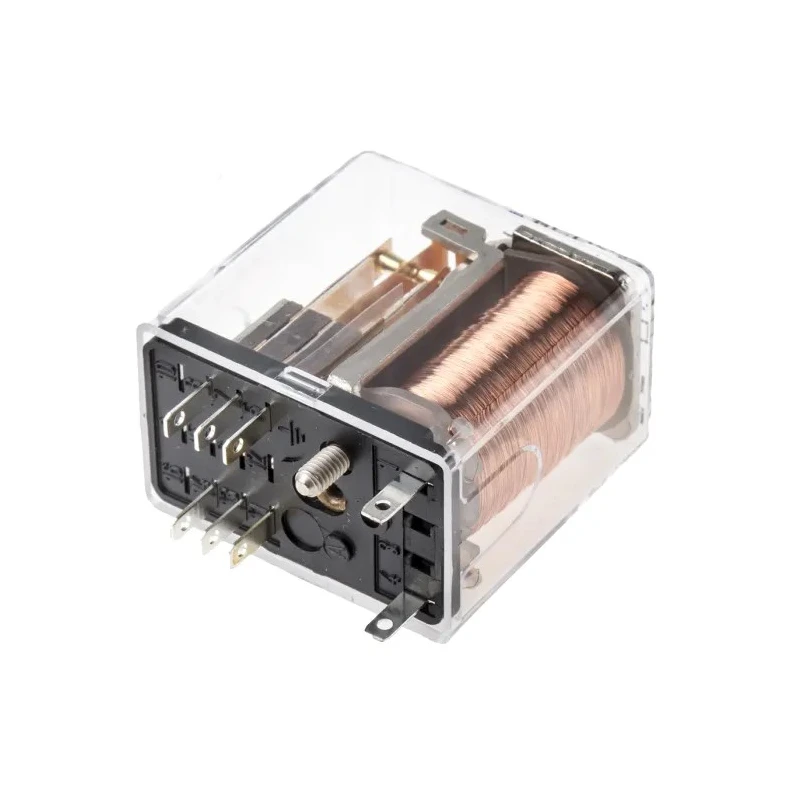

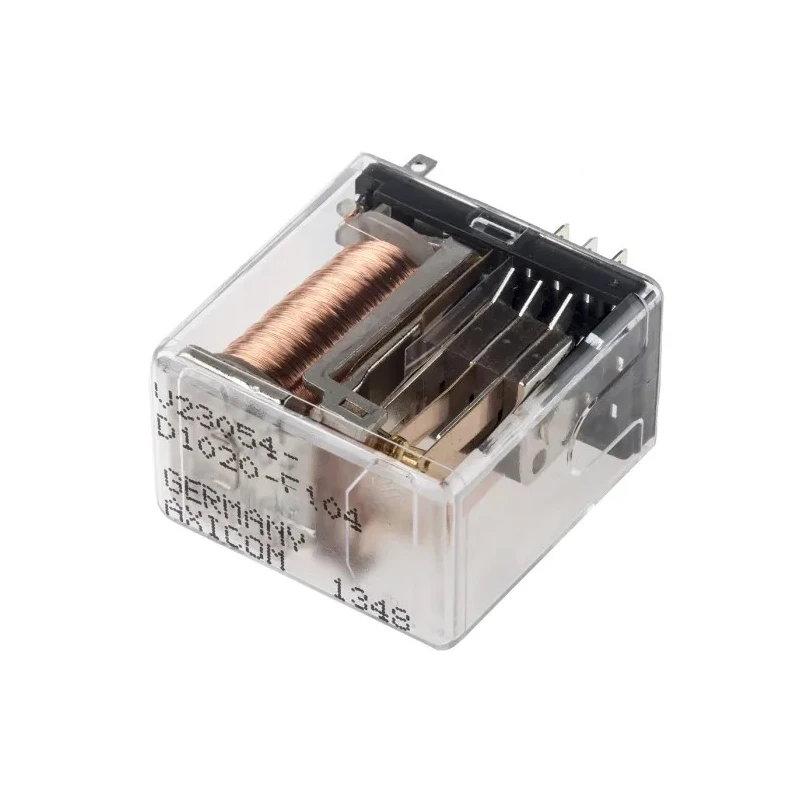

TE Connectivity PCB Power Relay, 24V DC Coil, 5A Switching Current, DPDT, Gold Plated Contacts V23054D1020F104 9-1393812-3

TE Connectivity V23054D1020F104 9-1393812-3 is a highly reliable PCB Power Relay featuring a 24V DC coil and double pole double throw (DPDT) contact configuration. It is designed to switch currents up to 5A, making it suitable for various industrial and commercial electronic applications requiring robust and efficient relay solutions.

The relay is part of the Cradle S series, known for versatile contact arrangements and materials to meet specific application needs. Its gold plated contacts provide high conductivity and durability, optimizing signal and power transmission in critical circuits.

Designed for PCB mounting with through-hole terminals, this relay ensures secure installation and reliable electrical connection. It operates effectively between -40°C and 70°C ambient temperatures, making it suited for industrial automation, control systems, and power switching tasks under diverse environmental conditions.

The relay supports switching voltages up to 260V AC and DC, enabling handling of moderate power loads safely. Coil characteristics include a resistance of 630 ohms and power consumption of approximately 914 milliwatts, emphasizing energy efficiency during operation.

Its compact footprint, with dimensions of 30 mm length, 19 mm width, and 30 mm height, allows integration into space-constrained PCB designs. The product adheres to IEC standards and RoHS environmental directives, ensuring compliance with industry safety and sustainability requirements.

Common industrial applications include automation systems, control panels, instrumentation, and signal conditioning circuits in manufacturing, HVAC, and electrical equipment assembly. The cradle relay design facilitates easy mounting and replacement, contributing to operational convenience and maintenance efficiency.

This power relay features a Cradle S series with gold plated contacts for enhanced conductivity. Designed for PCB mounting with through hole terminal type for secure installation. Operates reliably between -40°C and 70°C ambient temperatures.

Supports switching voltages up to 260V AC and DC, suitable for varied electrical loads. Coil resistance is 630 ohms with a coil power rating of 914 mW ensuring low energy consumption. Compact dimensions with 30mm length, 19mm width, and 30mm height facilitate space-saving designs.

Meets IEC standards and RoHS compliance ensuring quality and environmental safety. Explore a wide range of Power Relays and electronic components for industrial and automation solutions at EnvMart.
