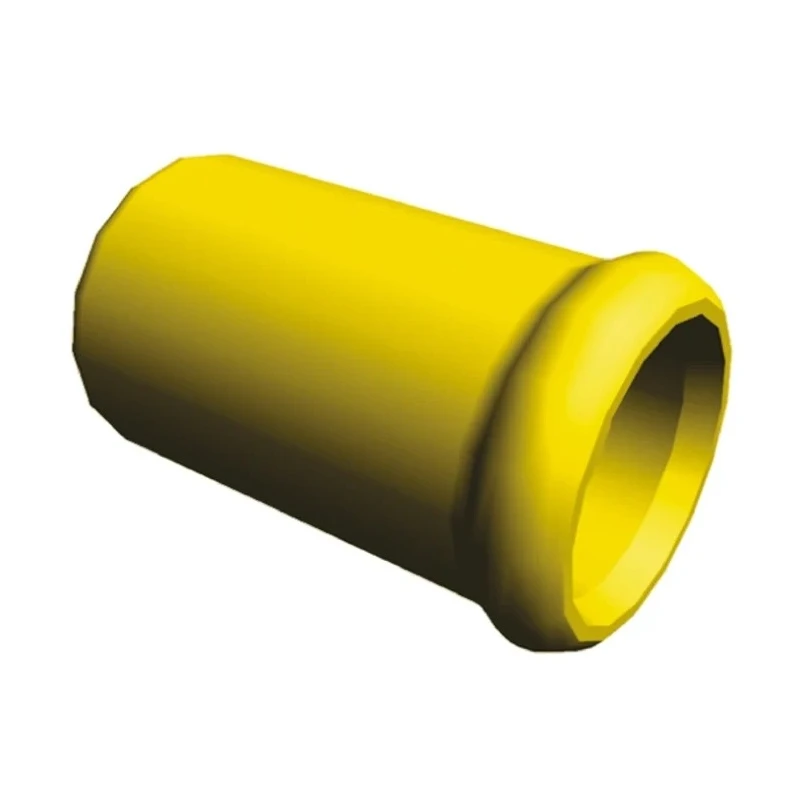

TE Connectivity PIDG Spare Wire Cap Splice Connector Yellow, Insulated, Tin 10 AWG 328309
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.43mm |
| Brand | TE Connectivity |
| Colour | Yellow |
| Model | 328309 |
| Insulation | Insulated |
| Overall Length | 12.14mm |
| Contact Material | Copper |
| Series | PIDG |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 10AWG |
| Splice Type | Spare Wire Cap |
| Blue (stripped end wire caps - stock numbers 710-5332 and 719-6155) | 1.25 - 2 mm2 wire range |
| Yellow (stripped end wire caps - stock number 710-5345) | 3 - 6 mm2 wire range |
| Red (stripped end wire caps - stock number 710-5348) | 0.3 - 0.9 mm2 wire range |
| Blue (unstripped end wire caps - stock number 710-5335) | 3.05 - 3.68 mm2 insulation diameter |
| Yellow (unstripped end wire caps - stock number 718-7454) | 3.81 - 5.59 mm2 insulation diameter |
| Red (unstripped end wire caps - stock number 710-5339) | 2.03 - 2.92 mm2 insulation diameter |
| Transparent (unstripped end wire caps - stock number 710-5341) | 1.22 - 1.91 mm2 insulation diameter |
Key Features
- Suitable for 3 to 6 mm2 wire range in yellow insulation.
- Precision-formed metal barrel with serrations for maximum contact and tensile strength.
- Copper body enclosed in a durable nylon color-coded insulation sleeve.
- Complies with RoHS standards ensuring environmental safety.
- Compact size with overall length of 12.14 mm and diameter of 3.43 mm.
- Compatible with both stripped and unstripped wire ends.
- Ideal for power connector applications requiring reliable wire splicing.
- Insulated splice type designed for wire terminals and splicing tasks.
Product Description
TE Connectivity 328309 PIDG Spare Wire Cap Splice Connector is a high-quality insulated splice connector designed for use with copper wires up to 10 AWG. The connector features a precision-formed metal wire barrel with serrations to ensure maximum contact and tensile strength after crimping. This copper barrel is enclosed in a nylon insulation sleeve that is color-coded yellow to indicate its wire size compatibility.
With an overall length of 12.14 mm and a diameter of 3.43 mm, this compact connector fits seamlessly into electrical and power connector applications. The tin plating on the copper contact enhances corrosion resistance and electrical conductivity, ensuring long-lasting performance.
The PIDG wire caps by TE Connectivity can be used with both stripped or unstripped wire ends, providing flexibility in installation. The yellow insulation sleeve corresponds to a 3 - 6 mm2 wire range, making it suitable for a variety of wiring tasks in electronics, power supply, and industrial environments.
Compliant with RoHS environmental standards, this splice connector offers safety in usage and disposal. It is widely used in power connector assemblies, electronic device manufacturing, and electrical maintenance, providing reliable and durable wire splicing.
Suitable for 3 to 6 mm2 wire range in yellow insulation. Precision-formed metal barrel with serrations for maximum contact and tensile strength. Copper body enclosed in a durable nylon color-coded insulation sleeve. Complies with RoHS standards ensuring environmental safety.
Compact size with overall length of 12.14 mm and diameter of 3.43 mm. Compatible with both stripped and unstripped wire ends. Ideal for power connector applications requiring reliable wire splicing. Insulated splice type designed for wire terminals and splicing tasks.
Contact material is copper with tin plating for enhanced conductivity and corrosion resistance. Yellow color coding enables easy identification of wire gauge range.
TE Connectivity is a global leader in connectivity and sensor solutions, trusted in industrial, electrical, and electronic sectors for delivering durable and reliable components. Explore more in the Power Connectors category at EnvMart for comprehensive connector solutions.
Explore more products in our Splice Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum wire size compatible with this splice connector is 10 AWG, which corresponds to a wire range of 3 to 6 mm².
This model has an overall length of 12.14 mm and a diameter of 3.43 mm.
It features an insulated nylon sleeve that is color-coded yellow, indicating its compatibility with the specified wire size range.
Yes, it complies with RoHS standards, ensuring environmental safety in usage and disposal.
The contact material is copper, which is tin-plated to enhance conductivity and corrosion resistance.
Yes, it is compatible with both stripped and unstripped wire ends, providing flexibility in installation.
The minimum wire size that this splice connector can accommodate is 22 AWG.
It is ideal for power connector applications requiring reliable wire splicing, commonly used in electronics, power supply, and industrial environments.
The connector features a precision-formed metal barrel with serrations, which ensures maximum contact and tensile strength after crimping.
The splice connector is color-coded yellow, which indicates its compatibility with a wire range of 3 to 6 mm².
The country of origin for this splice connector is India.
This splice connector belongs to the PIDG series by TE Connectivity.
