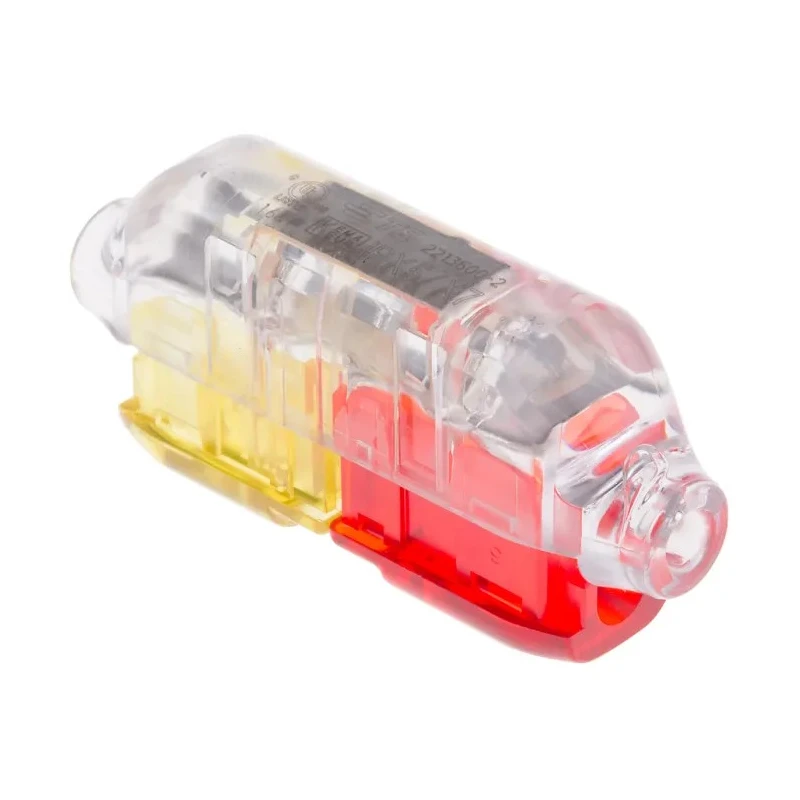

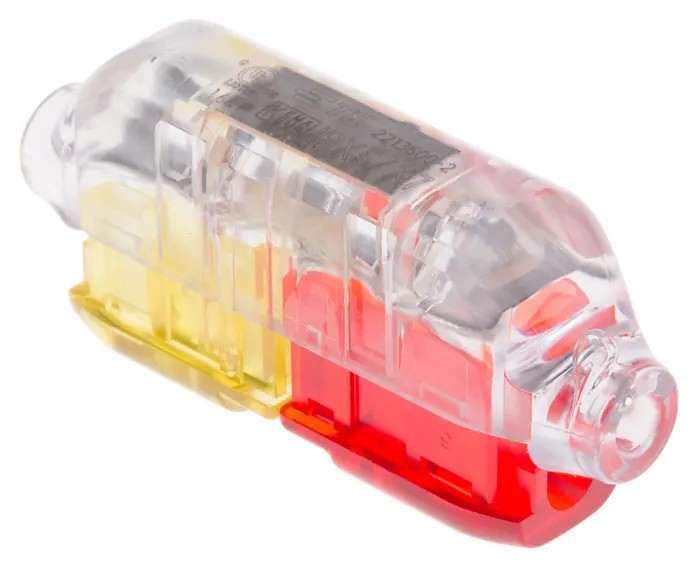

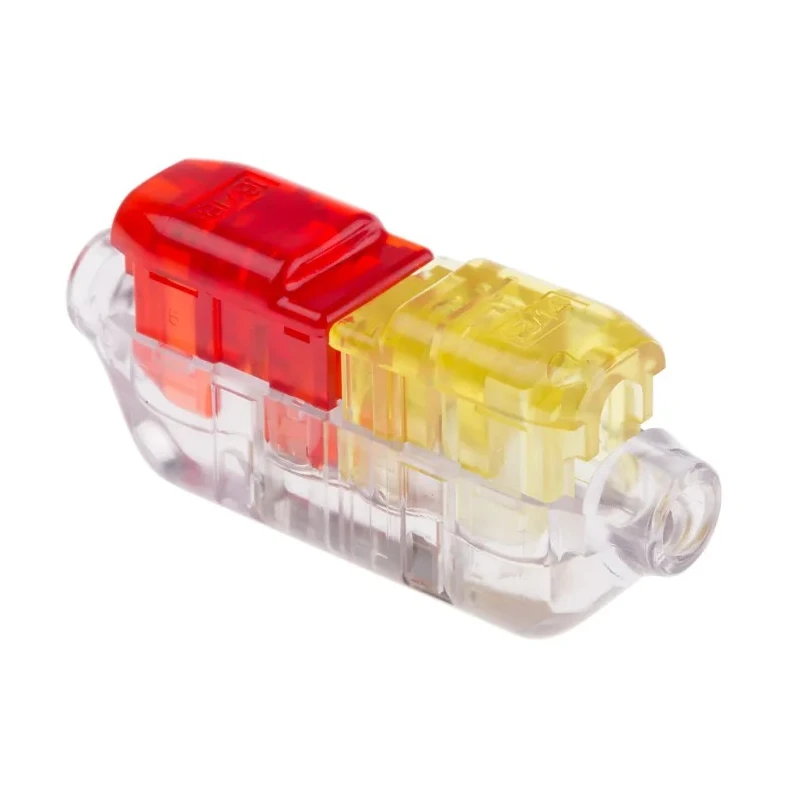

TE Connectivity CoolSplice In Line Splice Connector Clear Insulated Tin 12 AWG 2213600-2

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity CoolSplice In Line Splice Connector Clear Insulated Tin 12 AWG 2213600-2

Name: TE Connectivity CoolSplice In Line Splice Connector Clear Insulated Tin 12 AWG 2213600-2
Brand: TE Connectivity
SKU: 200509
Price: 2.98 USD
Availability: InStock



Category Splice Connectors Brand TE Connectivity Condition New

Specifications

Country of Origin	Czech Republic
Brand	TE Connectivity
THICKNESS	12.8mm
Insulation	Insulated
Overall Length	48mm
Contact Material	Phosphor Bronze
Series	CoolSplice
Termination Type	Push Button
Insulation Material	Polycarbonate
Standards/Approvals	IEC 60998-2-3, UL 94V-2, UL 486C
Contact Plating	Tin
Minimum Wire Size mm²	0.75mm²
Maximum Wire Size mm²	4mm²
Minimum Wire Size AWG	18AWG
Maximum Wire Size AWG	12AWG
Splice Type	In Line

Key Features

Designed for reliable and time-saving wire splicing with IDC technology.
Features independent push button termination for ease of installation.
Clear polycarbonate body enables visual inspection of the connection.
Creates waterproof connections with gel sealing suitable for harsh environments.
Suitable for wire sizes ranging from 18 AWG to 12 AWG (0.75mm² to 4mm²).
Constructed with phosphor bronze contact material plated with tin for durability.
Compact overall length of 48mm with 12.8mm thickness.
Compliant with IEC 60998-2-3, UL 94V-2, and UL 486C standards.

Product Description

TE Connectivity 2213600-2 CoolSplice In Line Splice Connector is an insulated, clear-bodied splice connector engineered for use with wire sizes from 0.75 mm² (18 AWG) up to 4 mm² (12 AWG). It features a durable polycarbonate insulation and phosphor bronze contacts plated with tin, ensuring reliable electrical connections.

The connector uses independent push buttons on each side to terminate wires via Insulation Displacement Contact (IDC) technology, eliminating the need to pre-strip wires and reducing installation time. The clear housing allows easy visual confirmation of the connection, improving quality assurance.

The gel sealing ensures waterproofing that meets IPX8 standards, making this connector ideal for harsh environmental applications including roadway lighting, street lighting, signage, building wiring, bridge and tunnel lighting, indoor fixtures, and wire harness field repairs.

Measuring 48mm in length and 12.8mm in thickness, this CoolSplice connector complies with international safety standards IEC 60998-2-3, UL 94V-2, and UL 486C, assuring performance and safety in industrial and electrical installations.

Designed for reliable and time-saving wire splicing with IDC technology. Independent push button termination for ease of installation. Clear polycarbonate body for visual inspection. Gel sealing provides waterproofing for harsh environments.

Suitable for 0.75 mm² to 4 mm² wire sizes (18 AWG to 12 AWG). Contacts made of phosphor bronze with tin plating. Compact dimensions: 48mm length, 12.8mm thickness. Complies with IEC 60998-2-3, UL 94V-2, and UL 486C standards.

This connector is widely used in industrial, construction, and commercial applications including lighting, signage, and electrical maintenance. It provides a fast, secure, and visually verifiable connection solution in environments requiring high reliability and waterproofing.
