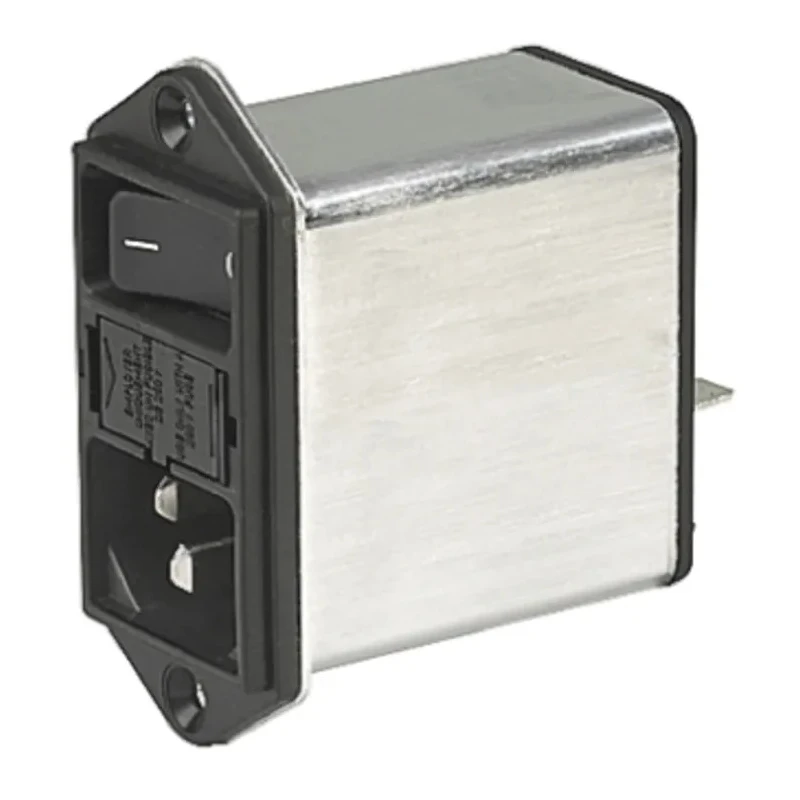

Schurter 250V AC 6A Panel Mount IEC Connector Male Quick Connect DD12.6111.111
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V ac |
| Brand | Schurter |
| Current | 6A |
| Height | 31.5mm |
| Model | DD12.6111.111 |
| Filter Type | Line |
| Depth | 60.9mm |
| Width | 66mm |
| Mount Type | Panel Mount |
| Operating Frequency | 60Hz |
| Termination Type | Quick Connect |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Panel Mount | Screw on from front side |
| Contact Gender | Male |
| Connector Gender | Male |
| Fuse Size | 5 x 20 mm |
| IEC Connector Type | C14 |
Key Features
- The connector features an ultra-compact DD12 series design with an aluminium case for excellent shielding.
- It supports a 6A current rating and 250V AC voltage with a C14 IEC connector type.
- Panel mount style with screw-on installation from the front side provides secure fitting.
- Quick connect terminals sized 6.3x0.8mm enable easy wiring and maintenance.
- Operating temperature ranges from -25°C to 85°C, suitable for demanding environments.
- This connector is ideal for applications with high transient loads and complies with medical standard IEC/EN 60601-1 requirements (fuse drawer excluded).
- Designed for both standard and medical applications, it is qualified per IEC/EN 60950 for safety.
- Fuse size compatible with Ø5 x 20 mm fuses, fuse drawer sold separately.
Product Description
Schurter DD12.6111.111 is a high-quality 250V AC 6A panel mount IEC connector male designed for reliable power delivery in industrial and medical equipment. It offers a quick connect termination type to facilitate easy and rapid installation while ensuring secure electrical contact. The connector belongs to the DD12 series, featuring an ultra-compact design housed in an aluminium case which provides excellent shielding against electromagnetic interference.
This IEC C14 type connector is suitable for use with a 5 x 20 mm fuse (fuse drawer sold separately) and supports a current rating of 6A at 250 volts AC operating at a frequency of 60Hz. It complies with key standards for medical equipment (IEC/EN 60601-1) and is qualified in accordance with IEC/EN 60950, making it suitable for both standard commercial and medical device applications.
The panel mount installation design allows it to be screwed on securely from the front side. The connector’s operating temperature range is from -25°C to 85°C, ensuring durability and performance reliability in diverse environmental conditions. Quick connect terminals measuring 6.3 x 0.8 mm ease wiring efforts and maintenance.

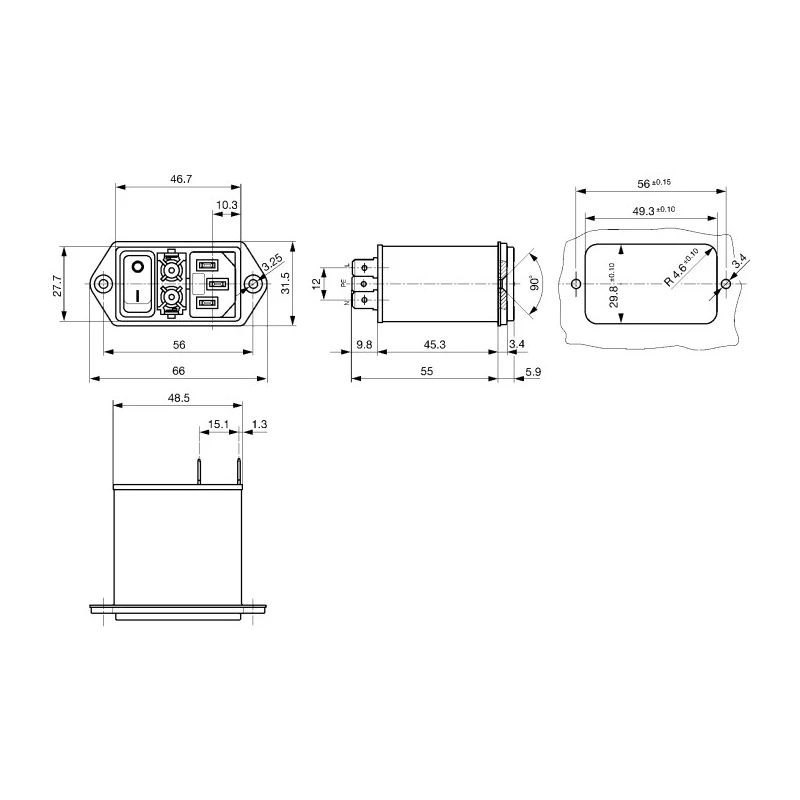

Physical dimensions are 66 mm width, 31.5 mm height, and 60.9 mm depth, enabling compact mounting in panels and enclosures. Its aluminium casing assures good shielding and protection, making it a robust solution for equipment with high transient loads.

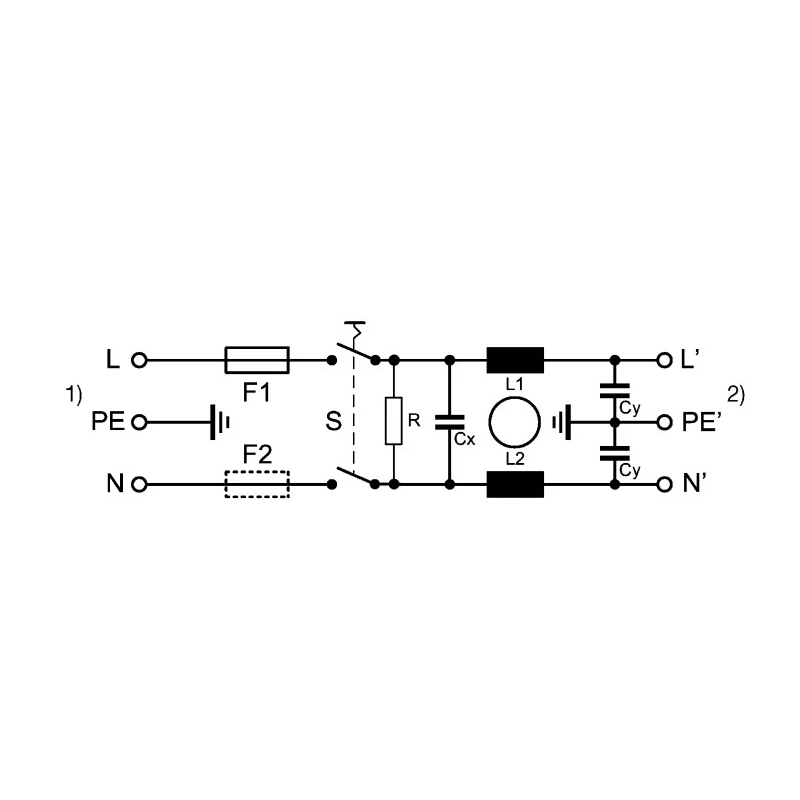

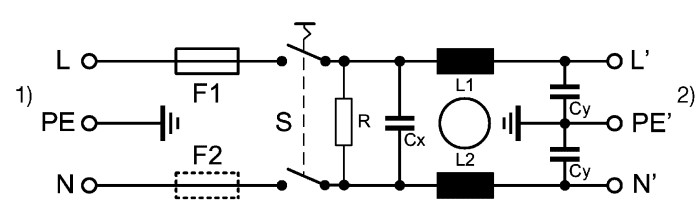

The connector is part of the Schurter range of panel mount IEC inlet plugs featuring integral mains filters and ultra-compact designs. The fuse drawer is an accessory and must be ordered separately, suitable for 5 x 20 mm fuses.
Applications include industrial machinery, medical instrumentation, laboratory equipment, and power supply apparatus. Quick connect terminals simplify installation and maintenance. Designed with safety and EMI protection in mind for critical electrical environments.
Choose Schurter for a dependable IEC Connector that meets stringent industrial and medical standards. Browse our Electronics & Electricals categories for more Schurter power connectors and IEC components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 6A.
It supports a voltage rating of 250V AC.
The operating temperature range is from -25°C to 85°C.
It features a panel mount design that allows for screw-on installation from the front side.
The dimensions are 66 mm in width, 31.5 mm in height, and 60.9 mm in depth.
It is compatible with 5 x 20 mm fuses, although the fuse drawer is sold separately.
This connector is classified as a C14 IEC connector type.
It features a quick connect termination type for easy wiring and maintenance.
It complies with medical standard IEC/EN 60601-1 and is qualified per IEC/EN 60950 for safety.
It is suitable for industrial machinery, medical instrumentation, laboratory equipment, and power supply apparatus.
The operating frequency is 60Hz.
The connector features an aluminium case which provides excellent shielding against electromagnetic interference.
