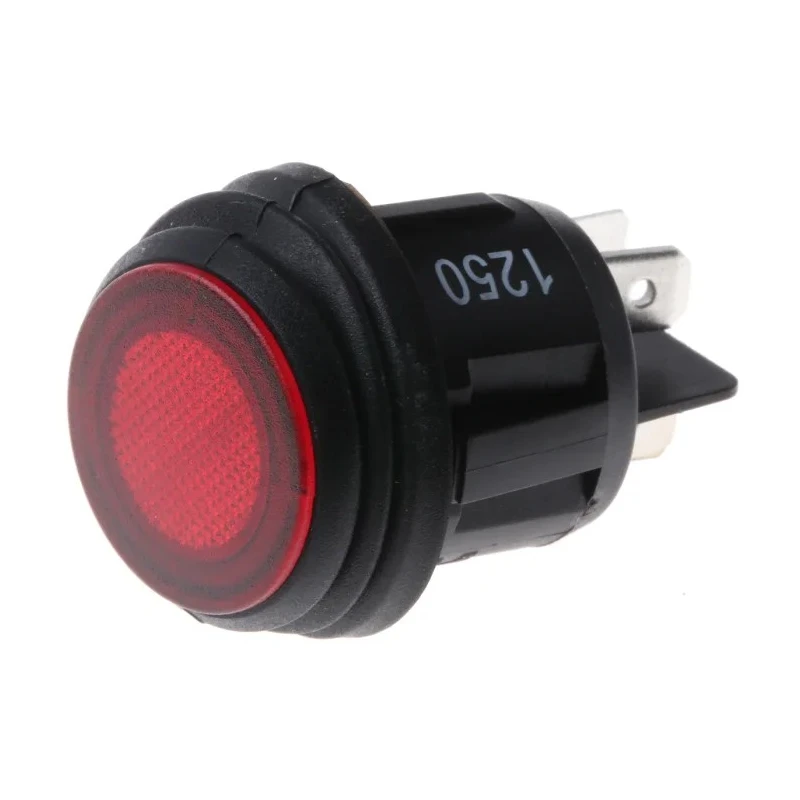

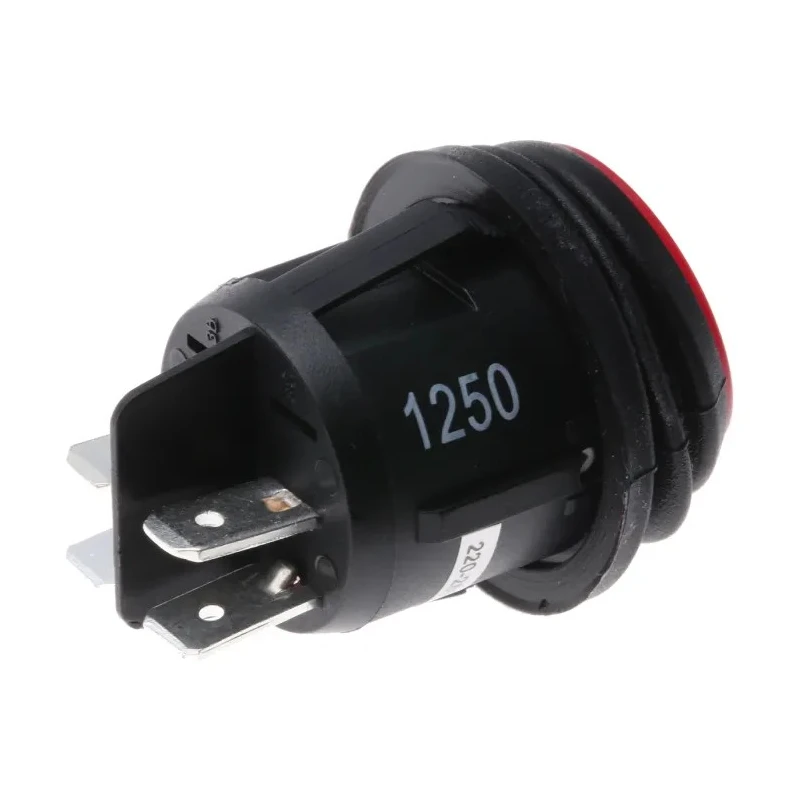

ZF Illuminated DPST On-Off On-Off Rocker Switch Panel Red Actuator Polyamide 66 Housing IP56 KDH3AEA2RBB



Category Rocker Switch Brand ZF Condition New

Specifications

Country of Origin	China
Brand	ZF
Model	KDH3AEA2RBB
IP Rating	IP56
Mount Type	Panel
Housing Material	Polyamide 66
Series	KD
Maximum Operating Temperature	85°C
Contact Configuration	DPST
Switch Configuration	On-Off
Minimum Operating Temperature	-25°C
Panel Cutout Size	20.2 mm
Terminal type	Quick Connect
Standards/Approvals	VDE, UL
Switch Operation	On-Off
Actuator Colour	Red
Contact DC Voltage	28V dc
Actuator Style	Round
Switch Contact Current	16A
Mechanical Life	100000Operations
Legend	Blank
DC electrical life	6,000 cycles

Key Features

The switch offers double pole single throw (DPST) contact configuration.
It provides On-Off On-Off switch operation with a blank legend.
Designed for panel mounting with a 20.2 mm cutout size.
Supports 16A switch contact current with 28V DC contact voltage rating.
The actuator style is round, designed for quick connect terminals.
Rated IP56 for waterproof and dust protection.
Temperature operating range from -25°C to 85°C for varied environments.
Mechanical life rating of 100,000 operations and DC electrical life of 6,000 cycles.

Product Description

ZF KDH3AEA2RBB Illuminated DPST On-Off On-Off Rocker Switch Panel offers a robust and waterproof design suitable for industrial and automation applications. Featuring a red illuminated round actuator and polyamide 66 housing material, this rocker switch is engineered for reliable performance in harsh conditions.

Specifically designed for panel mounting with a 20.2 mm diameter cutout, it supports double pole single throw (DPST) contact configuration and On-Off On-Off switching operation. The switch contact current rating is 16A at 28V DC, suitable for various electrical control circuits requiring reliable switching.

With IP56 ingress protection, this switch resists dust and water ingress, making it ideal for environments exposed to moisture or particles. The actuator uses a quick connect terminal type for efficient installation. Operating temperatures range from a minimum of -25°C to a maximum of 85°C, supporting a wide range of industrial applications.

The mechanical life expectancy is rated at 100,000 operations, with an electrical lifespan of 6,000 DC cycles, ensuring durability and long service life. Compliant with VDE and UL standards, this rocker switch provides quality assurance for safety and performance.

The KD series includes various models, with this specific model featuring a red illuminated actuator for clear operational status indication. Applications include electrical control panels, machinery automation, and equipment requiring reliable ON/OFF switching capabilities.

Double pole single throw (DPST) contact configuration. On-Off On-Off switch operation with blank legend. Polyamide 66 housing for enhanced durability. Panel cutout size of 20.2 mm diameter. 16A switch contact current rating at 28V DC.

IP56 ingress protection rating. Operating temperature from -25°C to 85°C. Mechanical life of 100,000 cycles and electrical life of 6,000 cycles. VDE and UL safety approvals. Manufactured in China as part of the KD series.

This rocker switch panel is well-suited for electrical, automation, industrial, manufacturing, and commercial applications where waterproof and durable switch solutions are essential. Browse the Rocker Switches category on EnvMart for compatible products and accessories.
