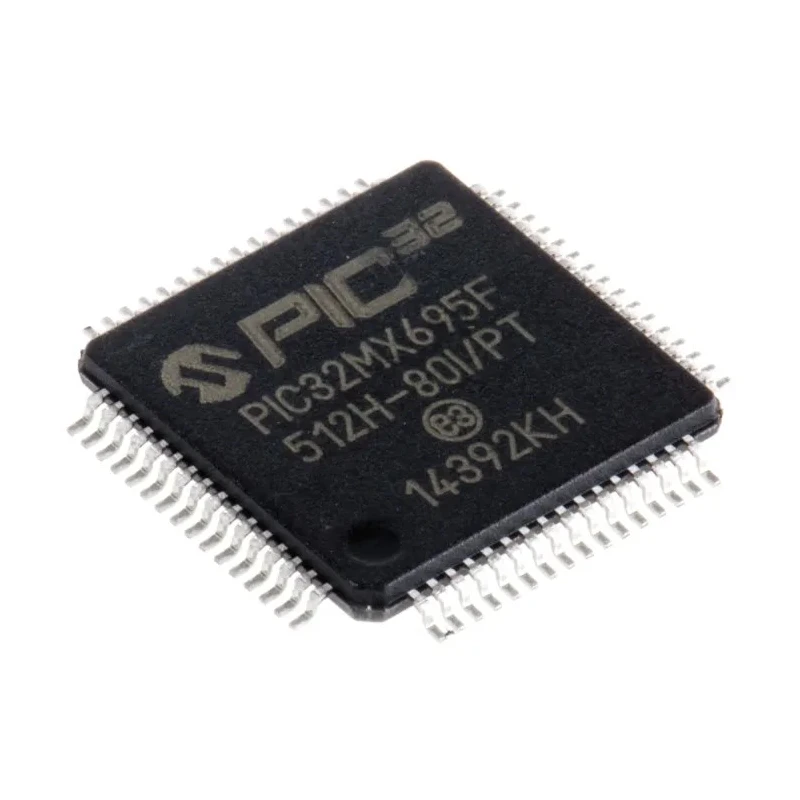

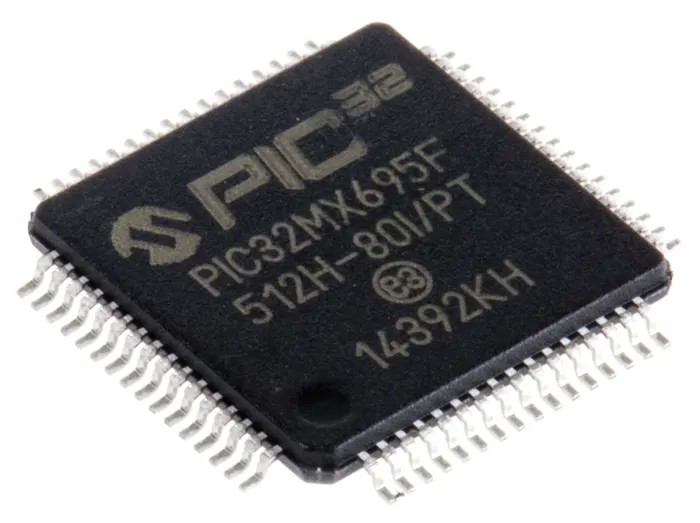

Microchip PIC32MX695F512H-80I/PT 32-Bit PIC Microcontroller 80 MHz 12kB RAM 512kB Flash 64-Pin TQFP

Microchip PIC32MX695F512H-80I/PT is a high-performance 32-bit microcontroller featuring the MIPS M4K core running at 80 MHz. It integrates 512 kB of Flash memory and 12 kB of RAM making it suitable for demanding embedded applications such as high-impact graphics, USB, CAN, and Ethernet connectivity.

This 64-pin TQFP surface mount device offers 51 programmable I/O pins and rich peripheral sets including 16 channels of 10-bit ADCs, multiple UARTs supporting speeds up to 20 Mbps, SPI modules, I2C with SMBus support, and CAN 2.0B communication module. The microcontroller supports low-power modes, fast wake-up, and real-time clock/calendar modules enhancing its applicability in industrial and automotive environments.

Operating from a voltage range of 2.3 to 3.6 volts and temperature range from -40°C to +85°C, it meets demanding operating conditions efficiently. The integrated External Graphics Interface with a 34-pin Parallel Master Port enables direct LCD driving for user interface implementations.

Key features include a fail-safe clock monitor, watchdog timer, programmable PLLs, oscillator clock sources, and multiple timers ensuring high reliability and precise timing control.

This microcontroller is programmable under MPLAB Harmony Integrated Software Framework simplifying development for embedded projects with faster time-to-market. The part is ideal for applications demanding robust, multitasking, and connected embedded devices in industries such as industrial automation, automotive controls, and commercial electronics.

Features a MIPS M4K 32-bit core architecture for advanced processing capability. Equipped with 16-channel 10-bit ADCs, USB 2.0 compliant full-speed OTG controller, CAN 2.0B module, and 10/100 Ethernet MAC with MII/RMII interface.

64-pin TQFP package with 51 programmable I/O pins supports surface mount applications. Operational voltage range from 2.3V to 3.6V suitable for low power designs. Supports multiple communication interfaces including UART, SPI, and I2C with SMBus support.

Designed for high-impact graphics, multitasking embedded control, and advanced connectivity. Operating temperature range from -40°C to +85°C enables industrial and automotive use cases. Explore our comprehensive range of Microcontrollers and semiconductor devices for your embedded system designs at EnvMart.
