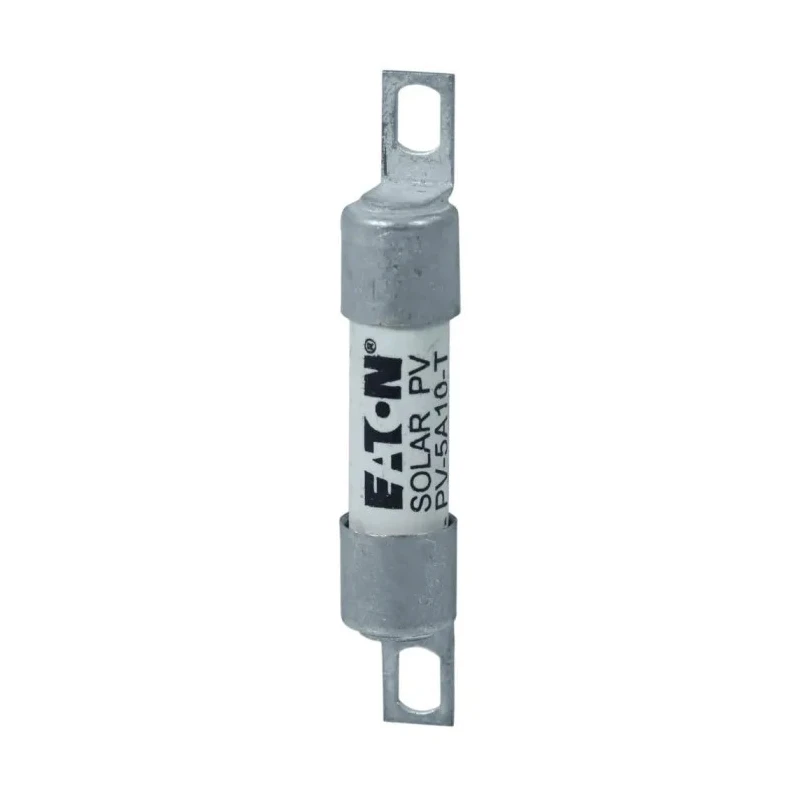

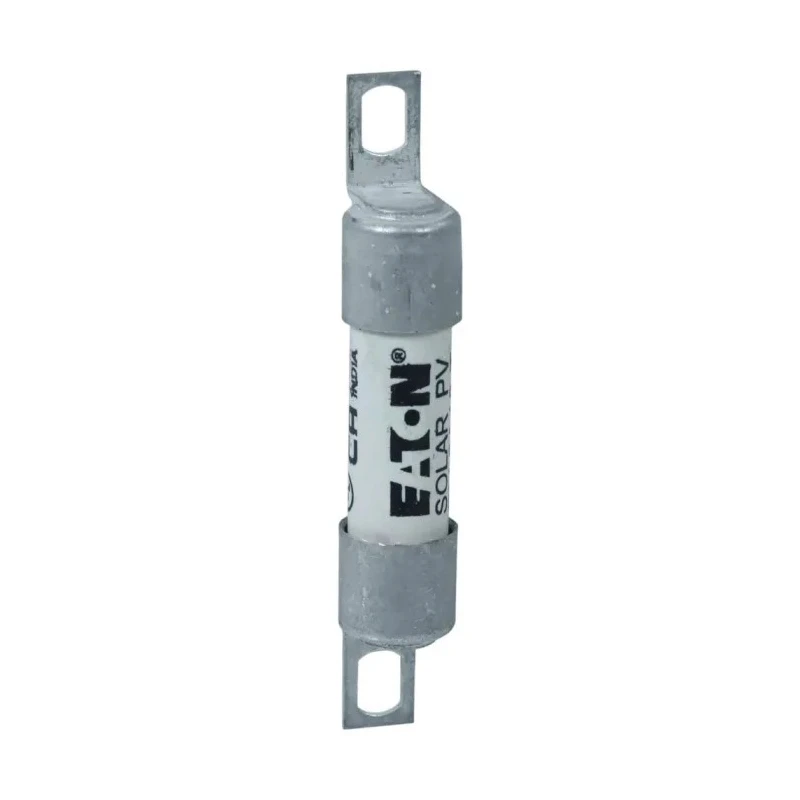

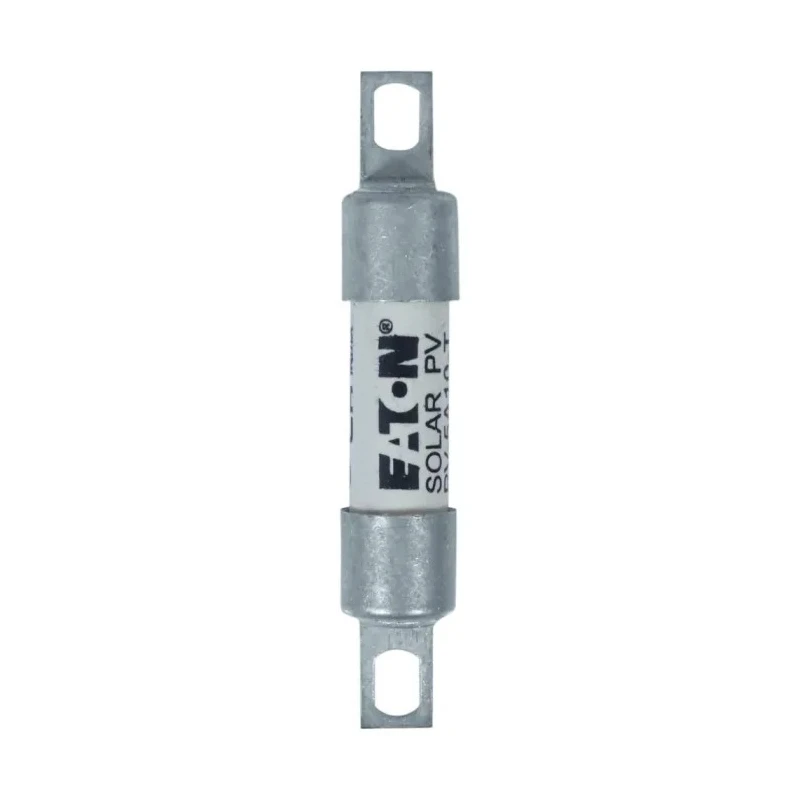

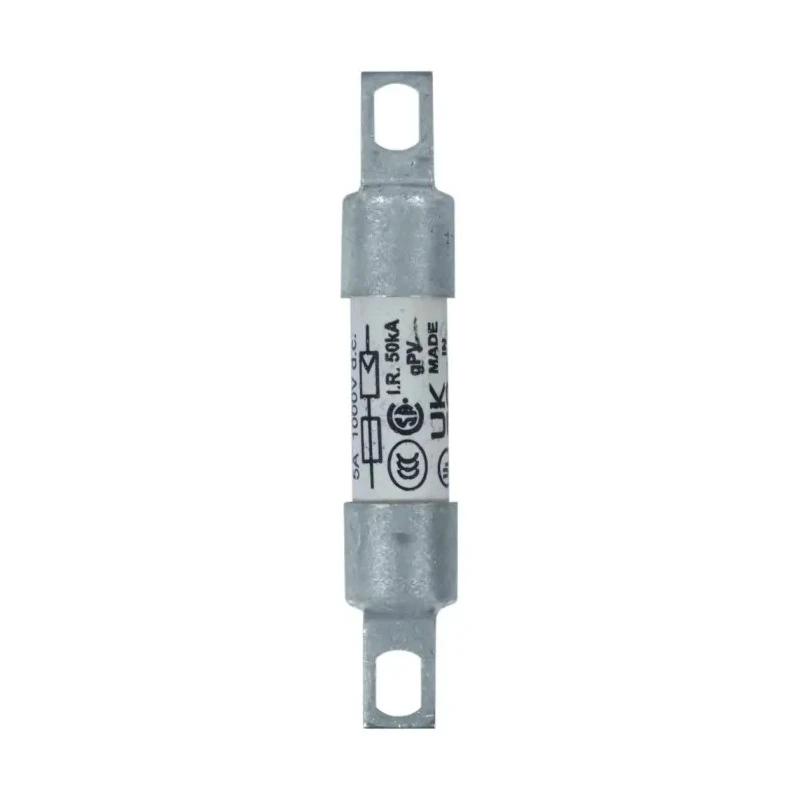

Eaton 5A Bolt Fixing Photovoltaic Fuse 10 x 38 mm 1000V DC PV-5A10-T
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1000V dc |
| Diameter | 10.4mm |
| Brand | Eaton |
| Height | 10.4mm |
| Length | 38.5mm |
| Model | PV-5A10-T |
| Width | 52mm |
| Overall Length | 62mm |
| Current Rating | 5A |
| Series | PV |
| Standards/Approvals | IEC 60269-6, CSA, RoHS, CCC, CE, UL |
| Fuse Size | 10 x 38 mm |
| Fixing Centres | 49.7 mm |
| Tag Width | 6.6mm |
| Tag Orientation | Offset |
| Application Category | gPV |
Key Features
- Designed specifically for the protection and isolation of photovoltaic strings.
- Features a compact 10.4 x 38.5 mm body suitable for solar panel applications.
- High voltage rating of 1000V DC ensures suitability for high voltage PV arrays.
- Offset bolted tag orientation allows for easy installation.
- Capable of interrupting low overcurrents associated with faulted photovoltaic arrays.
- Compatible with both thin film and crystalline silicon solar cells.
- High rupture capacity improves safety and reliability in PV systems.
- Constructed according to IEC 60269-6 standard and complies with CSA, RoHS, CCC, CE, and UL certifications.
Product Description
Eaton PV-5A10-T Bolt Fixing Photovoltaic Fuse is a new electrical protection device designed for photovoltaic (PV) applications. It has a current rating of 5A and a voltage rating of 1000V DC, making it ideal for protecting and isolating photovoltaic strings in solar power systems. Its compact body measures 10.4 mm in diameter and 38.5 mm in length, with an overall length of 62 mm and a fixing center of 49.7 mm.
This fuse features an offset bolted tag orientation, which facilitates quick and simple installation without the need for special tools. With a high rupture capacity, it ensures reliable interruption of fault currents typical in PV arrays, contributing to system safety and durability.
Designed to meet IEC 60269-6 standards and certified compliant with CSA, RoHS, CCC, CE, and UL, the Eaton PV-5A10-T fuse ensures adherence to international quality and safety benchmarks. It is suitable for use with both thin film and crystalline silicon solar cells, making it versatile across various photovoltaic technologies.
Its compact size and excellent electrical ratings make it a reliable component for solar power installations, enhancing system protection and longevity. Manufactured in India, this fuse represents a robust solution for solar energy applications in industrial, commercial, and residential solar power systems.
Designed specifically for photovoltaic string protection and isolation. High voltage rating of 1000V DC suitable for high voltage PV arrays. Offset bolted tag orientation enables easy and secure installation. Compact dimensions allow seamless integration into solar power setups.
Certified to IEC 60269-6, CSA, RoHS, CCC, CE, and UL standards. High rupture capacity enhances system safety during overcurrent conditions. Compatible with thin film and crystalline silicon solar technologies. Manufactured in India ensuring high quality and reliability.
Explore the Eaton range and related photovoltaic protection products on EnvMart for industrial and commercial solar power system requirements.
Explore more products in our Tag Fuses category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton PV-5A10-T fuse has a voltage rating of 1000V DC, making it suitable for high voltage photovoltaic applications.
This model has a current rating of 5A, designed for protecting photovoltaic strings in solar power systems.
The fuse features an offset bolted tag orientation, which allows for quick and easy installation without the need for special tools.
It is constructed according to IEC 60269-6 standards and complies with CSA, RoHS, CCC, CE, and UL certifications.
The fixing center for the Eaton PV-5A10-T fuse is measured at 49.7 mm.
The high rupture capacity of the fuse ensures reliable interruption of fault currents typical in photovoltaic arrays, enhancing system safety.
The fuse size is 10 x 38 mm, which is standard for photovoltaic applications.
This fuse is manufactured in India, ensuring adherence to quality standards.
The Eaton PV-5A10-T is categorized under gPV applications, specifically designed for photovoltaic systems.
By providing protection and isolation for photovoltaic strings, it enhances the overall reliability and safety of solar power installations.
