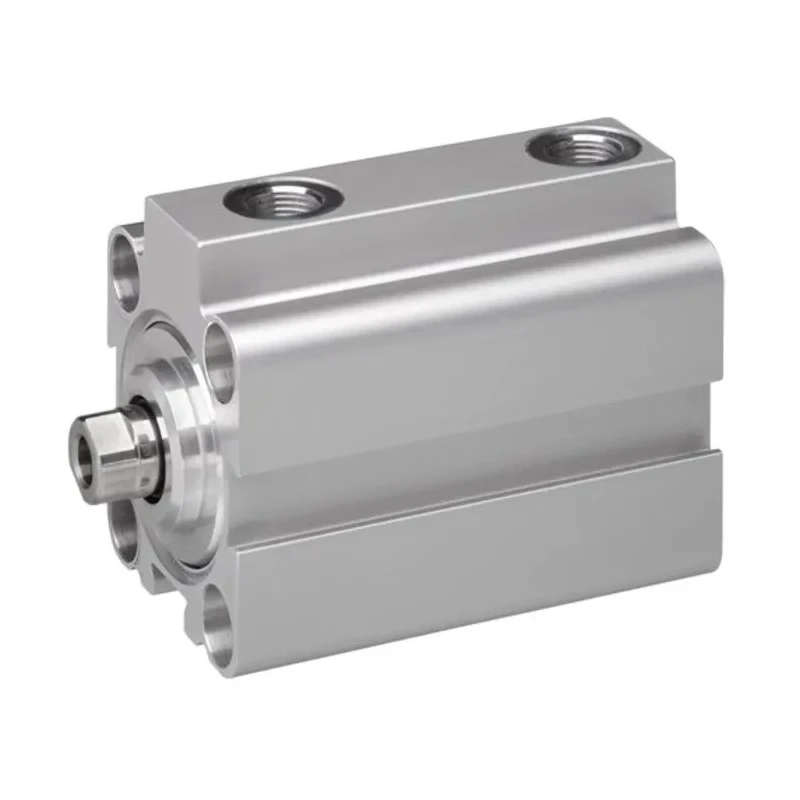

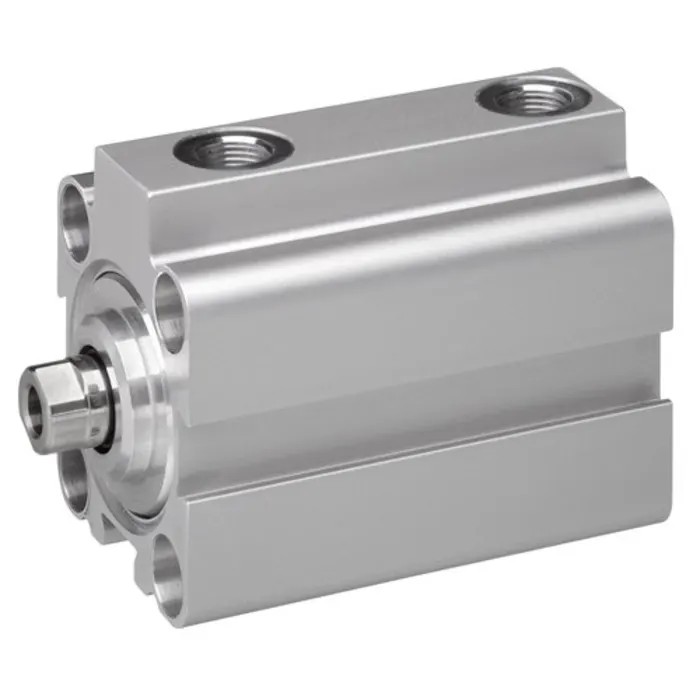

EMERSON ? AVENTICS Pneumatic Compact Cylinder KHZ Series 100mm Bore, 25mm Stroke, Double Acting 0822010694
Specifications
| Country of Origin | Switzerland |
|---|---|
| Brand | EMERSON ? AVENTICS |
| Body Material | Aluminium |
| Maximum Operating Pressure | 10 bar |
| Height | 132mm |
| Length | 101mm |
| Gross Weight | 9kg |
| Width | 124mm |
| Mount Type | Both Ends Tapped |
| Series | KHZ |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -25°C |
| Stroke Length | 25mm |
| Bore Diameter | 100mm |
| Rod Type | Double |
| Action Type | Double Acting |
| Cushioning Type | Rubber |
| Piston Rod Thread Standard | G |
| Piston Rod Thread Size | M5 |
Key Features
- Compact pneumatic cylinder designed for short stroke applications.
- Double acting operation for controlled actuation in both directions.
- Body crafted from lightweight aluminium for durability and corrosion resistance.
- Rubber cushioning ensures smooth operation and extends cylinder life.
- Mountable with both ends tapped, enabling flexible installation.
- Operates under maximum pressure of 10 bar and temperature range -25°C to 80°C.
- Double piston rod with external thread size M5 adhering to G standard.
Product Description
EMERSON AVENTICS 0822010694 Pneumatic Compact Cylinder KHZ Series, featuring a 100mm bore diameter and 25mm stroke length, is a double acting piston rod cylinder designed for industry-grade pneumatic actuation. The aluminium body ensures lightweight yet rugged construction suitable for various mechanical and fluid power applications.
This cylinder incorporates rubber cushioning that provides elastic shock absorption protecting internal components and ensuring smooth cycling. The double acting action allows force and motion control on both directions of the piston rod.
Mounting is facilitated by both ends tapped threads, providing flexible attachment configurations in automated manufacturing, material handling, and pneumatic systems. The piston rods feature a double type configuration with an external M5 thread complying with G standards.
It operates efficiently within a maximum pressure of 10 bar and withstands temperatures from -25°C cold limit up to 80°C max operational heat, making it reliable for varied industrial and laboratory environments.
Dimensions include a body length of 101mm, height of 132mm, and width of 124mm. The approximate gross weight is 9 kg, reflecting sturdy construction. Originating from Switzerland, this pneumatic compact cylinder is ideal for HVAC, manufacturing automation, fluid power systems, and heavy machinery requiring compact stroke actuators.
Compact pneumatic cylinder designed for short stroke applications. Double acting operation for controlled actuation in both directions. Body crafted from lightweight aluminium for durability and corrosion resistance. Rubber cushioning ensures smooth operation and extends cylinder life.
Mountable with both ends tapped, enabling flexible installation. Operates under maximum pressure of 10 bar and temperature range -25°C to 80°C. Double piston rod with external thread size M5 adhering to G standard. Dimensions enable compact design with length 101mm, height 132mm, and width 124mm.
Gross weight approximately 9 kg suitable for robust industrial environments. Explore our comprehensive range of pneumatic cylinders and actuators at EnvMart for reliable fluid power and automation products.
Explore more products in our Pneumatic Piston Rod Cylinders category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this pneumatic compact cylinder is 10 bar.
This model has a length of 101mm, height of 132mm, and width of 124mm.
The stroke length of this cylinder is 25mm.
The body of this compact cylinder is made from lightweight aluminium, which provides durability and corrosion resistance.
It operates efficiently within a temperature range of -25°C to 80°C.
This unit features a double piston rod configuration with an external thread size of M5, adhering to G standards.
It incorporates rubber cushioning that ensures smooth operation and extends the life of the cylinder.
Mounting is facilitated by both ends being tapped, allowing for flexible installation configurations.
This model operates as a double acting cylinder, allowing controlled actuation in both directions.
The approximate gross weight of this cylinder is 9 kg.
This cylinder originates from Switzerland.
It is ideal for applications in HVAC, manufacturing automation, fluid power systems, and heavy machinery requiring compact stroke actuators.
