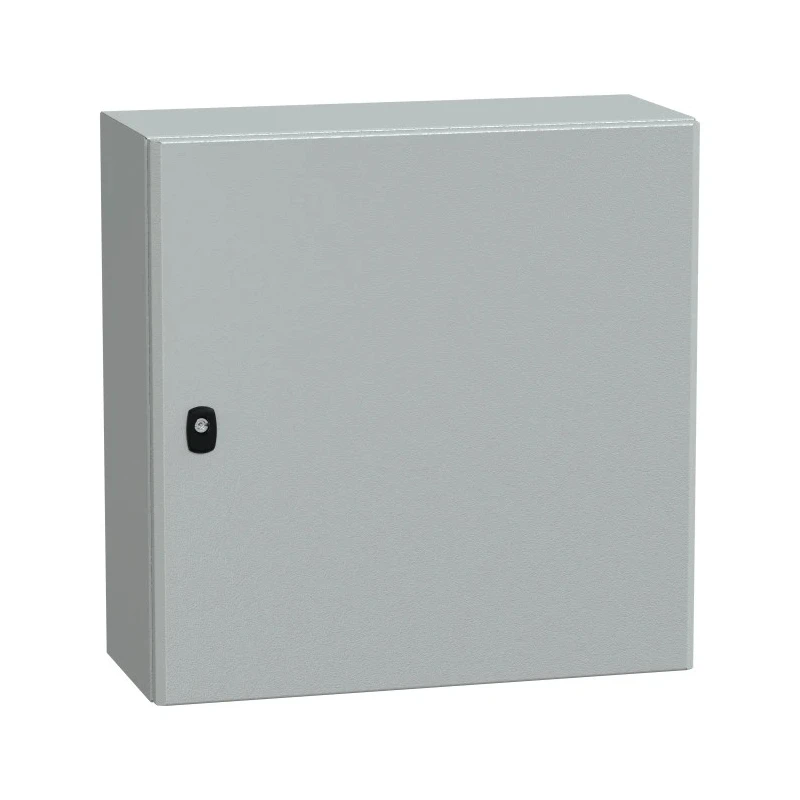

Schneider Electric PanelSeT S3DEX Series Steel Wall Box, IP66, ATEX Certified, 600 mm x 600 mm x 250 mm S3DEX
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Colour | Grey |
| Body Material | Steel |
| Model | S3DEX |
| IP Rating | IP66 |
| Series | PanelSeT S3DEX |
| External Width | 600mm |
| External Depth | 250mm |
| External Height | 600mm |
| Hazardous Area Certification | ATEX |
| Standards/Approvals | REACH, cUL, BV, IEC 62208, UL, RoHS, DNV, LR |
| Door Lock Type | Double Bar |
| Better World Claim | Designed for Disassembly |
| Internal Mount Type | Panel |
| IK Rating | IK10 |
| nVent - Hoffman GL66 Series Steel Wall Box, IP66, 600 mm x 600 mm x 210mmBrand | nVent - Hoffman |
| Legrand Atlantic Series Steel Wall Box, IP66, 600 mm x 600 mm x 250 mmBrand | Legrand |
| Sarel Spacial 3D ATEX Series Steel Wall Box, IP66, 600 mm x 600 mmBrand | Sarel |
Key Features
- Constructed from durable steel with a grey epoxy-polyester powder finish for corrosion resistance.
- Compact dimensions of 600 mm height x 600 mm width x 250 mm depth optimize installation space.
- Certified ATEX protection for explosive atmospheres making it suitable for gas and dust hazardous locations.
- Features a 120° reversible door with a 3-point double-bar lock ensuring secure access.
- IP66 ingress protection rating guarantees dust-tightness and protection against powerful water jets.
- Designed with a gutter-shaped front rail and double sheet thickness for enhanced mechanical strength.
- Mechanical impact resistance rated IK10 to withstand heavy impact from a 5 kg object dropped from 20 cm.
- Includes fixing kit for wall mounting, facilitating straightforward installation.
Product Description
Schneider Electric S3DEX Series Steel Wall Box, model S3DEX, is a compact and sturdy steel enclosure designed for industrial and hazardous area electrical installations. It measures 600 mm in height, 600 mm in width, and 250 mm in depth, providing an optimal footprint for panel mounting and electrical component protection.
This enclosure is certified to ATEX standards, making it suitable for use in environments with potential explosive atmospheres involving gases and dust. It features an IP66 rating, ensuring full protection against dust ingress and powerful water jets, and an IK10 mechanical impact rating, offering robust defense against physical impacts.
The box is constructed from steel with a grey (RAL 7035) epoxy-polyester powder coated finish for enhanced durability and corrosion resistance. The design includes a gutter-shaped front rail with double sheet thickness for improved mechanical strength. The 120° reversible door is equipped with a secure 3-point double-bar lock, utilizing a 3 mm double-bar lock mechanism for safety.
The enclosure does not include a mounting or gland plate but comes complete with a fixing kit for wall mounting applications. It supports internal panel mounting and is designed to be used with other ATEX certified components to maintain overall system compliance in hazardous areas.
Schneider Electric ensures that this PanelSeT S3DEX wall box complies with an array of international standards including IEC 62208, REACH, UL, RoHS, cUL, DNV, and LR, reflecting its quality and suitability for various industrial sectors such as manufacturing, chemical processing, HVAC, water treatment, and electrical utilities.
Constructed from steel with epoxy-polyester powder coating providing corrosion resistance. ATEX certified for explosive atmospheres classified as II 2 GD Ex e IIC Gb Ex tb IIIC Db according to directive 94/9/EC. Ingress Protection IP66 and mechanical impact resistance IK10 ensures rugged protection in harsh environments.
Compact size of 600 mm x 600 mm x 250 mm ideal for wall mounting applications. Equipped with a 120° reversible door and 3 points double-bar locking system for secure access. Complies with multiple international standards including IEC 62208, UL, RoHS, and REACH.
Designed for use with compatible ATEX certified electrical, pneumatic, and hydraulic components. Includes fixing kit facilitating straightforward wall mounting installation. Manufactured in France, reflecting high quality and precision engineering.
Explore the range of electrical enclosures and Wall Boxes on EnvMart to find the best fit for your industrial and hazardous area needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has external dimensions of 600 mm in height, 600 mm in width, and 250 mm in depth.
The enclosure has an IP66 ingress protection rating, ensuring it is dust-tight and protected against powerful water jets.
It is constructed from steel with a grey epoxy-polyester powder coating for corrosion resistance.
It is ATEX certified for use in explosive atmospheres classified as II 2 GD Ex e IIC Gb Ex tb IIIC Db according to directive 94/9/EC.
The S3DEX wall box has an IK10 mechanical impact resistance rating, allowing it to withstand impacts from a 5 kg object dropped from 20 cm.
It features a 120° reversible door equipped with a 3-point double-bar lock for secure access.
It includes a fixing kit for wall mounting, facilitating straightforward installation.
This model complies with multiple international standards including IEC 62208, REACH, UL, RoHS, DNV, and LR.
It supports internal panel mounting, making it suitable for various electrical components.
The enclosure is finished in a grey color (RAL 7035).
It is manufactured in France, reflecting high quality and precision engineering.
It is designed for industrial and hazardous area electrical installations, suitable for environments like manufacturing and chemical processing.
