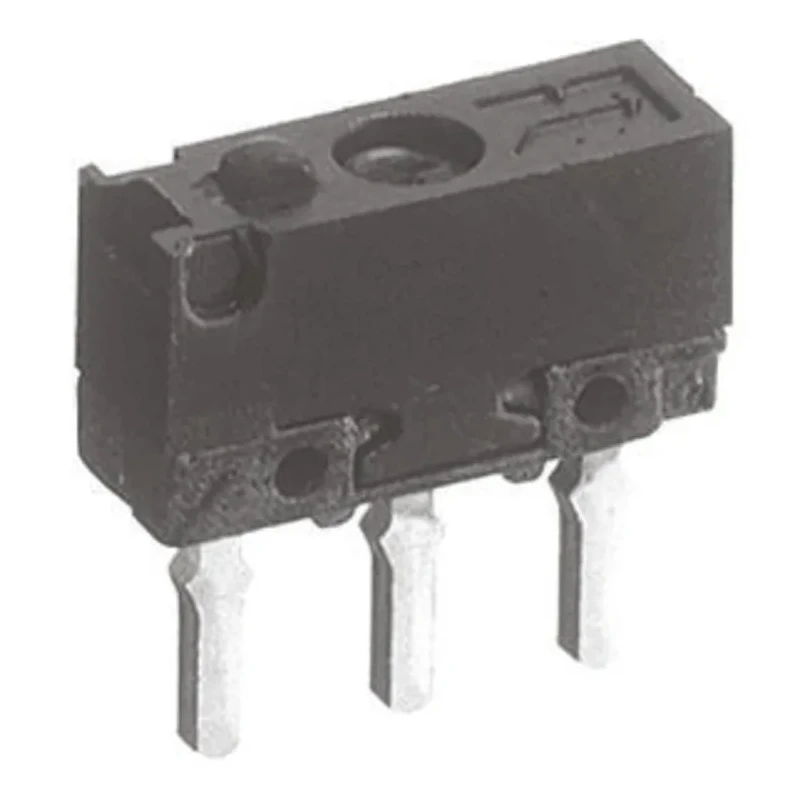

Panasonic Pin Plunger Snap Action Micro Switch, PCB Terminal, 500mA, 30 V dc, SPCO AV4404

Panasonic AV4404 is a superminiature pin plunger snap action micro switch designed to support precise switching tasks in electronics and electrical assemblies. With its compact size of 4.5 x 7.5 x 4.5 mm (PCB variant) and extremely lightweight construction, this micro switch is ideal for tightly packed circuit boards and space-sensitive applications such as compact visual equipment, small audio devices, and office automation equipment.

The switch features a pin plunger actuator type with a PCB terminal configuration for easy integration into printed circuit boards. It utilizes a single-pole changeover (SPCO) contact configuration and snap action mechanism to provide rapid and reliable switching.

Operating parameters include a contact current rating of 500mA and contact DC voltage of 30 V dc, suited for low-load control circuits. The operating force required is 0.98 Newton, which allows responsive actuation with minimal physical input. This micro switch maintains performance across a temperature range of -25°C up to 80°C, assuring operational stability in various environments.

Durability is reinforced with an expected mechanical life of 300000 operations, making it suitable for long-term use in industrial, laboratory, and commercial electronic applications. The product complies with RoHS environmental standards, underscoring Panasonic’s commitment to green manufacturing.

Manufactured in Japan, the AV4404 micro switch exhibits high manufacturing quality and reliability. Its small size and versatile PCB mounting capability enable tight integration in modern electronic systems.

Fits compact visual and audio equipment due to superminiature size. Pin plunger actuator type enhances precise switch operation. SPCO contact configuration with snap action mechanism. Operational temperature from -25°C to 80°C.

Mechanical life rated at 300000 operations for durability. Low actuation force of 0.98 Newton. Lightweight at approx. 0.2g for PCB terminal variant. RoHS compliant ensuring environmental safety. Designed and manufactured in Japan for quality assurance.
