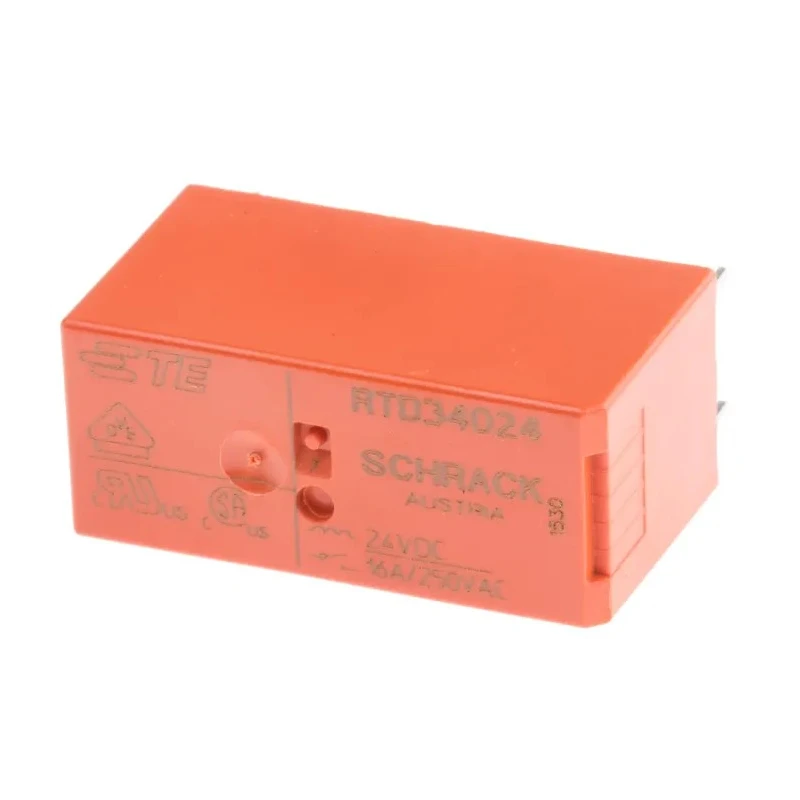

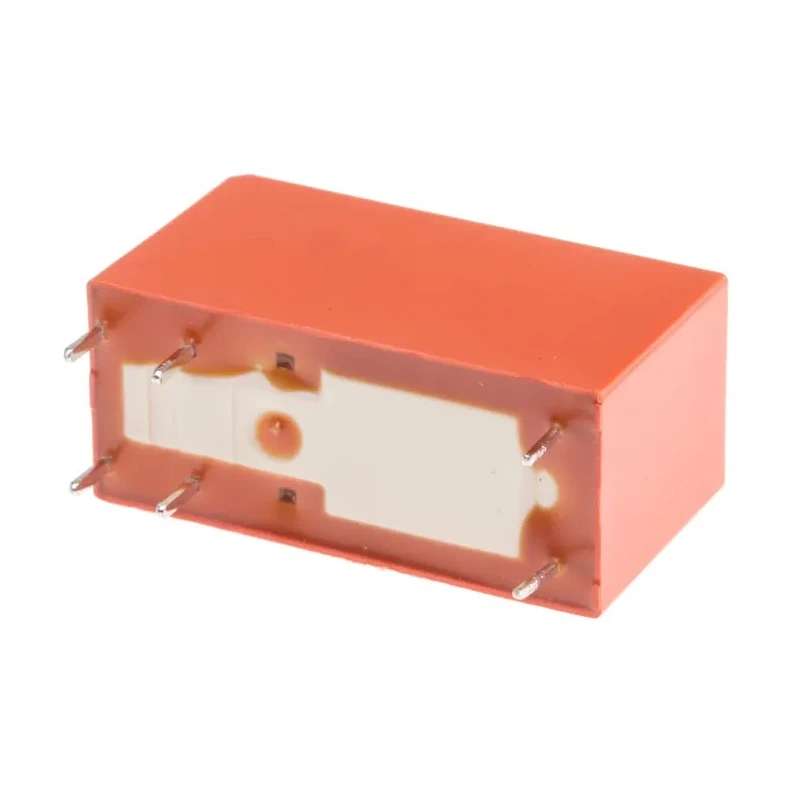

TE Connectivity RT1 Series PCB Power Relay 24V dc Coil 16A Switching Current SPST RTD34024
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RTD34024 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | IEC 60335-1, RoHS, VDE |
| Coil Resistance | 1.4kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
Key Features
- Designed for PCB mounting with solder terminals for secure connections.
- RT1 series relay featuring 3.5mm pinning and flux proof design.
- Switching power rated up to 4kVA and switching AC voltage up to 400V ac.
- Operates in temperature range from -40°C to 85°C for reliable performance.
- Coil resistance of 1.4kΩ and coil power consumption of 250mW.
- Silver nickel alloy contact material ensuring high durability and conductivity.
- Complies with IEC 60335-1, RoHS, and VDE standards and approvals.
Product Description
TE Connectivity RTD34024 PCB Power Relay is a robust and compact relay suitable for various industrial control and automation applications. Featuring a 24V dc coil and a single-pole single-throw (SPST) contact configuration, it is designed for PCB mounting with solder terminals, ensuring stable and reliable electrical connections.
Part of the RT1 series, this relay offers 3.5mm pinning and a flux proof design to protect against environmental contaminants. The relay supports a switching current of 16A and can handle switching power up to 4kVA with an AC voltage rating of 400V ac, making it suitable for moderate power applications.
The relay operates reliably over a wide temperature range, from -40°C to 85°C, and features a coil resistance of 1.4kΩ with a low coil power consumption of 250mW. Its compact size (29mm length, 15.7mm height, and 12.7mm width) enables easy integration into tight PCB layouts.
Durability is further enhanced by silver nickel alloy contacts that ensure long service life and excellent electrical conductivity. The RTD34024 complies with internationally recognized standards including IEC 60335-1, RoHS, and VDE, certifying its safety and environmental compliance.
This relay assembly finds frequent usage in industrial automation, heating systems, security lighting, and domestic appliance controls. Designed for PCB mounting with solder terminals for secure connections. RT1 series relay featuring 3.5mm pinning and flux proof design.
High switching current and power suitable for varied industrial applications. Wide operating temperature range for versatile deployment environments. Durable silver nickel alloy contacts ensuring longevity. Compliance with major safety and environmental standards.
Compact size facilitates installation in constrained PCB spaces. Explore a wide range of Power Relays and contactors at EnvMart to fulfill your industrial and manufacturing automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 16A, making it suitable for moderate power applications.
The coil voltage for the RTD34024 is 24V dc, which is necessary for its operation.
It can handle a maximum switching AC voltage of 400V ac, allowing it to be used in various applications.
The dimensions of this unit are 29mm in length, 15.7mm in height, and 12.7mm in width, facilitating easy integration into PCB layouts.
The RTD34024 operates reliably within a temperature range of -40°C to 85°C, suitable for diverse environments.
This model features a single-pole single-throw (SPST) contact configuration, ideal for various control applications.
The coil resistance for this relay is 1.4kΩ, which is a critical specification for its operation.
The coil power consumption of this unit is 250mW, ensuring efficient operation.
The contacts are made of silver nickel alloy, which provides good conductivity and durability.
This relay complies with IEC 60335-1, RoHS, and VDE standards, ensuring safety and environmental compliance.
It is designed for PCB mounting with solder terminals, ensuring secure and stable connections.
This relay is suitable for various industrial control and automation applications, including heating systems and security lighting.
