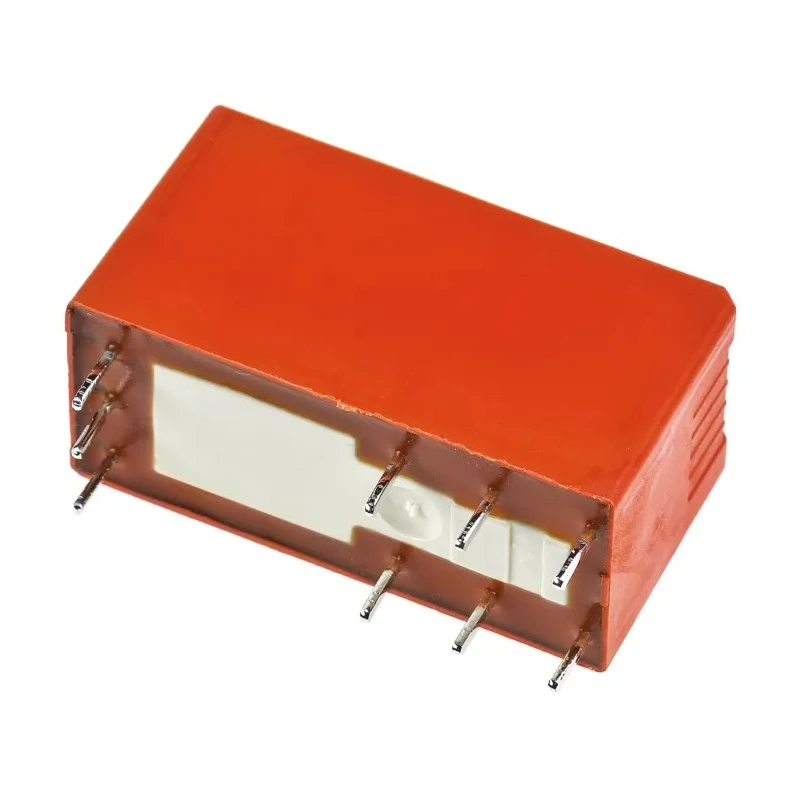

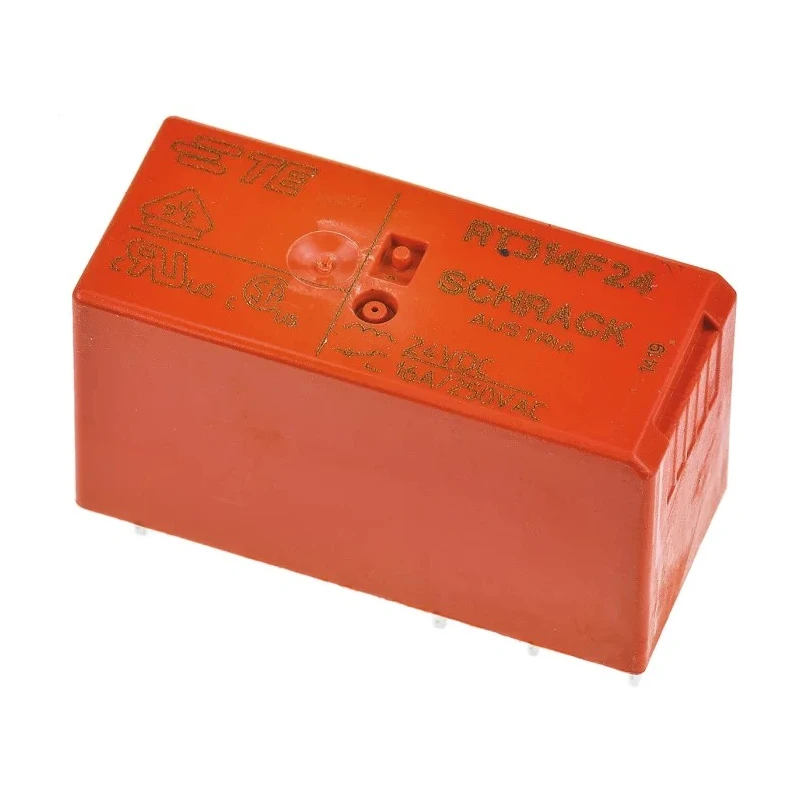

TE Connectivity PCB Power Relay 24V DC Coil 16A Switching Current SPDT RT314F24
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT314F24 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | SCHRACK |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Coil Resistance | 886Ω |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
Key Features
- This power relay features a 24V DC coil voltage.
- It has a Single Pole Double Throw (SPDT) contact configuration.
- The relay supports a switching current of 16A for effective load handling.
- Designed for PCB mounting with through-hole terminals for secure fitment.
- Coil resistance is 886 Ohms, ensuring reliable coil operation.
- Operating temperature ranges from -40°C to 85°C for robust industrial use.
- Switching AC voltage capability up to 400V AC enhances versatility.
- Constructed with silver alloy contacts for optimized conductivity and durability.
Product Description
TE Connectivity RT314F24 is a PCB Power Relay designed for industrial and electronic applications requiring reliable switching performance with a 24V DC coil and a 16A switching current.
This SPDT relay features through-hole terminals for secure PCB mounting and is part of the SCHRACK series known for robust bistable/latching relay technology.
Its silver alloy contacts ensure high conductivity and extended lifespan under heavy switching loads. The relay supports both high switching power of 4kVA and AC voltage up to 400V AC, making it well-suited for control circuits and automation systems.
Operating temperatures from -40°C to 85°C allow stable function in harsh environmental conditions. The coil resistance of 886Ω is optimized for energy efficiency.
With compact dimensions measuring 29mm length, 15.7mm height, and 12.7mm width, it integrates easily into densely packed electronic assemblies in industrial, automation, HVAC, and manufacturing equipment.
This power relay features a 24V DC coil voltage. It has a Single Pole Double Throw (SPDT) contact configuration. The relay supports a switching current of 16A for effective load handling. Designed for PCB mounting with through-hole terminals for secure fitment.
Coil resistance is 886 Ohms, ensuring reliable coil operation. Operating temperature ranges from -40°C to 85°C for robust industrial use. Switching AC voltage capability up to 400V AC enhances versatility. Constructed with silver alloy contacts for optimized conductivity and durability.
Compact dimensions: 29mm length, 15.7mm height, and 12.7mm width suit space-constrained assemblies. Meets RoHS environmental compliance and manufactured in Austria.
TE Connectivity RT314F24 power relays are widely used in industrial automation, electrical control panels, communication equipment, and testing instruments where reliable switching and long service life are critical.
Explore EnvMart's comprehensive catalog for more TE Connectivity Power Relays, offering trusted performance for critical applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 24V DC.
This model supports a maximum switching current of 16A.
It features a Single Pole Double Throw (SPDT) contact configuration.
The dimensions of this relay are 29mm in length, 15.7mm in height, and 12.7mm in width.
The operating temperature range is from -40°C to 85°C.
The coil resistance is 886 Ohms.
This relay is designed for PCB mounting with through-hole terminals.
The relay can switch AC voltage up to 400V AC.
The contacts are constructed from silver alloy, which optimizes conductivity.
This relay meets RoHS environmental compliance standards.
It is manufactured in Austria.
This power relay is suitable for industrial automation, electrical control panels, communication equipment, and testing instruments.
