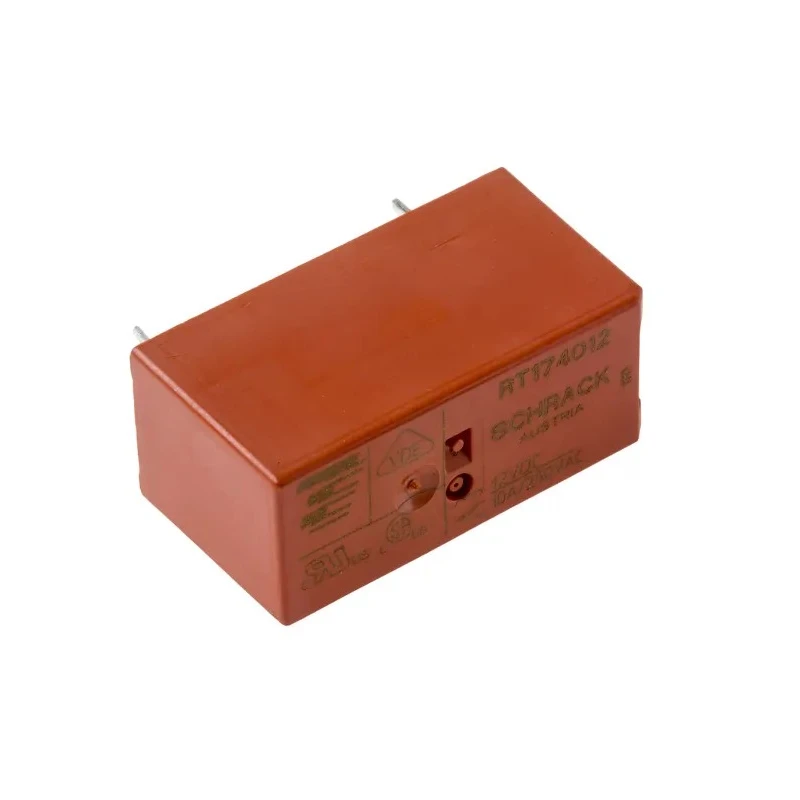

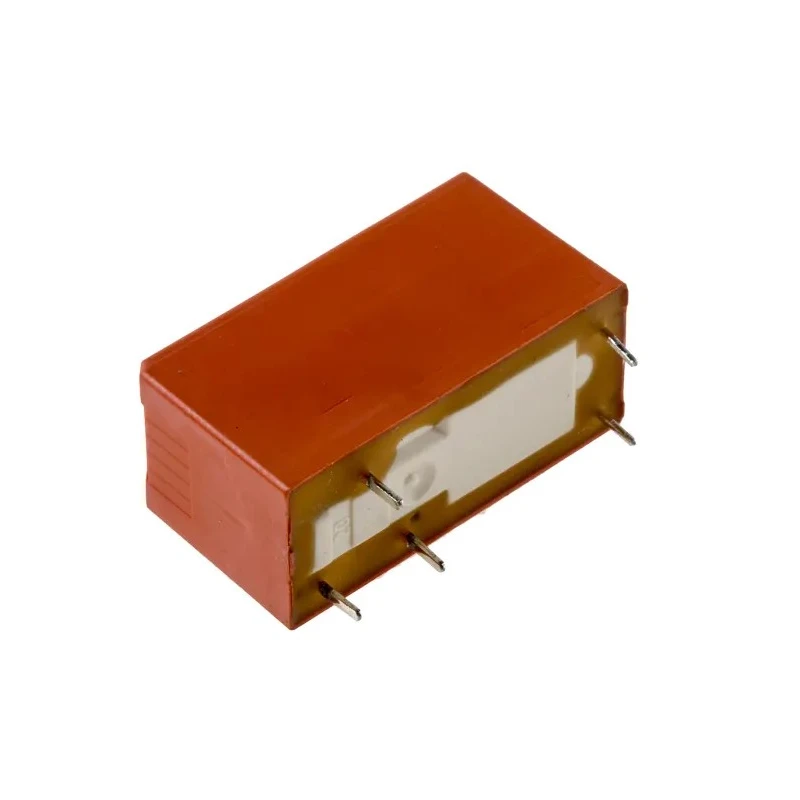

TE Connectivity Power Relay PCB Mount SPDT 12V DC Coil 10A Switching Current RT174012
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT174012 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Solder |
| Standards/Approvals | VDE, RoHS, IEC 60335-1 |
| Coil Resistance | 576Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
Key Features
- Equipped with an SPDT contact configuration for versatile switching.
- Designed for PCB mounting with solder terminal type for secure connections.
- Coil voltage rated at 12V DC with ultra-high coil sensitivity at 250mW power consumption.
- Capable of switching AC voltages up to 400V with maximum switching power of 2.5kVAC.
- Wide operating temperature range from -40°C to 85°C.
- Constructed with silver nickel alloy contact material for durability and reliability.
- Certifications including VDE, RoHS, IEC 60335-1 ensuring compliance and safety standards.
Product Description
TE Connectivity RT174012 is a high-performance power relay designed for printed circuit board (PCB) mounting applications requiring reliable switching of electrical loads. This relay features a sensitive coil with ultra-low power consumption of 250mW at 12V DC coil voltage, making it efficient for energy-sensitive designs. It is built with a single pole double throw (SPDT) contact configuration capable of switching currents up to 10A and AC voltages up to 400V, suitable for a diverse range of industrial and domestic applications.
The design emphasizes compactness and durability, with dimensions of 29mm length, 12.7mm width, and 15.7mm height, optimizing space in PCB layouts. The relay contacts are made of silver nickel alloy, providing excellent conductivity and resistance to wear, ensuring long operational life. Operating temperature range from -40°C to 85°C allows usage in harsh environmental conditions.
This RT1 series relay by TE Connectivity complies with international standards such as VDE, RoHS, and IEC 60335-1, assuring quality and safety in automation, temperature control, and domestic appliance applications. The solder terminal type simplifies PCB integration and manufacturing processes.
Compact, robust PCB power relay with 10A switching capacity. Ultra-sensitive coil specification reduces energy usage. High-quality silver nickel alloy contacts for reliability. Wide temperature operating range for diverse environments.
Compliance with international safety and quality standards. Widely used in industrial automation, HVAC, and domestic appliances. Easy PCB mounting with solder terminals enhances production efficiency. Manufactured in Austria ensuring trusted European quality.
This product is well suited for engineers and designers in electronics manufacturing industries seeking dependable relay components for sensitive control circuit applications. For more industrial-grade relays and electrical components, browse the Electronics & Electricals > Relays & Contactors > Power Relays category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay has a maximum switching current capacity of 10A.
The coil voltage rating for this model is 12V DC.
It features a single pole double throw (SPDT) contact configuration.
The relay can switch AC voltages up to 400V.
The dimensions are 29mm in length, 12.7mm in width, and 15.7mm in height.
The coil power consumption is 250mW.
It operates within a temperature range of -40°C to 85°C.
The contacts are constructed from silver nickel alloy.
This relay is designed for PCB mounting with solder terminals.
It complies with VDE, RoHS, and IEC 60335-1 standards.
This model is suitable for industrial automation, HVAC, and domestic appliance applications.
It is manufactured in Austria.
