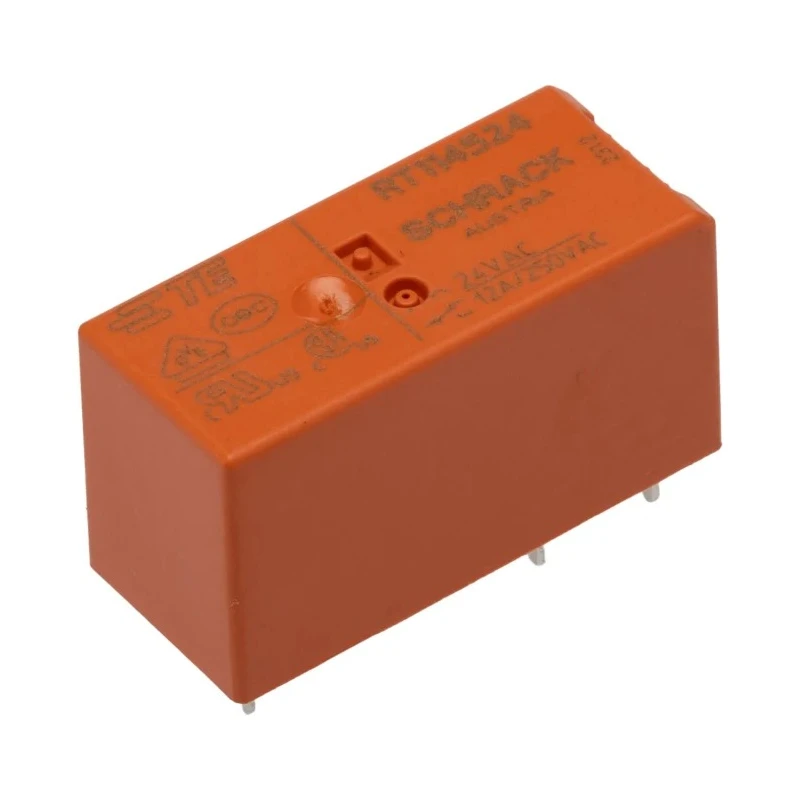

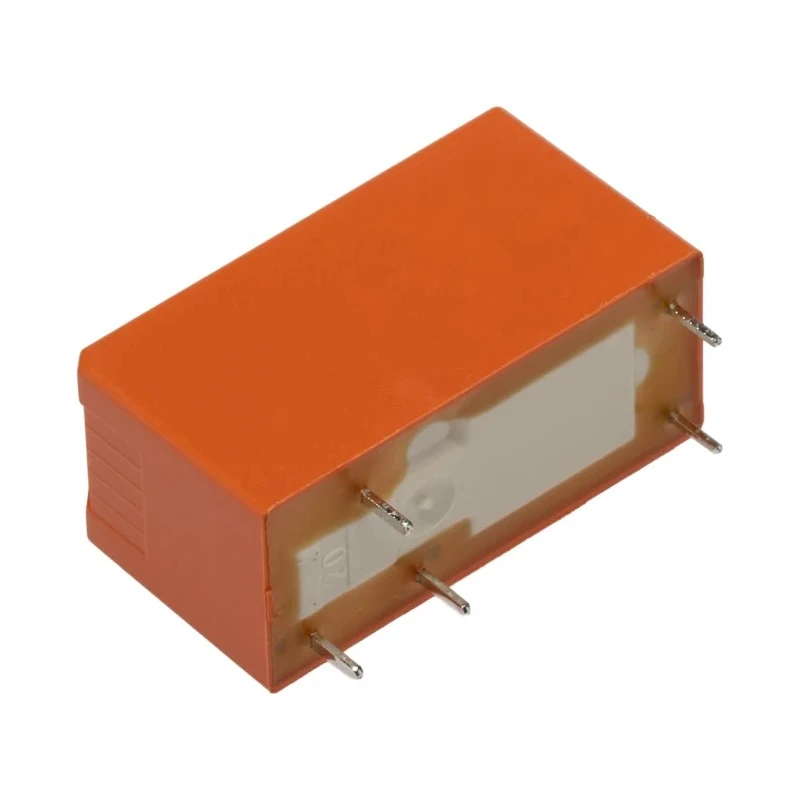

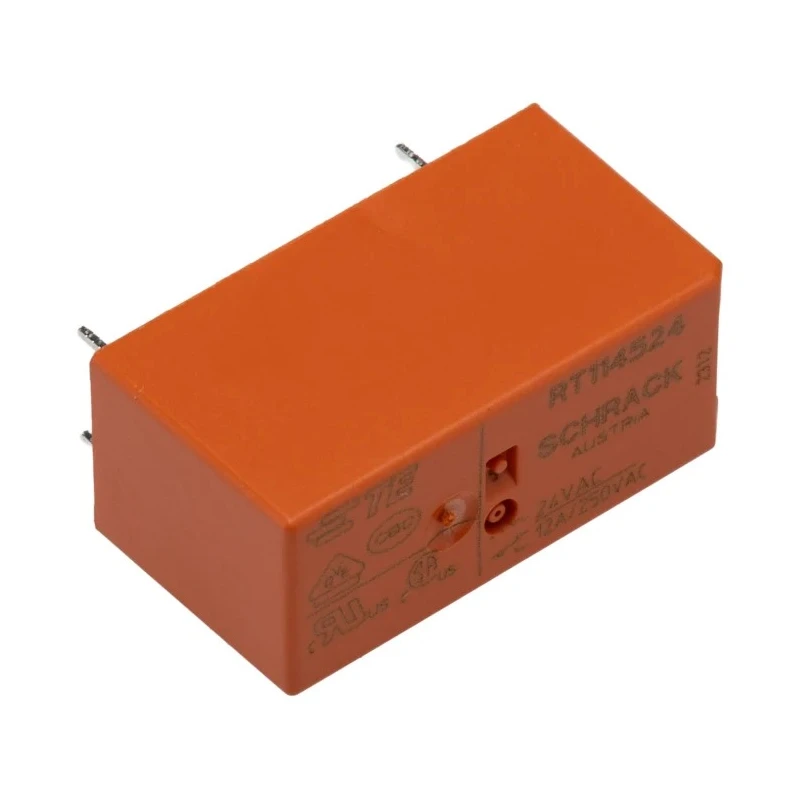

TE Connectivity PCB Power Relay 24V ac Coil 12A Switching Current SPDT RT114524

TE Connectivity RT114524 PCB Power Relay is a high-quality power relay designed with a 24V AC coil voltage and a 12A switching current rating, suitable for industrial and electrical uses. This relay features a Single Pole Double Throw (SPDT) contact configuration and is intended for through-hole PCB mounting, offering a reliable connection and ease of integration in electrical circuits.

With a compact form factor measuring 29mm in length, 12.7mm in width, and 15.7mm in height, it provides efficient switching power up to 3kVA at 400V AC voltage, making it suitable for demanding switching applications. The relay coil resistance of 350 ohms and coil power of 250mW ensure operation efficiency and reduced power consumption.

Designed to operate in harsh conditions, the RT114524 can function reliably in environmental temperatures ranging from -40°C to 70°C. The contact material is silver nickel alloy, enhancing durability and electrical conductivity for consistent performance over time.

This relay complies with internationally recognized standards such as RoHS, VDE, and IEC 60335-1, confirming its quality and safety for use in automation, security lighting, heating systems, and interface applications across industrial, commercial, and domestic environments.

Single Pole Double Throw (SPDT) contact configuration for versatile switching. Through-hole PCB mount type for secure installation. Operates from -40°C to 70°C for extensive temperature tolerance. Switching power up to 3kVA at 400V AC voltage.

Silver nickel alloy contacts for enhanced reliability. Coil resistance of 350Ω and coil power consumption of 250mW. Compact dimensions: 29mm length, 12.7mm width, 15.7mm height. Compliance with RoHS, VDE, IEC 60335-1 standards.

Suitable for industrial, automation, security, and heating system uses. Explore more quality Power Relays like the TE Connectivity RT114524 to enhance your electrical system efficiency at EnvMart.
