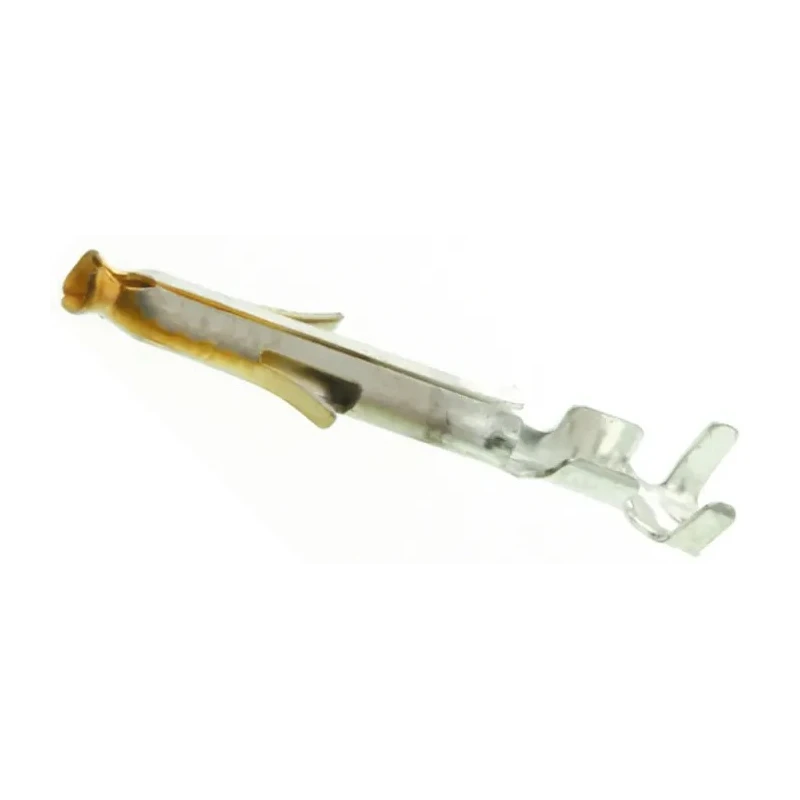

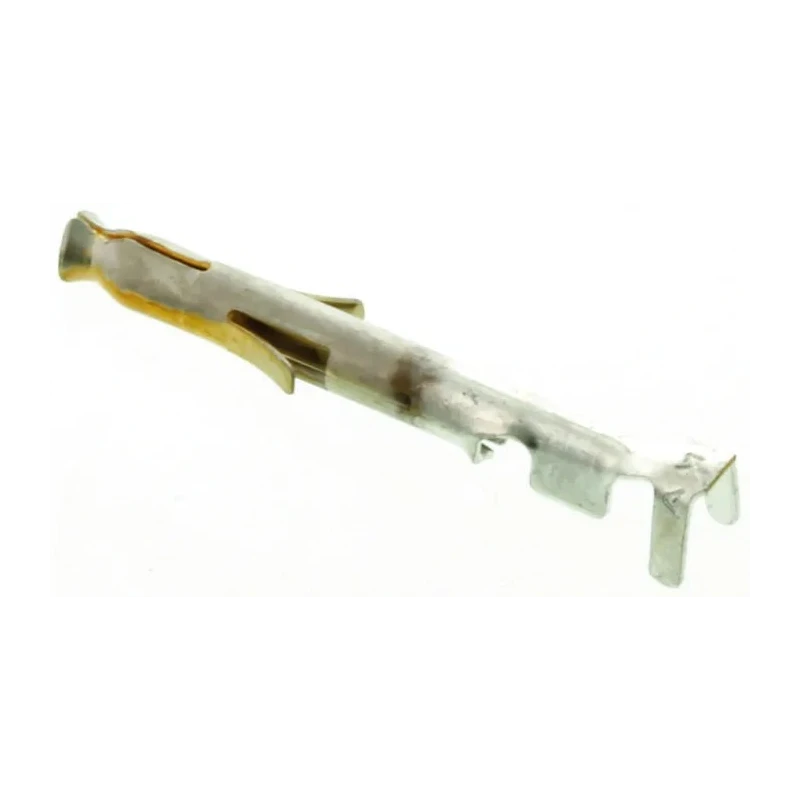

TE Connectivity Mini-Universal MATE-N-LOK Series Female Crimp Terminal 9.5A Current Gold Plating Brass Contact 1-770986-0
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Current | 9.5A |
| Gender | Female |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| For Use With | Mini-Universal MATE-N-LOK Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.1mm² |
| Maximum Wire Size mm² | 0.4mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 20mΩ |
Key Features
- This crimp terminal is designed for use with Mini-Universal MATE-N-LOK Connector Housings.
- It supports a current rating of 9.5 amperes to ensure efficient power transmission.
- The contacts are made of brass material providing robust durability and mechanical strength.
- Gold plating enhances corrosion resistance and improves electrical conductivity.
- Contact resistance does not exceed 20 milliohms for optimal performance.
- Operating temperature ranges from -55°C to 105°C, suitable for various environments.
- Termination is by crimping, ensuring secure and permanent connections.
- Manufactured in the United States to high-quality standards.
Product Description
TE Connectivity 1-770986-0 Mini-Universal MATE-N-LOK Series Female Crimp Terminal is engineered for reliable electrical connections in electronics and power applications. It is specifically designed for Mini-Universal MATE-N-LOK connector housings and supports wire sizes from 26 AWG minimum to 22 AWG maximum. The terminal carries a rated current of 9.5 amperes, making it suitable for medium-power electrical circuits.
The contact material is brass, ensuring excellent mechanical strength and durability. Furthermore, the gold plating provides superior corrosion resistance and enhanced conductivity, which is critical in demanding industrial or electronic environments.
With a maximum contact resistance of 20 milliohms, this terminal assures minimal signal loss and efficient power transfer. It can operate within a temperature range from -55 degrees Celsius to 105 degrees Celsius, making it versatile for various industrial, laboratory, and manufacturing equipment.
Termination is accomplished through crimping, guaranteeing secure and long-lasting electrical connections. The product is manufactured in the United States, adhering to stringent quality standards.
This crimp terminal is female gender and mates with compatible Mini-Universal MATE-N-LOK connector housings. The balance of durable brass and gold plating ensures low resistance and reliable current flow. Its compact design is ideal for PCB connectors and wire harness assemblies in electronics manufacturing.
Temperature and current ratings support use in commercial, industrial, and power distribution applications. The lightweight yet robust components facilitate efficient electrical connections with minimal maintenance.
Suitable for use in industrial electronics, power Connectors, and manufacturing automation, this product enhances system reliability and signal integrity. Browse the Electronics Components category for related TE Connectivity products on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal supports a current rating of 9.5 amperes, making it suitable for medium-power electrical circuits.
It operates within a temperature range from -55°C to 105°C, suitable for various environments.
The contact material is brass, and it features gold plating for enhanced corrosion resistance and improved electrical conductivity.
Termination is accomplished through crimping, ensuring secure and permanent connections.
It supports wire sizes from 26 AWG minimum to 22 AWG maximum, corresponding to 0.1 mm² to 0.4 mm².
The maximum contact resistance does not exceed 20 milliohms, ensuring optimal performance and minimal signal loss.
Yes, its compact design makes it ideal for PCB connectors and wire harness assemblies in electronics manufacturing.
It is specifically designed for use with Mini-Universal MATE-N-LOK connector housings.
This terminal is manufactured in the United States, adhering to high-quality standards.
It is suitable for use in industrial electronics, power connectors, and manufacturing automation applications.
This terminal is female gender, designed to mate with compatible Mini-Universal MATE-N-LOK connector housings.
Gold plating enhances corrosion resistance and improves electrical conductivity, which is critical in demanding environments.
