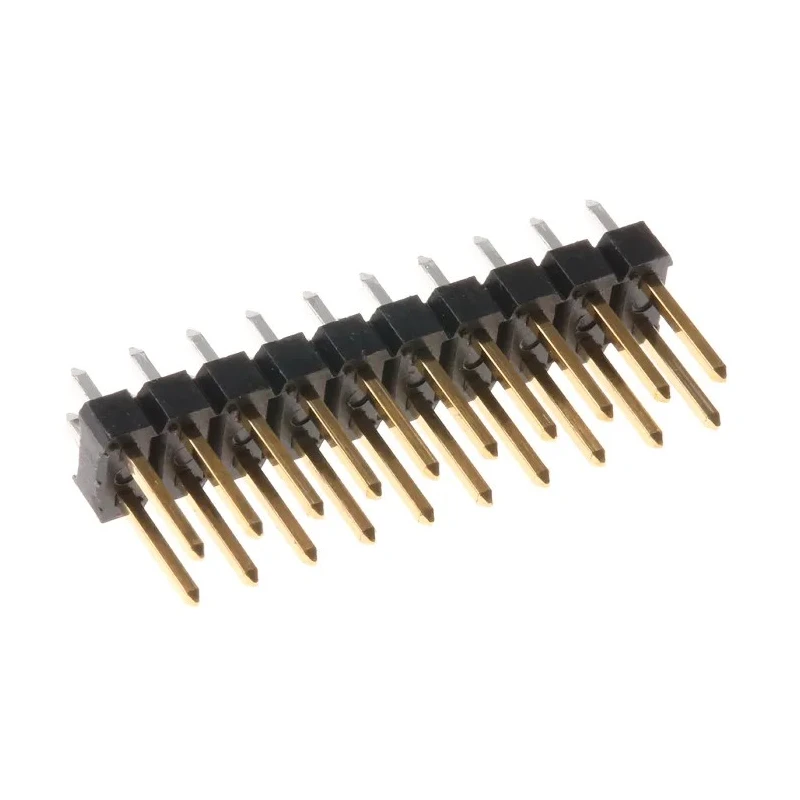

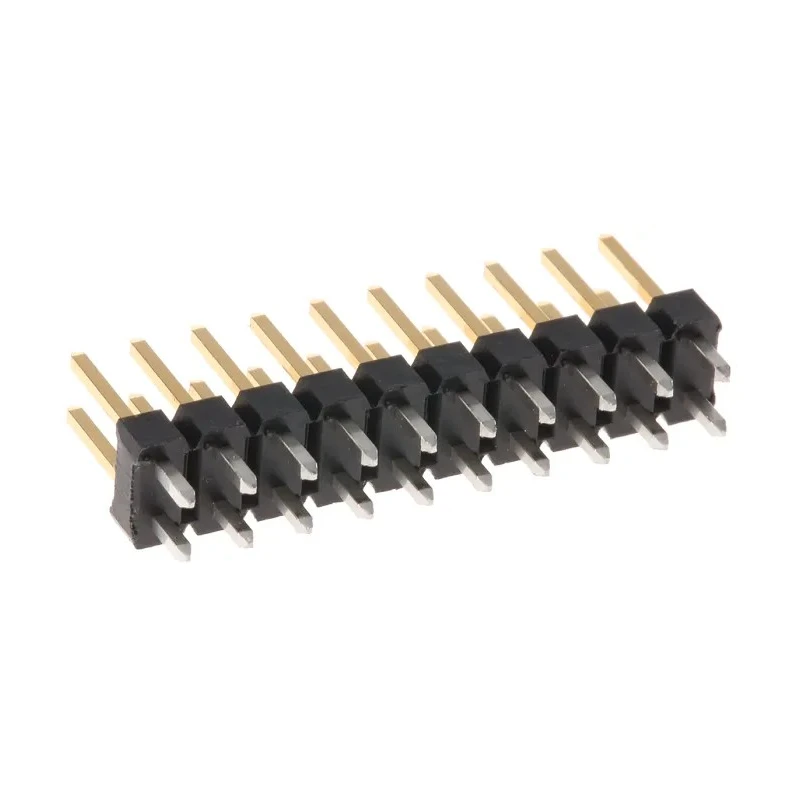

Amphenol Communications Solutions Bergstik Series Straight Through Hole Pin Header, 20 Contacts, 2.54 mm 77313-101-20LF

Amphenol Communications Solutions 77313-101-20LF Bergstik Series Straight Through Hole Pin Header is a premium electronic component designed to provide reliable and flexible connection solutions in board-to-board and wire-to-board applications. This connector features 20 male contacts arranged in two rows with a 2.54 mm pitch, optimized for through-hole mounting and straight orientation.

The housing is made from high-temperature thermoplastic material that withstands reflow soldering processes, ensuring durability and long-term performance in demanding electronic assemblies. The contacts are manufactured from phosphor bronze and plated with gold, providing excellent electrical conductivity and resistance to oxidation and corrosion.

Operating within a temperature range from -65°C to 125°C, this pin header is robust in challenging environments. The tail pin length of 2.41 mm and mating pin length of 5.84 mm accommodate various mating connectors successfully, including Dubox series receptacles, Quickie IDC receptacles, and PV series crimp housings.

With a current rating of 3A and voltage rating of 1500V, this component offers an economic and versatile solution for industrial, electronic manufacturing, communications equipment, and other automated system applications. The design includes stand-offs on the housing that allow solder contamination to be removed easily, enhancing assembly quality.

The pin header features a straight orientation, designed for through hole mount types. Housing material is high-temperature thermoplastic compatible with reflow soldering. Contact material is phosphor bronze with gold plating for enhanced conductivity and corrosion resistance.

The header is unshrouded and male contact gender. Operating temperature ranges from -65°C minimum to 125°C maximum. Tail pin length measures 2.41 mm and mating pin length 5.84 mm. Designed for board-to-board and wire-to-board connector systems.

Manufactured in France under high quality standards. Mounting incorporates stand-offs to allow removal of solder contamination. Features cost-effective duplex plating and customizable length since it can be cut to size.

These features make the 77313-101-20LF Bergstik Pin Header an ideal choice for professionals seeking reliable, high-quality connectors for industrial automation, telecommunications, electronic hardware production, and laboratory equipment connections.
