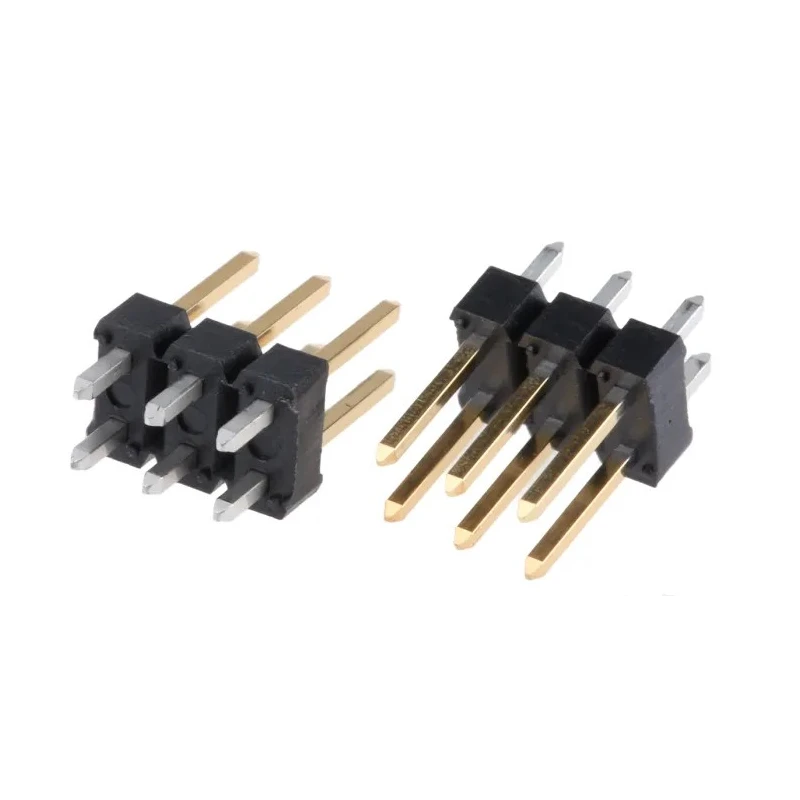

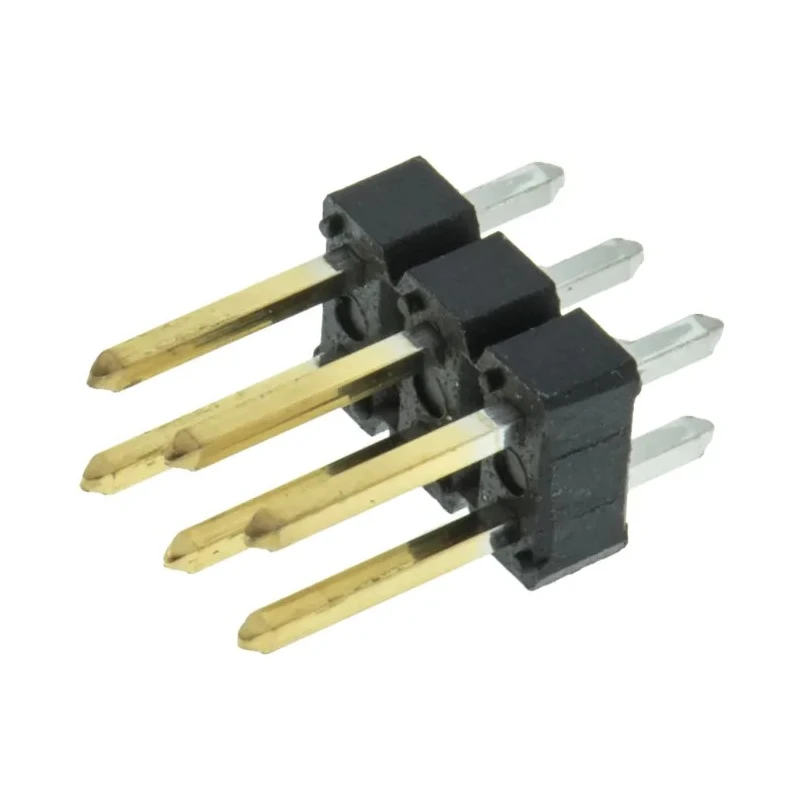

Amphenol Communications Solutions Bergstik Series Straight Through Hole Pin Header, 6 Contacts, 2.54 mm 77313-101-06LF
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 1.5kV |
| Brand | Amphenol Communications Solutions |
| Orientation | Straight |
| Current | 3A |
| Model | 77313-101-06LF |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | CHINA RoHS, EU RoHS, REACH/SvHC |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 2.41mm |
| Mating Pin Length | 5.84mm |
Key Features
- This pin header supports a current rating of 3A.
- The housing is made from reflow solder compatible high temperature thermoplastic.
- Contact material is phosphor bronze with gold plating for durability.
- It features a straight orientation and unshrouded design.
- The product operates within a temperature range from -65°C to 125°C.
- Mount type is through hole suitable for PCB assembly.
- The tail pin length measures 2.41 mm with a mating pin length of 5.84 mm.
- This header can be cut to custom lengths to suit different applications.
Product Description
Amphenol Communications Solutions 77313-101-06LF Bergstik Series Straight Through Hole Pin Header features 6 male contacts arranged in 2 rows with a 2.54 mm pitch, designed for reliable Board-to-Board and Wire-to-Board connectivity. The housing is constructed from high temperature thermoplastic which is compatible with reflow solder processes, enhancing assembly robustness in demanding industrial applications.
The contacts are made of phosphor bronze alloy plated with gold for excellent conductivity and resistance to corrosion, making this header suitable for industrial, electronic, and communication module assemblies. It supports a current capacity of 3 amperes and withstands voltage up to 1.5 kV, providing reliable electrical performance under rigorous operating conditions.
This pin header is designed with a straight orientation and unshrouded style allowing easy integration with a broad range of mating female connectors like Dubox series receptacles and IDC crimp housings. Operating temperature range from -65°C to 125°C ensures suitability in environments with thermal fluctuations.
Additional features include solder termination type and through-hole mount style for secure PCB attachment. Stand-offs integrated within the housing allow removal of solder contamination enhancing solder joint integrity. The contacts feature duplex plating which is an economical solution maintaining performance quality. The product fully complies with international environmental standards including CHINA RoHS, EU RoHS, and REACH/SvHC regulations.
These pin headers can be custom cut to length providing versatility for various PCB configurations in communications, industrial automation, and electronic equipment applications. Supports 3A current and 1.5kV voltage ratings.
Housing made of thermoplastic compliant with high temperature soldering. Gold plated phosphor bronze contacts offer durability and conductivity. Through-hole mount with straight and unshrouded orientation. Operating temperature range from -65°C to 125°C ensures robust performance.
Cuttable design allows length customization for various applications. Compliant with CHINA RoHS, EU RoHS, and REACH standards.
EnvMart offers this precise and versatile PCB Header suitable for diverse electronic manufacturing and assembly needs. Explore more products in our Electronics Components PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This pin header supports a current rating of 3A.
It can withstand a maximum voltage of 1.5 kV.
The operating temperature range is from -65°C to 125°C.
The contacts are made of phosphor bronze and are gold plated for enhanced conductivity and corrosion resistance.
This model features 6 male contacts arranged in 2 rows.
It uses a through hole mount type, suitable for PCB assembly.
Yes, this pin header can be cut to custom lengths to suit different applications.
The pitch size is 2.54 mm.
The termination type is solder.
Yes, it complies with CHINA RoHS, EU RoHS, and REACH/SvHC regulations.
The tail pin length measures 2.41 mm.
It supports both Board-to-Board and Wire-to-Board connectivity.
