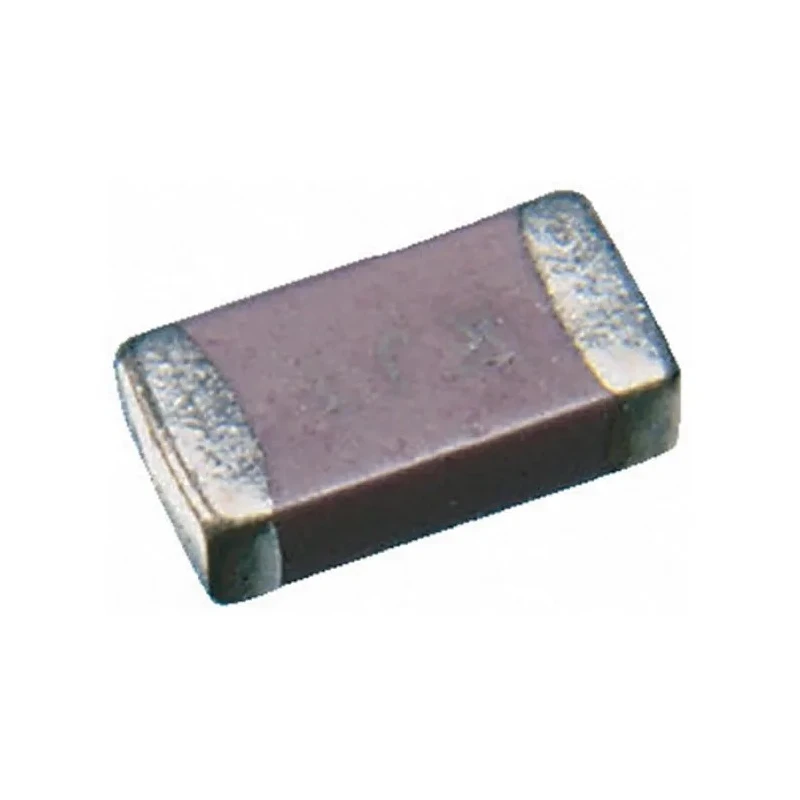

Yageo 10 nF 100V dc ±10% Multilayer Ceramic Capacitor Surface Mount X7R Dielectric 0805 Package CC0805KRX7R0BB103

The Yageo CC0805KRX7R0BB103 is a Multilayer Ceramic Capacitor designed for surface mounting applications, featuring a capacitance of 10 nF and a voltage rating of 100V dc. It employs an X7R dielectric material, offering stable capacitance over a wide temperature range from -55°C to 125°C. The capacitor's compact 0805 package size (2mm length, 1.25mm width, and 0.6mm height) facilitates high-density circuit board layouts.

This capacitor utilizes a stacked construction with nickel barrier terminations coated with plated tin, ensuring reliable solderability and long-term performance. It complies with RoHS directives and is classified as Class II suppression, making it suitable for decoupling and filtering functions in electronic circuits.

Common applications include personal computers, hard disk drives, game PCs, power supplies, LCD panels, ADSL modems, and other consumer and industrial electronic devices. The product is delivered on paper/PE tape reels suitable for automatic pick-and-place assembly lines.

Stable capacitance with X7R dielectric over operating temperatures. Compact 0805 footprint enabling space-saving designs. Lead-free terminations compatible with modern environmental standards. Wide temperature range from -55°C to 125°C suits various industrial environments.

RoHS compliant construction. Reliable surface mount packaging for industrial assembly. Ideal for decoupling and noise suppression in electronic circuits. Compatible with high-volume PCB manufacturing processes.

This Yageo capacitor exemplifies high-quality multilayer ceramic technology suitable for diverse electronic manufacturing and design requirements. Browse additional capacitors and multilayer ceramic products on EnvMart for comprehensive electronic component solutions.
